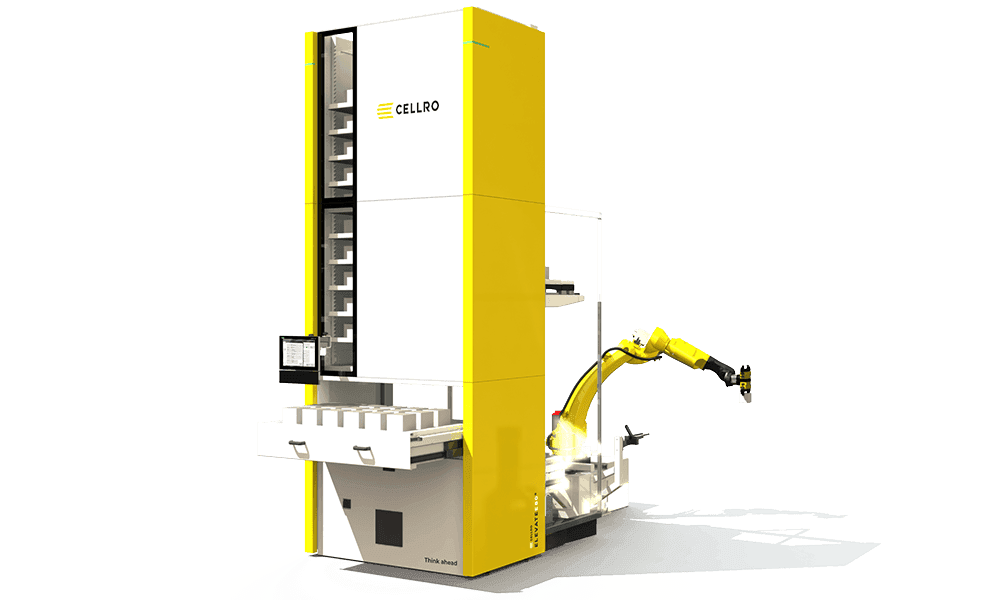

With a width of 2 meters, Elevate E110 is the absolute master of storing products in a very small floor space.
With C3 advanced software, the overview is maintained and the library for applicable hardware can be further expanded.

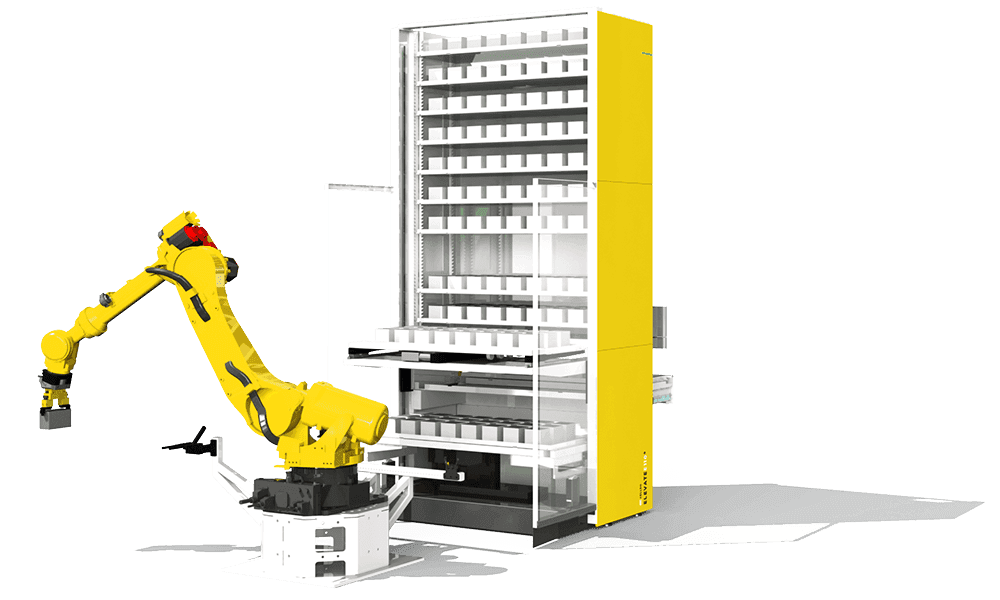

With a height of three and four meters, Elevate is good for an impressive storage capacity, up to 28 trays of products. This amounts to a staggering 24 m2 of storage capacity. And yet the entire system occupies no more than 2.8 m2 to 5 m2 of floor space, depending on the frame and robot chosen.
But Elevate is more than a lot of storage capacity. Because the complete logistics for the products to be processed are present in Elevate, autonomy but, above all, efficient production is 100% guaranteed. The system constantly generates feedback for jobs to be made today but also in the future. The ability to have jobs of tomorrow already facilitated by Elevate makes the logistical challenge on the shop floor planable. Customers with their own product also have a new opportunity with Elevate. Instead of producing ahead and filling up the warehouse, production can now be done on demand.
Max. Storage Capacity
25 m2
Max. Handling Weight
165 kg
System dimensions
2.000x4.000 mm (BxH)
Tray dimensions
1.600x550 mm (0,88 m2)
Processing weight trays
300 kg
Max. Speed of tray transport
0,4 m/sec.
Height per tray position
30 mm
Min. height required in storage per tray
90 mm
Max. product height
300 mm
Max. number of trays on a 90 mm pitch
27
Floor space with Robot 20/35
2.000x4.100 mm = 8,2 m2
Floor space with Robot 50/70
2.000x4.200 mm = 8,4 m2
Loading height
1.070 mm
Effective height of tray storage
2.530 mm
Software
C3 Advanced
Screen operating height
1.500 mm
