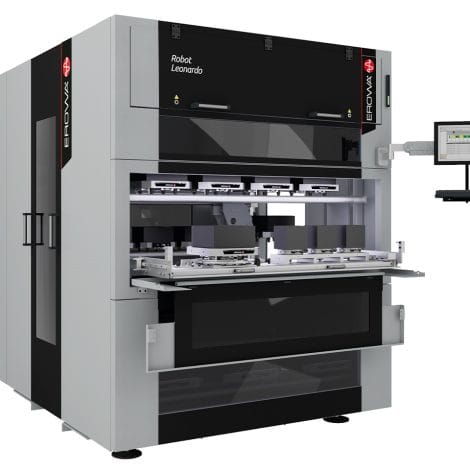

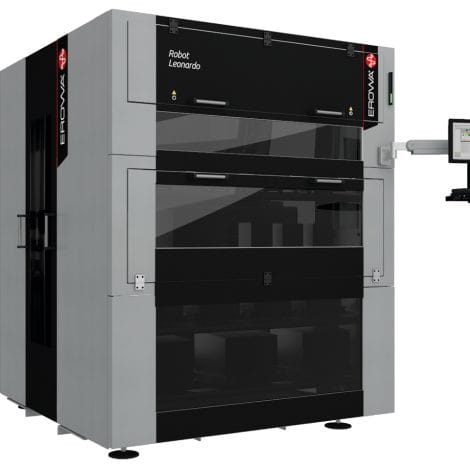

Leonardo Easy operation and robust functionality

  • Compact design
  • Long travel range
  • Loading station included
  • User-friendly loading station
  • Flexible magazine configuration
  • All important data at a glance
Request a Quote

For milling machines, the “Leonardo Pallet Loader” in combination with the EROWA workpiece palletizing systems is the productive and optimally managed automation solution for loading the machine.

Technical Data

Transfer weight

120 kg

Pallet changing time

< 65 s

Gripper change

optional

Magazine capacity max.

4000 kg

Two-machine operation

left and right (optional)

X travel

Standard 1565 mm (UPC 320) / High 1565 mm

Z travel

1245 mm (UPC 320) / High 3600 mm

Rotational axis horizontal

+/- 90°

Standard Dimensions (lxwxh)

1910 x 1822 x 2420 mm (UPC 320)

HOCH Dimensions (lxwxh)

1910 x 1822 x 4868 mm (UPC 320)

Empty weight

Standard 2000 kg / High 2400 kg

Download Datasheet Request a Quote
