Robot Compact 80 High performance on little space

Robot Compact 80
  • One production cell with two machines and one EROWA Robot Compact 80 requires only little space:
  • 80kg transfer weight

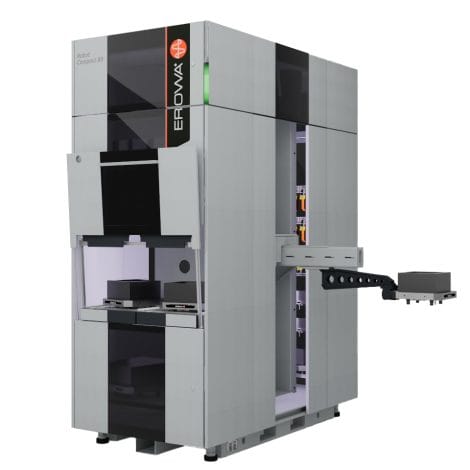

  • Lifted pneumatically and can be shifted out of the way on a rail system, which frees up access to the machine.

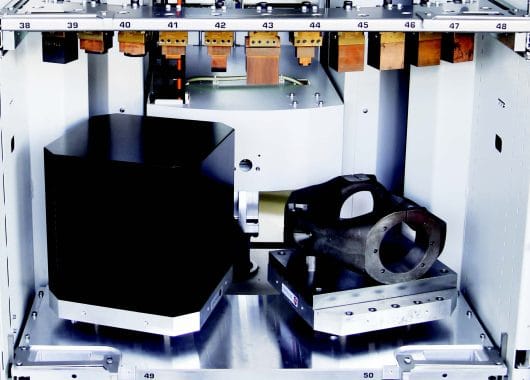

  • Up to 11 different EROWA pallet sizes for varying workpiece sizes.
  • Integrated loading station (option) makes it easy for big and heavy workpieces to be positioned in the magazine at an ergonomically correct height.
  • Extendable magazine levels allow for a comfortable loading/unloading process
Request a Quote

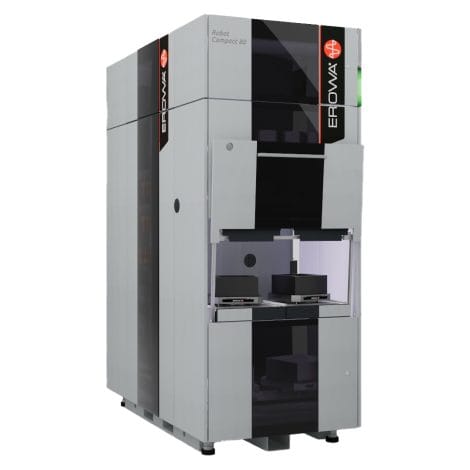

The EROWA Robot Compact 80 provides the optimal ratio between a large number of magazine positions and a small amount of floor space.

The tall and lean design of the Robot is suitable for optimal floor space use in the workshop. With a transfer weight capacity of up to 80kg, it can serve one or two machine tools.

Technical Data

Transfer weight

80 kg

Swivel arm

Yes

Gripper change

Yes

Weight per level

up to 180 kg

Weight per rack magazine

1,000 kg

Two-machine operation

Yes

X-axis travel

1,380 mm

Z-axis travel

1,680 mm

Swivel range

350°

System size LxWxH mm

2,014x1,069x2,612

Two integrated magazines

max. 12 levels per magazine

Third magazine (option)

max. 12 levels

Loading station UPC/PC210 (option)

Yes

Pass-through magazine for ITS Compact/50/72 hanging

Yes

Automatic pallet recognition

Yes / EWIS™

Process control system interface

Yes

View Datasheet Request a Quote

Video

Robot Compact 80
