Sliding Head Lathes

Goodway Sliding Head Lathes are advanced turning machines specifically designed for high-precision, high-speed machining of small, intricate parts, making them ideal for industries like medical, aerospace, and electronics manufacturing. These machines feature a unique sliding headstock design, which allows the workpiece to move axially while the tooling remains stationary, enabling precise cuts even on long, thin components with minimal deflection.

Equipped with multi-axis capabilities and sophisticated CNC controls, Goodway Sliding Head Lathes can perform complex operations in a single setup, significantly reducing cycle times and boosting productivity. Known for delivering tight tolerances and excellent surface finishes, these lathes provide the reliability and efficiency needed for producing high-quality, intricate components.
SW-32II
SW-32II

SW - 20II Series

Max. machining diameter
Ø 20 mm
Max. turning length per chuck
220 mm (Bush) / 50 mm (Bushless)
Sub Spindle speed range
10,000 rpm
Sub Spindle Motor output ( cont. / 15 min. )
2.2 / 3.7 kW
View SW - 20II Series

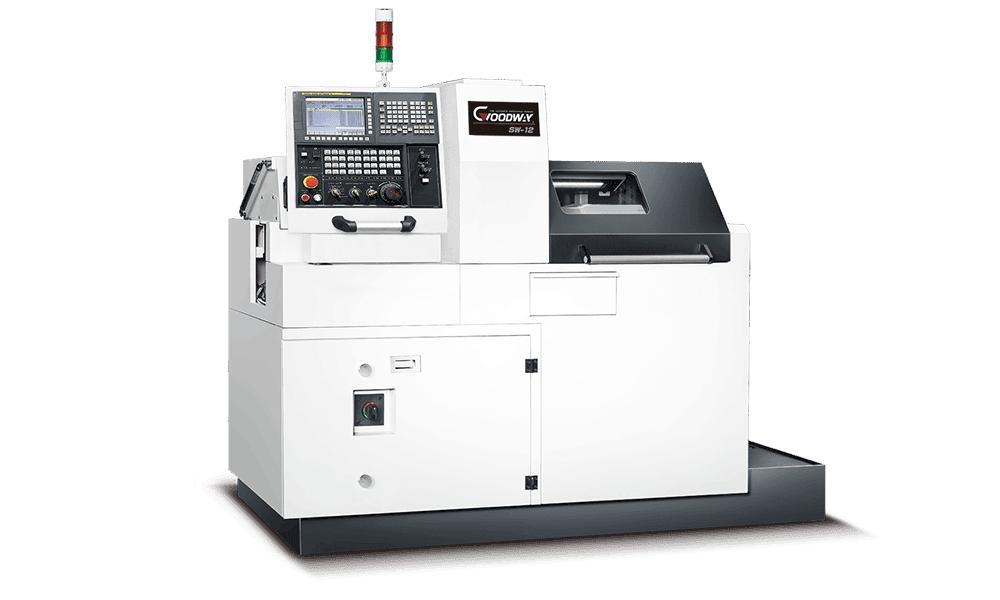

SW-12

SW-12

Max Machining Diameter
Ø 20 mm
Max Turning Length Per Chuck
140mm (bush) / 30 mm (bushless)
Rear-end max. length for front ejection
80 mm
Main spindle
10,000 rpm (Opt. 12,000 / 15,000 rpm)
View SW-12
Placeholder

SW-20

Max Machining Diameter
Ø 20 mm
Max Turning Length Per Chuck
220mm (bush) / 50 mm (bushless)
Rear-end max. length for front ejection
80 mm
Main spindle
10,000 rpm
View SW-20
Placeholder

SW-32

Max Machining Diameter
Ø 32 mm
Max Turning Length Per Chuck
315mm (bush) / 80 mm (bushless)
Rear-end max. length for front ejection
130 mm
Main spindle
7,000 rpm
View SW-32

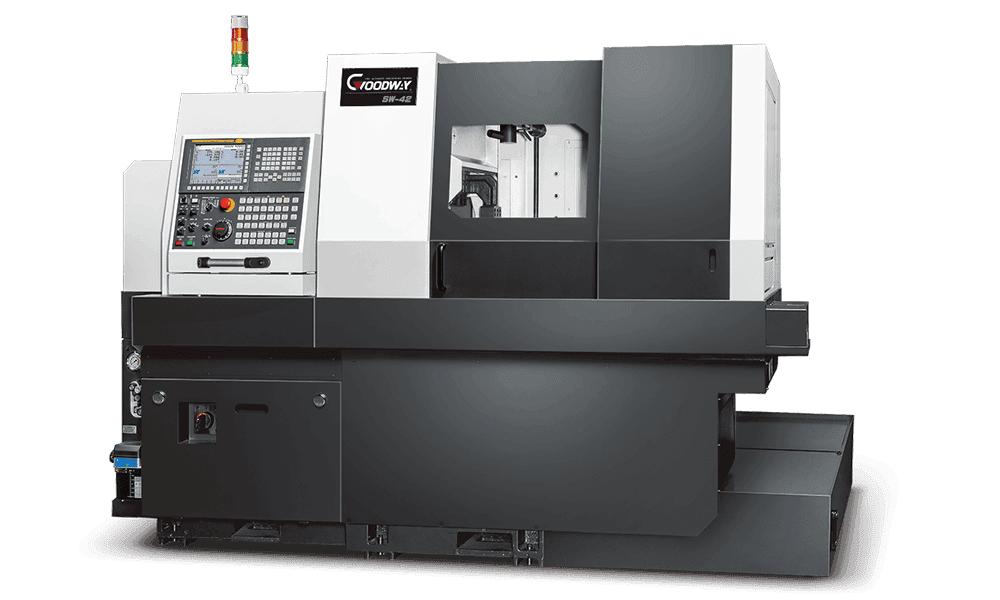

SW-42

SW-42

Max Machining Diameter
Ø 42 mm
Max Turning Length Per Chuck
180mm (bush) / 110 mm (bushless)
Rear-end max. length for front ejection
110 mm
Main spindle
6,000 rpm
View SW-42
