Forte Range

Hedelius Acura, Tiltenta & Forte machine sales, support, training & maintenance UK & Europe HEDELIUS sets trendsetting standards in vertical machining with the high-performance machining centres of the FORTE series.

Their compact design, the large Z-travel and the optimised chip fall are logical further developments in relation to previous machines and increase the area of operation and efficiency of the FORTE series. The newly designed workspace with vertical slatted covers and workspace encapsulation as standard further reduce the effort required for cleaning and maintenance. On the one hand, the cutting-edge moving column design enables machining of long workpieces and large one-off items while, on the other hand, from the FORTE 7-2600 upwards the workspace can be divided for series production in pendulum mode. Clamping and setup parallel to machining virtually eliminates unproductive downtimes and significantly increases your competitiveness.

F11 2600
Hedelius F65 S1320

FORTE 65 Single 1320

X-, Y-, Z-travel
1320 x 650 x 600 mm
Speed range
14000/15000/18000/24000
Spindle power
22.00/29.00/30.00/35.00/50.00 kW
Number of tools
65/245/329 (max.)
View FORTE 65 Single 1320
Hedelius F65

FORTE 65 Single 1320 EL

X-, Y-, Z-travel
1320 x 650 x 600 mm
Speed range
14000/15000/18000/24000
Spindle power
22.00/29.00/30.00/35.00/50.00 kW
Number of tools
65/245/329 (max.)
View FORTE 65 Single 1320 EL
Hedelius F85

FORTE 85 Single 1620

X-, Y-, Z-travel
1620 x 850 x 700 mm
Speed range
14000/15000/18000/24000
Spindle power
22.00/30.00/35.00/37.00/50.00 kW
Number of tools
80/260/344 (max.)
View FORTE 85 Single 1620
F7 2000 NEO

FORTE 7-2000 NEO

X-, Y-, Z-travel
2000 x 700 x 800 mm
Speed range
14000/18000
Spindle power
22.00/29.00/35.00 kW
Number of tools
45/225/309 (max.)
View FORTE 7-2000 NEO
F7 2600 NEO

FORTE 7-2600 NEO

X-, Y-, Z-travel
2600 x 700 x 800 mm
Shuttle operation
1300/840 mm
Speed range
14000/18000
Spindle power
22.00/29.00/35.00 kW
View FORTE 7-2600 NEO

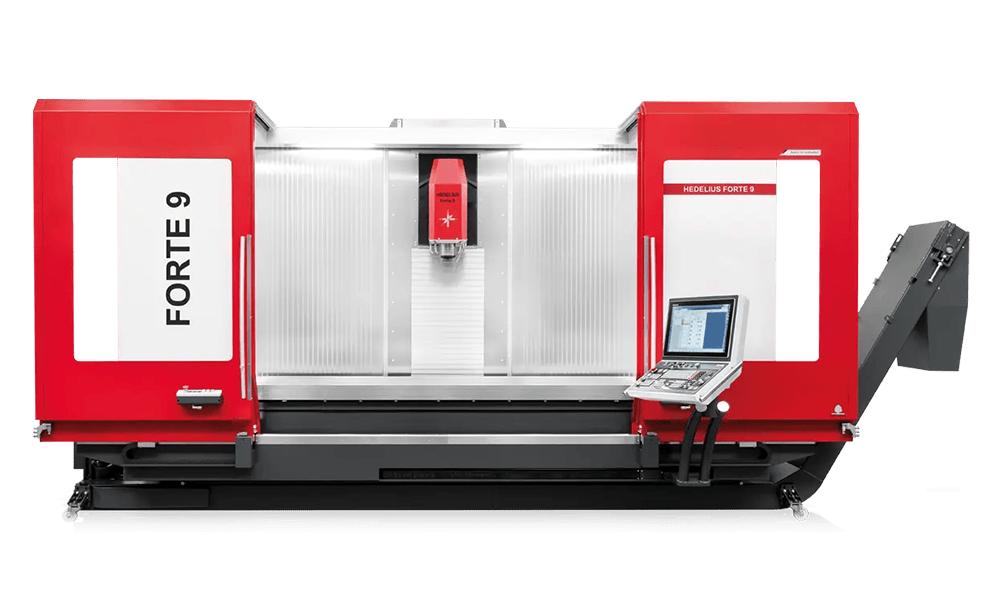

F9 2600

FORTE 9-2600

X-, Y-, Z-travel
2600 x 900 x 1005 mm
Speed range
14000/15000/18000
Spindle power
22.00/35.00/37.00/50.00 kW
Number of tools
60/240/324 (max.)
View FORTE 9-2600

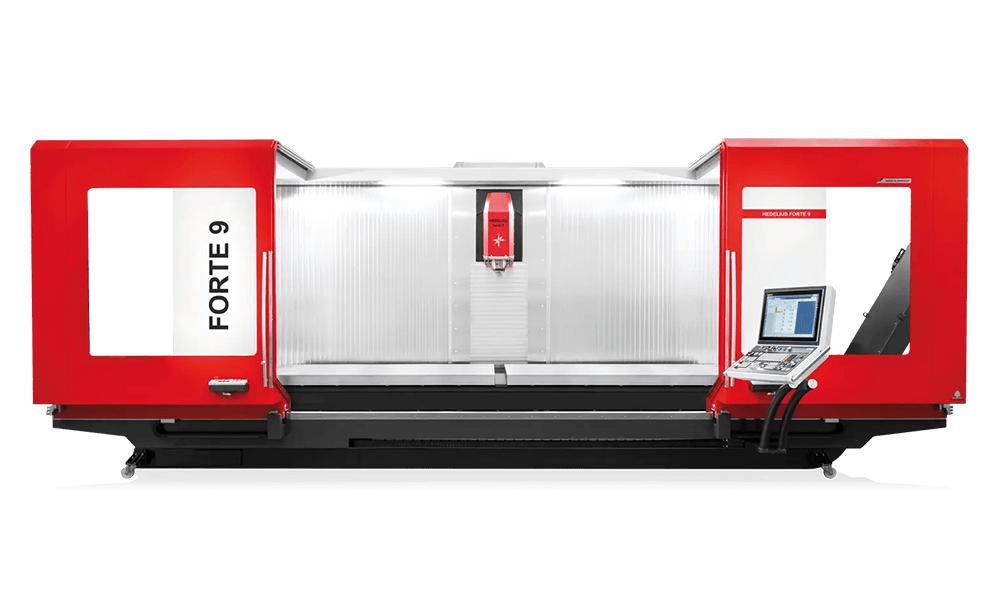

F9 3600

FORTE 9-3600

X-, Y-, Z-travel
3600 x 900 x 1005 mm
Shuttle operation
2 x 1525 mm
Speed range
14000/15000/18000
Spindle power
22.00/35.00/37.00/50.00 kW
View FORTE 9-3600

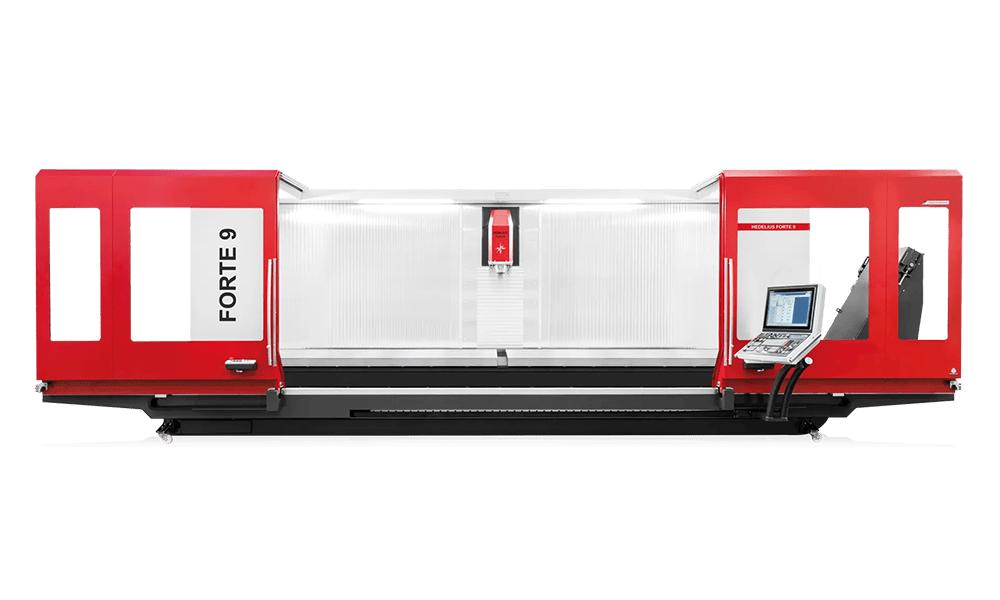

F9 4600

FORTE 9-4600

X-, Y-, Z-travel
4600 x 900 x 1005 mm
Shuttle operation
2 x 2025 mm
Speed range
14000/15000/18000
Spindle power
22.00/35.00/37.00/50.00 kW
View FORTE 9-4600

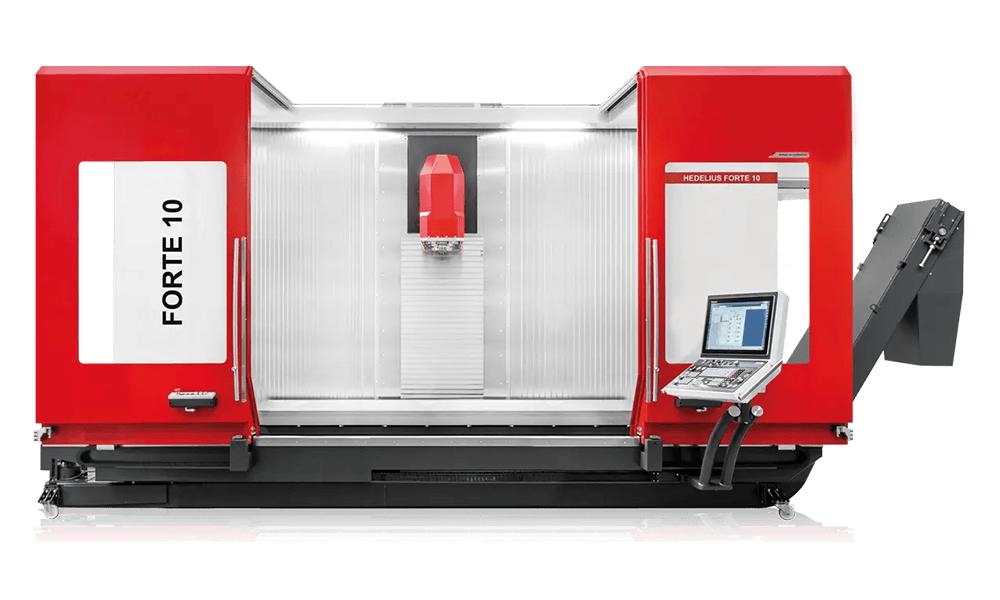

F10 2600

FORTE 10-2600

X-, Y-, Z-travel
2600 x 1000 x 1165 mm
Shuttle operation
2 x 965 mm
Speed range
8000/12000
Spindle power
50.00 kW
View FORTE 10-2600
F10 3600

FORTE 10-3600

X-, Y-, Z-travel
3600 x 1000 x 1165 mm
Shuttle operation
2 x 1465 mm
Speed range
8000/12000
Spindle power
50.00 kW
View FORTE 10-3600

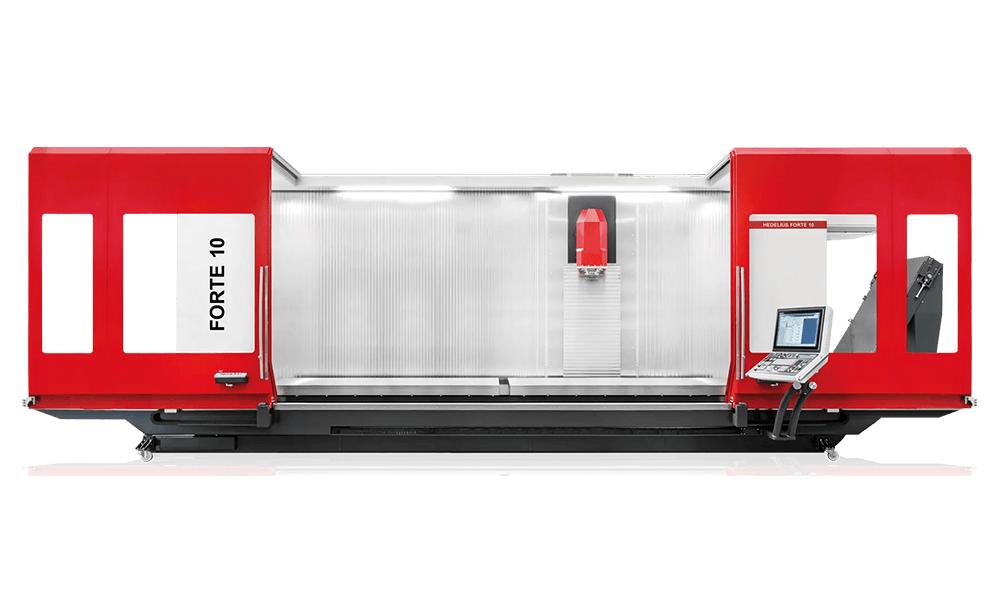

F10 4600

FORTE 10-4600

X-, Y-, Z-travel
4600 x 1000 x 1165 mm
Shuttle operation
2 x 1965 mm
Speed range
8000/12000
Spindle power
50.00 kW
View FORTE 10-4600

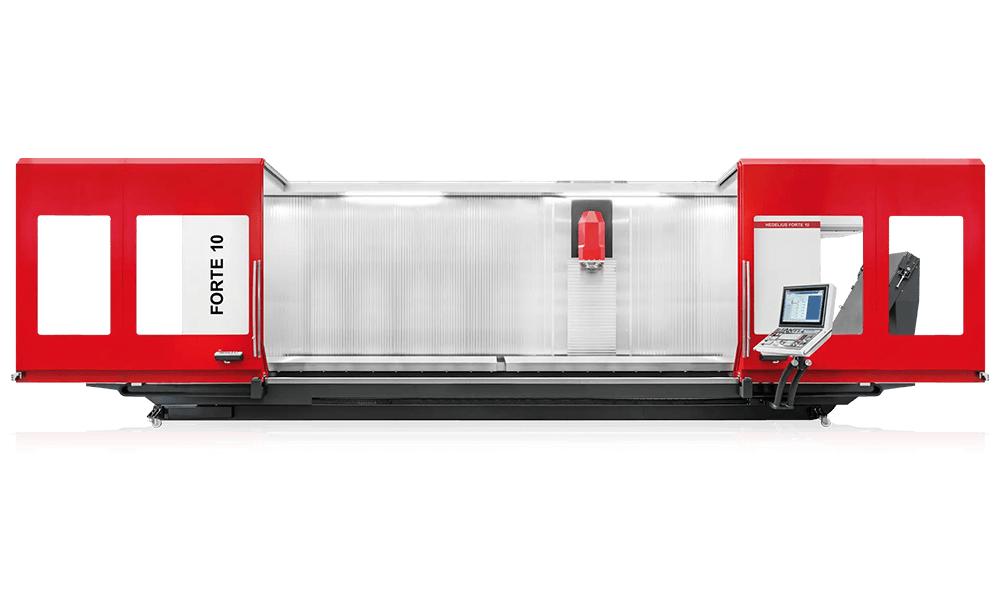

F10 6200

FORTE 10-6200

X-, Y-, Z-travel
6200 x 1000 x 1165 mm
Shuttle operation
2 x 2765 mm
Speed range
8000/12000
Spindle power
50.00 kW
View FORTE 10-6200
F11 2600

FORTE 11-2600

X-, Y-, Z-travel
2600 x 1100 x 1005 mm
Speed range
14000/15000/18000
Spindle power
22.00/35.00/37.00/50.00 kW
Number of tools
65/245/329 (max.)
View FORTE 11-2600

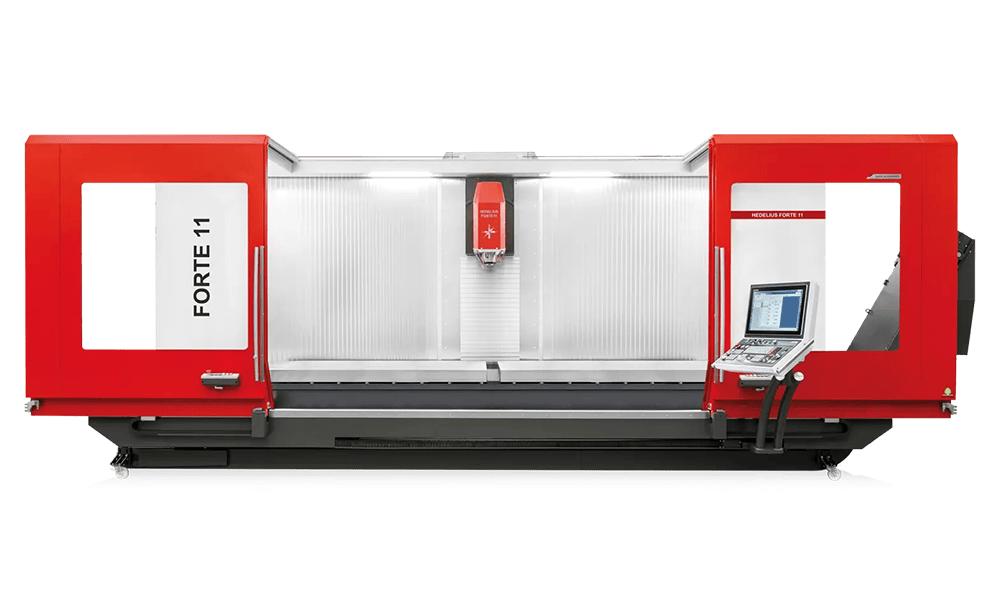

F11 3600

FORTE 11-3600

X-, Y-, Z-travel
3600 x 1100 x 1005 mm
Speed range
14000/15000/18000
Spindle power
22.00/35.00/37.00/50.00 kW
Number of tools
65/245/329 (max.)
View FORTE 11-3600

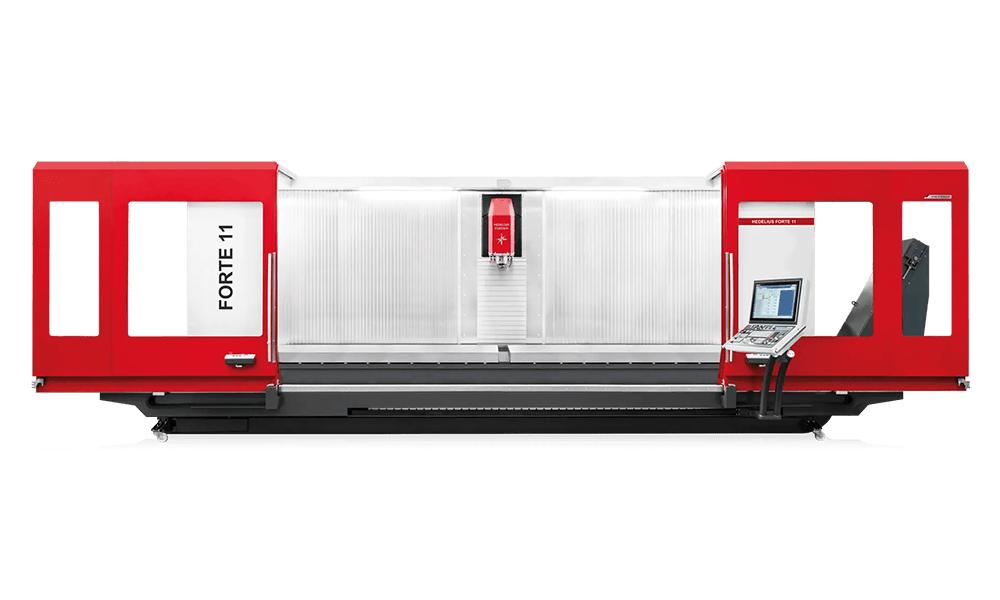

F11 4600

FORTE 11-4600

X-, Y-, Z-travel
4600 x 1100 x 1005 mm
Speed range
14000/15000/18000
Spindle power
22.00/35.00/37.00/50.00 kW
Number of tools
65/245/329 (max.)
View FORTE 11-4600
