Acura Range

Hedelius Acura, Tiltenta & Forte machine sales, support, training & maintenance UK & Europe The ACURA range was developed to enable 5-axis machining of complex workpieces not only with high precision but also quickly and reliably. The advanced moving column design delivers impressive results in high productivity parts manufacturing and equally during high-performance cutting. The ACURA design with constant vertical axis eliminates the drawbacks of many conventional machining centres and ensures improved accuracy and higher cutting performance.

An ACURA machine can be integrated in almost any manufacturing company due to its slim design. A large sliding door and low machine bed height provide the operator with perfect access to the rotary/tilt table. This makes it easier to set up and check the cutting process during one-off and small-lot production. The stainless steel cover and vertical enclosure in the workspace ensure ideal chip fall and reduce cleaning effort. There is unrestricted access for loading by crane.

A65EL
A50

ACURA 50

X-, Y-, Z-travel
500 x 550/370 x 550 mm
Swivel range
+30° – -115°
Speed range
14000/18000/24000
Spindle power
22,00/29,00/30,00/35,00 kW
View ACURA 50
A50EL

ACURA 50 EL

X-, Y-, Z-travel
500 x 550/370 x 550 mm
Swivel range
+30° – -115°
Speed range
14000/18000/24000
Spindle power
22,00/29,00/30,00/35,00 kW
View ACURA 50 EL

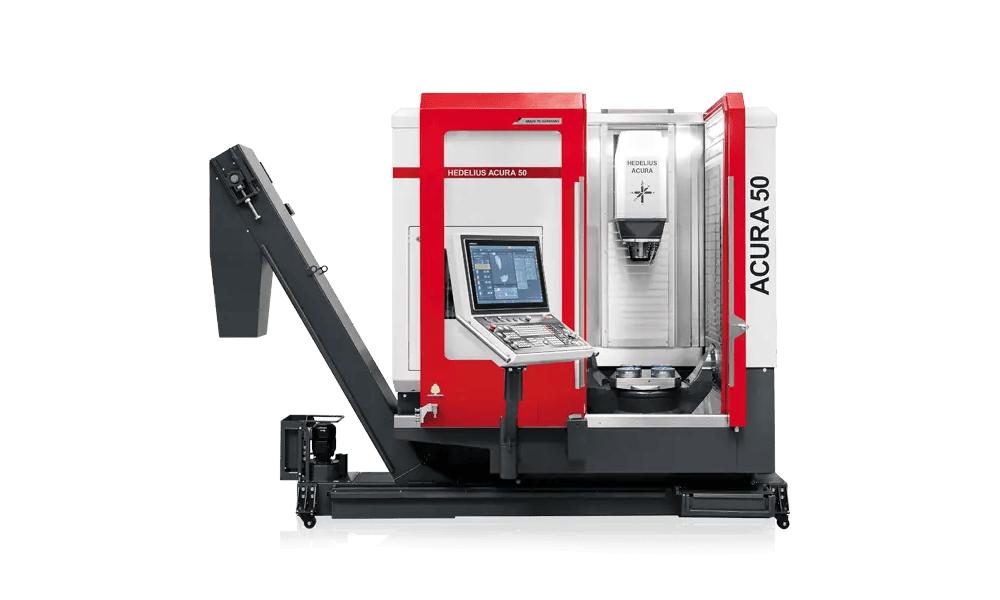

A50M

ACURA 50 MARATHON

Interface for
MARATHON RZ430 / PL406
Pallet clamping surface
400x400 mm
Pallet clamping weight
90 / 350 kg
X-, Y-, Z-travel
500 x 550/370 x 550 mm
View ACURA 50 MARATHON

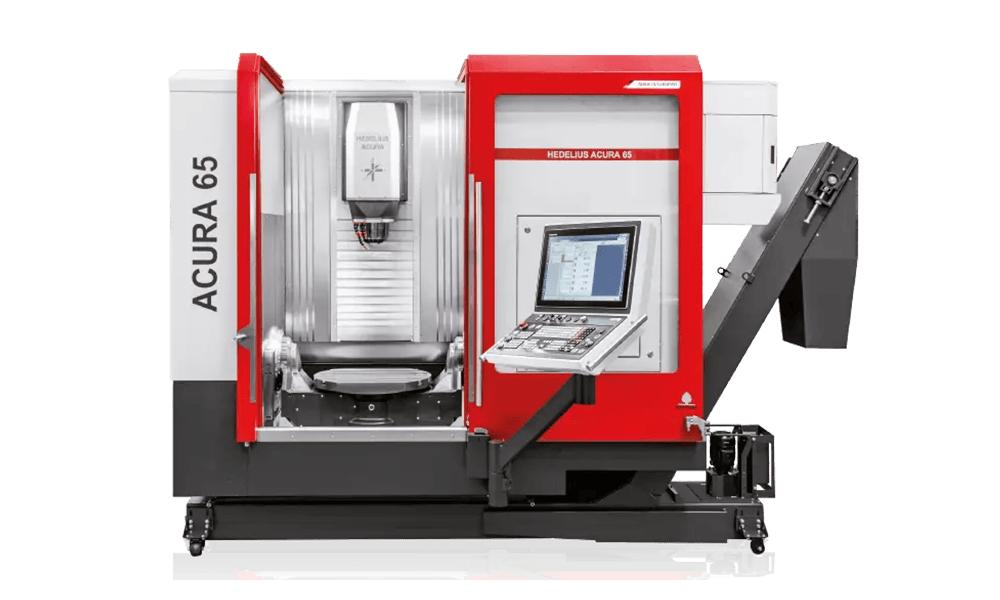

A65

ACURA 65

X-, Y-, Z-travel
700 x 650/465 x 600 mm
Swivel range
+30° – -115°
Speed range
14000/15000/18000/24000
Spindle power
22,00/29,00/30,00/35,00/50,00 kW
View ACURA 65
A65EL

ACURA 65 EL

X-, Y-, Z-travel
700 x 650/465 x 600 mm
Swivel range
+30° – -115°
Speed range
14000/15000/18000/24000
Spindle power
22,00/29,00/30,00/35,00/50,00 kW
View ACURA 65 EL
A65M

ACURA 65 MARATHON

Interface for
MARATHON RZ430 / SR422 / PL406
Pallet clamping surface
400x400/400x500 mm
Pallet clamping weight
90 / 250 / 350 kg
X-, Y-, Z-travel
700 x 650/379 x 600 mm
View ACURA 65 MARATHON
A85 TNC7

ACURA 85

X-, Y-, Z-travel
900 x 850/600 x 700 mm
Swivel range
+30° – -115°
Speed range
14000/15000/18000/24000
Spindle power
22.00/30.00/35.00/37.00/50.00 kW
View ACURA 85
A85EL TNC7

ACURA 85 EL

X-, Y-, Z-travel
900 x 850/600 x 700 mm
Swivel range
+30° – -115°
Speed range
14000/15000/18000/24000
Spindle power
22.00/30.00/35.00/37.00/50.00 kW
View ACURA 85 EL
A85M TNC7

ACURA 85 MARATHON

Interface for
MARATHON PL406 / SR518
Pallet clamping surface
400x400/400x500/500x500 mm
Pallet clamping weight
350 / 435 kg
X-, Y-, Z-travel
900 x 850/600 x 700 mm
View ACURA 85 MARATHON
