Tiltenta Range

Hedelius Acura, Tiltenta & Forte machine sales, support, training & maintenance UK & Europe The high-performance machining centres in the TILTENTA range perform all sorts of machining tasks in the areas of mechanical engineering, tool and mould construction, shaft and roll machining, and the aerospace industry. The large work area with infinitely variable, pivotable main spindle allows for the vertical machining of long workpieces weighing up to 6,000 kg. Moreover, the integrated NC rotary table and a workspace partition also offer precise 5-side machining of parts weighing up to 1,800 kg in pendulum mode. The machining centres are notable for their vertical stainless steel covers, allowing optimal chip removal and the full encapsulation of the working area as standard.
T9 2600 1R

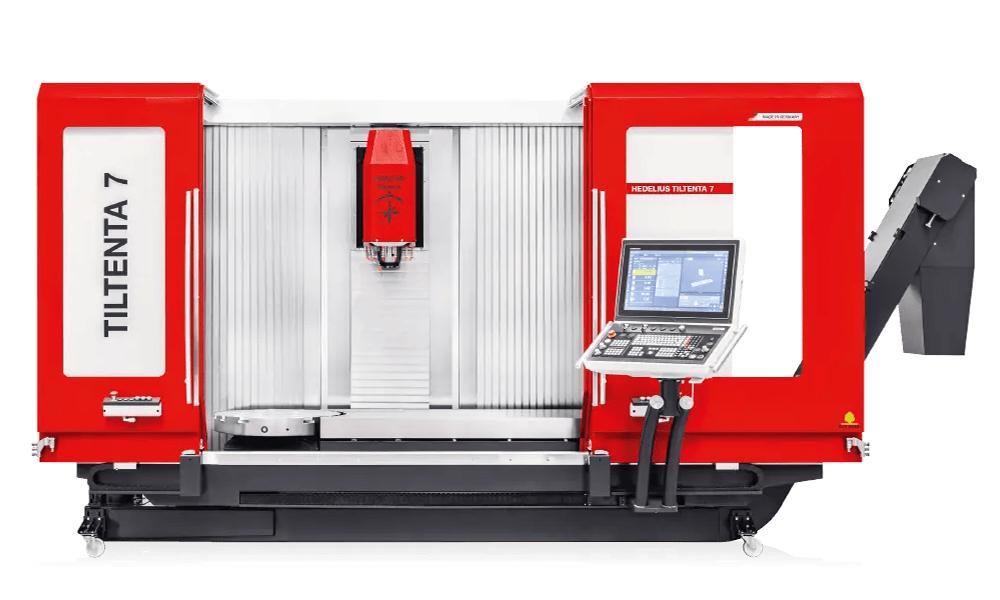

T7 2000 NEO 1R

TILTENTA 7-2000 NEO

X-, Y-, Z-travel
2000/1430 x 700 x 735/800 mm
Swivel range
-5° – +98°/-98° – +98°
Speed range
14000/18000
Spindle power
22.00/29.00/35.00 kW
View TILTENTA 7-2000 NEO

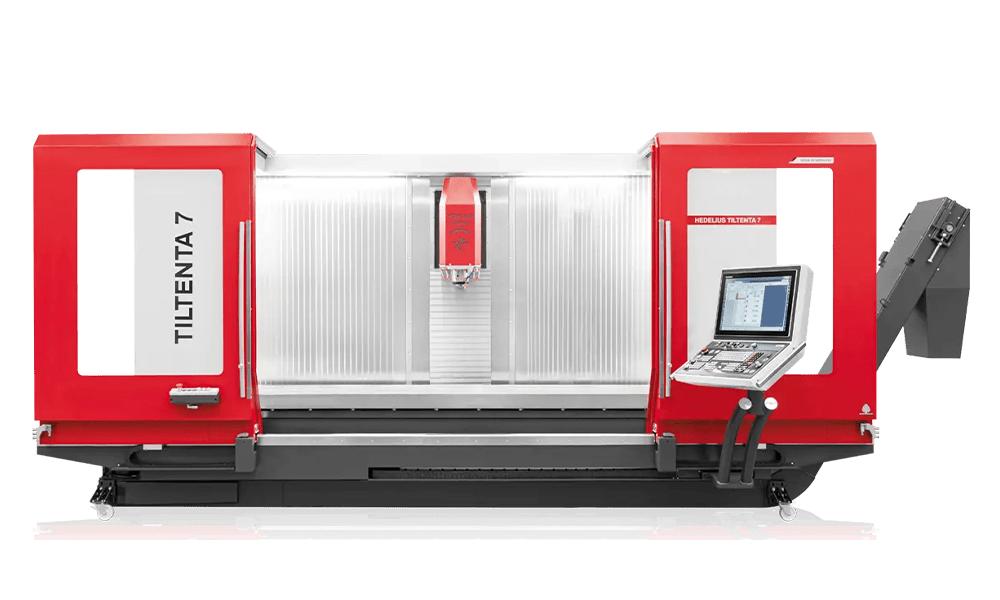

T7 2600 NEO 0R

TILTENTA 7-2600 NEO

X-, Y-, Z-travel
2600/2030 x 700 x 695/800 mm
Shuttle operation
1300/840 mm
Swivel range
-5° – +98°/-98° – +98°
Speed range
14000/18000
View TILTENTA 7-2600 NEO

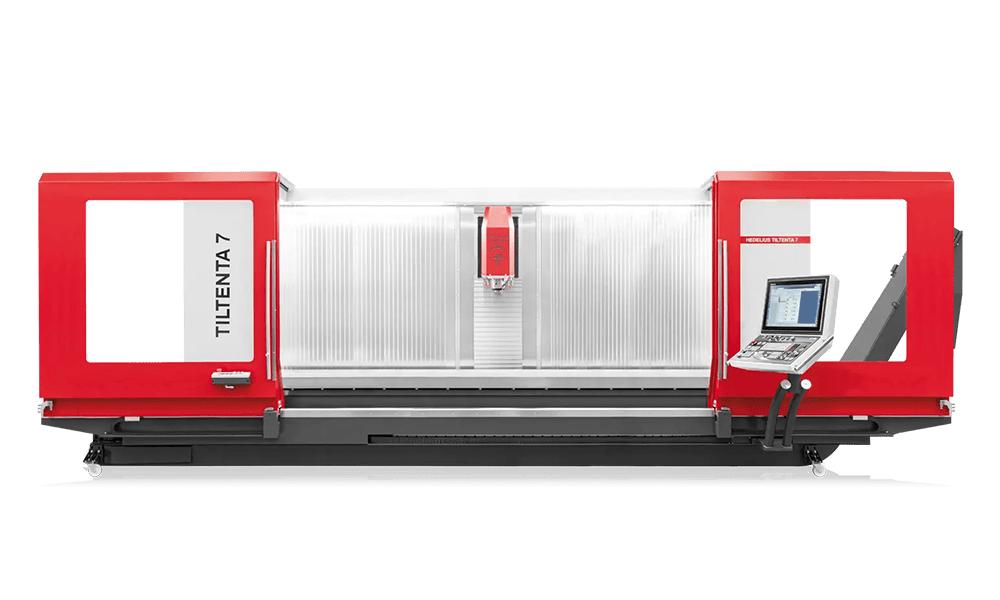

T7 3600 NEO 0R

TILTENTA 7-3600 NEO

X-, Y-, Z-travel
3600/3030 x 700 x 695/800 mm
Shuttle operation
1800/1340 mm
Swivel range
-5° – +98°/-98° – +98°
Speed range
14000/18000
View TILTENTA 7-3600 NEO
T9 2600 1R

TILTENTA 9-2600

X-, Y-, Z-travel
2600/2030 x 900 x 900/1005 mm
Swivel range
-5° – +98°/-98° – +98°
Speed range
14000/15000/18000
Spindle power
22.00/35.00/37.00/50.00 kW
View TILTENTA 9-2600
T9 3600 1R

TILTENTA 9-3600

X-, Y-, Z-travel
3600/3030 x 900 x 900/1005 mm
Shuttle operation
2 x 1525 mm
Swivel range
-5° – +98°/-98° – +98°
Speed range
14000/15000/18000
View TILTENTA 9-3600
T9 4600 0R TNC7

TILTENTA 9-4600

X-, Y-, Z-travel
4600/4030 x 900 x 900/1005 mm
Shuttle operation
2 x 2025 mm
Swivel range
-5° – +98°/-98° – +98°
Speed range
14000/15000/18000
View TILTENTA 9-4600

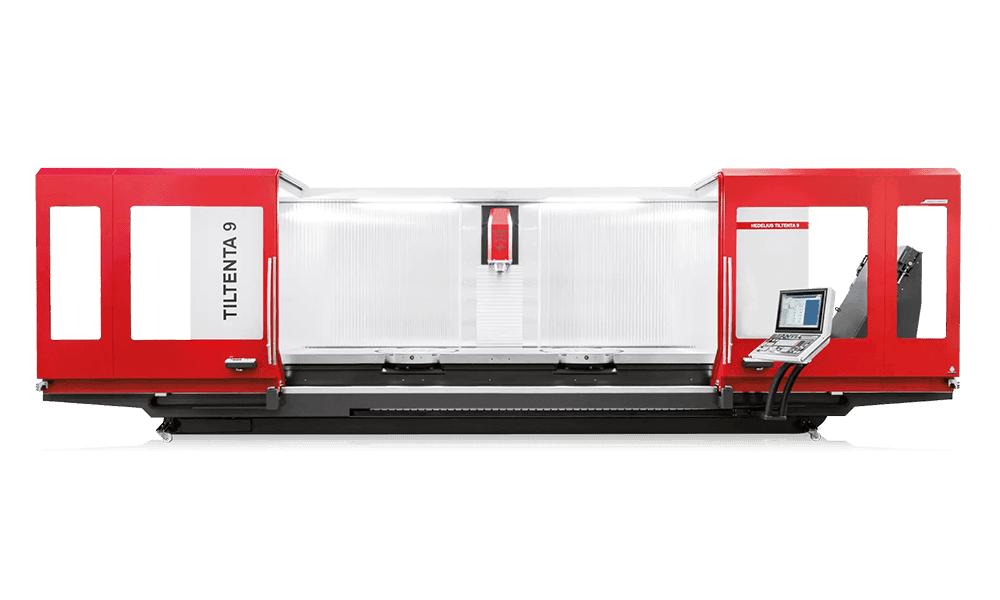

T9 4600 2R TNC7

TILTENTA 9-4600 2R

X-, Y-, Z-travel
4600/4030 x 900 x 900/1005 mm
Shuttle operation
2 x 2025 mm
Swivel range
-5° – +98°/-98° – +98°
Speed range
14000/15000/18000
View TILTENTA 9-4600 2R

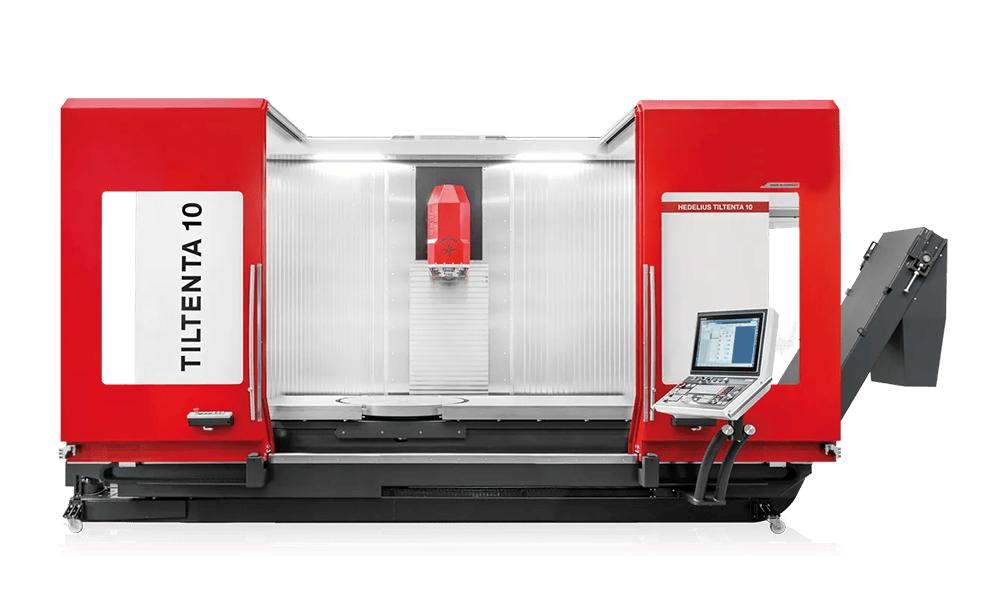

T10 2600 1R

TILTENTA 10-2600

X-, Y-, Z-travel
2600/1760 x 1000 x 1000/1165 mm
Swivel range
-5° – +98°/-98° – +98°
Speed range
8000/12000
Spindle power
50.00 kW
View TILTENTA 10-2600

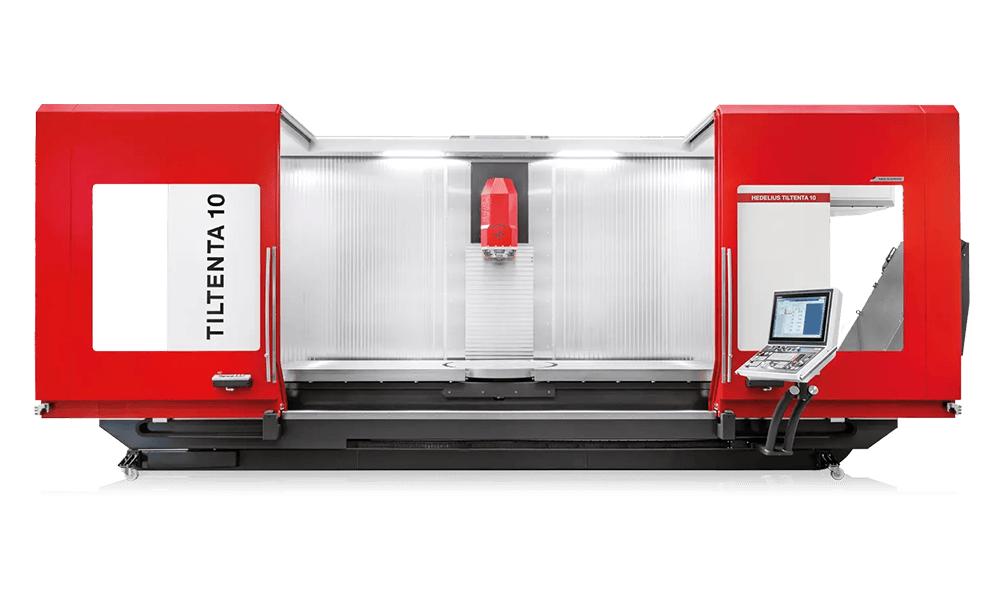

T10 3600 1R

TILTENTA 10-3600

X-, Y-, Z-travel
3600/2760 x 1000 x 1000/1165 mm
Swivel range
-5° – +98°/-98° – +98°
Speed range
8000/12000
Spindle power
50.00 kW
View TILTENTA 10-3600
T10 4600 0R

TILTENTA 10-4600

X-, Y-, Z-travel
4600/3760 x 1000 x 1000/1165 mm
Swivel range
-5° – +98°/-98° – +98°
Speed range
8000/12000
Spindle power
50.00 kW
View TILTENTA 10-4600

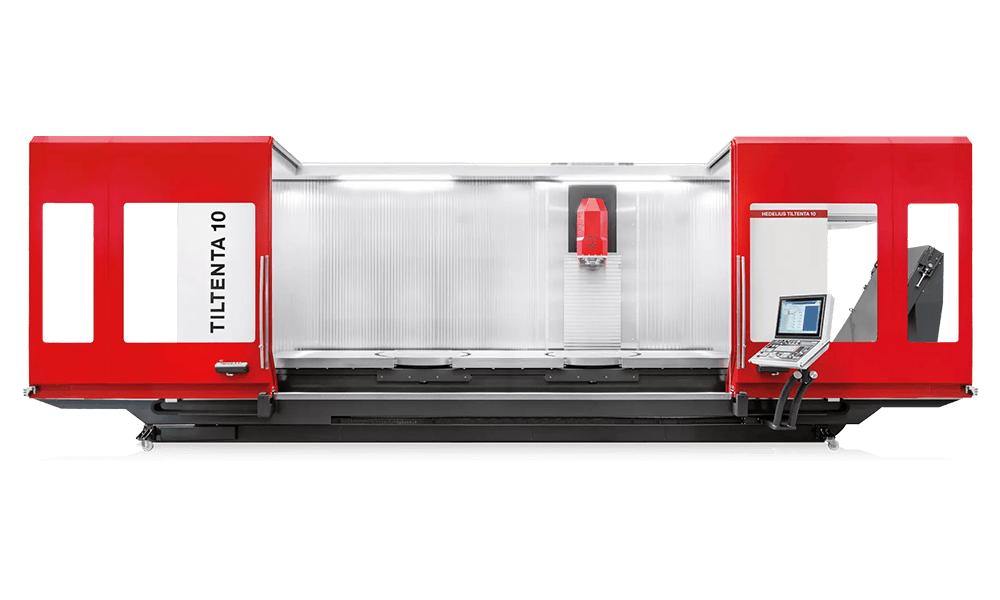

T10 4600 2R

TILTENTA 10-4600 2R

X-, Y-, Z-travel
4600/3760 x 1000 x 1000/1165 mm
Swivel range
-5° – +98°/-98° – +98°
Speed range
8000/12000
Spindle power
50.00 kW
View TILTENTA 10-4600 2R
T10 6200 1R

TILTENTA 10-6200

X-, Y-, Z-travel
6200/5360 x 1000 x 1000/1165 mm
Shuttle operation
2 x 2765 mm
Swivel range
-5° – +98°/-98° – +98°
Speed range
8000/12000
View TILTENTA 10-6200

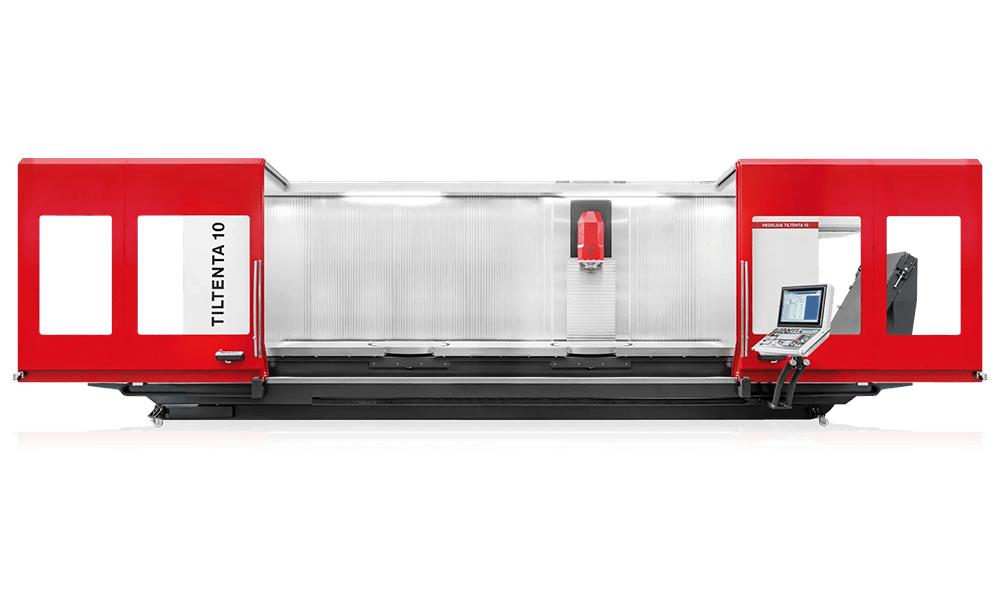

T10 6200 2R

TILTENTA 10-6200 2R

X-, Y-, Z-travel
6200/5360 x 1000 x 1000/1165 mm
Shuttle operation
2 x 2765 mm
Swivel range
-5° – +98°/-98° – +98°
Speed range
8000/12000
View TILTENTA 10-6200 2R

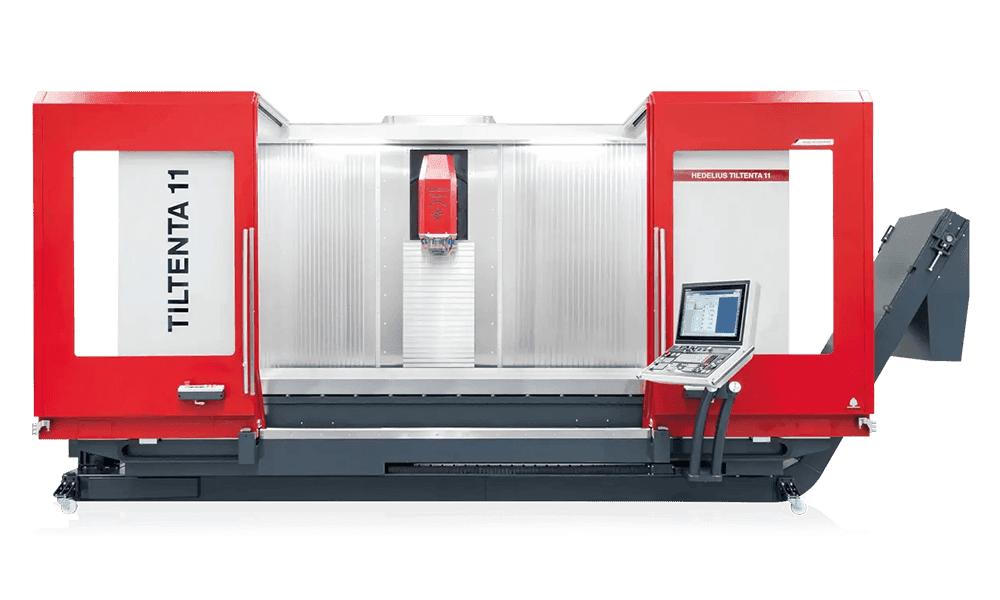

T11 2600 0R

TILTENTA 11-2600

X-, Y-, Z-travel
2600/2030 x 1100 x 900/1005 mm
Swivel range
-5° – +98°/-98° – +98°
Speed range
14000/15000/18000
Spindle power
22.00/35.00/37.00/50.00 kW
View TILTENTA 11-2600

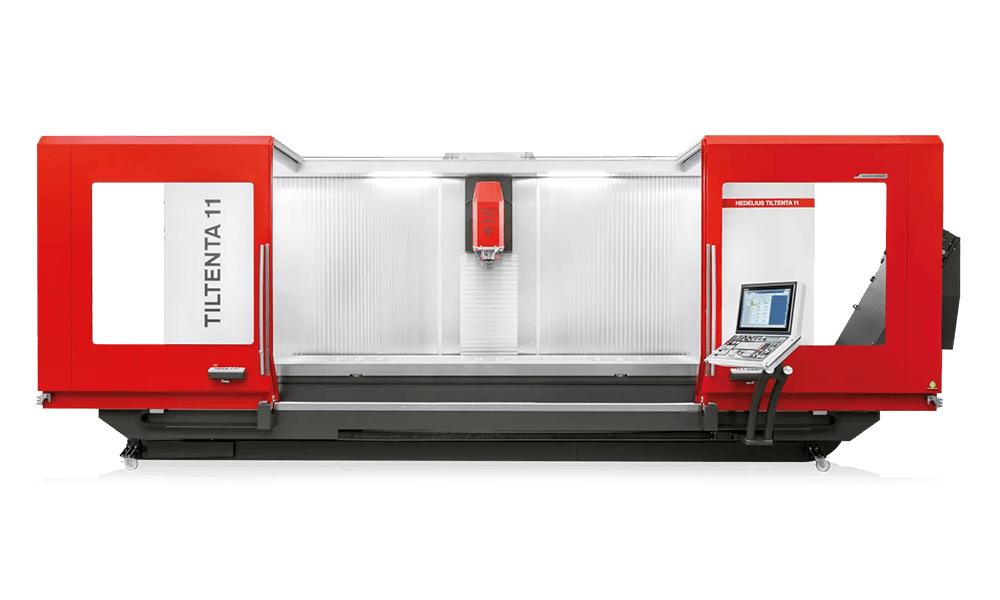

T11 3600 0R

TILTENTA 11-3600

X-, Y-, Z-travel
3600/3030 x 1100 x 900/1005 mm
Swivel range
-5° – +98°/-98° – +98°
Speed range
14000/15000/18000
Spindle power
22.00/35.00/37.00/50.00 kW
View TILTENTA 11-3600

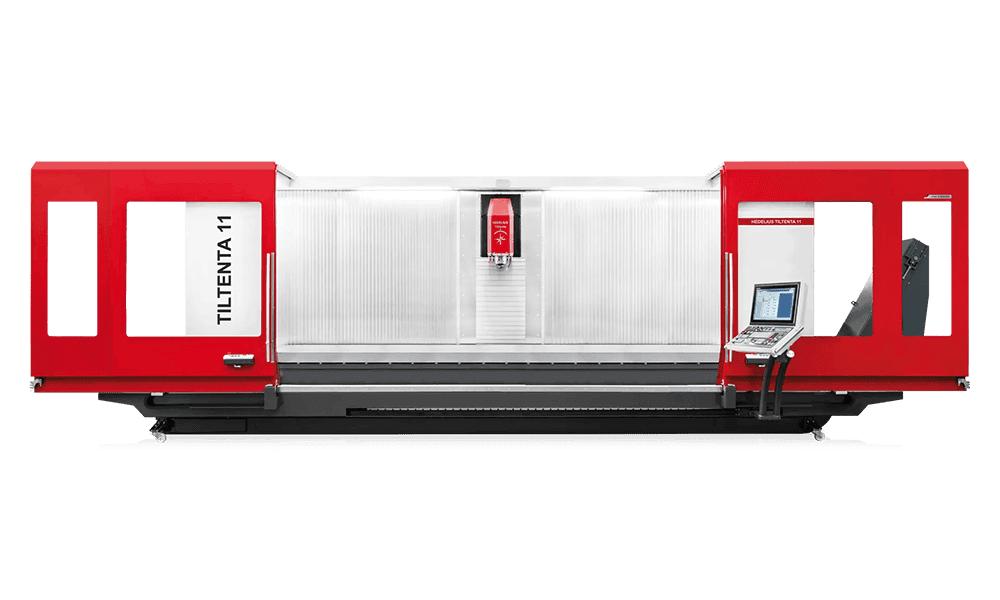

T11 4600 0R

TILTENTA 11-4600

X-, Y-, Z-travel
4600/4030 x 1100 x 900/1005 mm
Shuttle operation
2 x 2025 mm
Swivel range
-5° – +98°/-98° – +98°
Speed range
14000/15000/18000
View TILTENTA 11-4600
T11 4600 2R

TILTENTA 11-4600 2R

X-, Y-, Z-travel
4600/4030 x 1100 x 900/1005 mm
Shuttle operation
2 x 2025 mm
Swivel range
-5° – +98°/-98° – +98°
Speed range
14000/15000/18000
View TILTENTA 11-4600 2R
