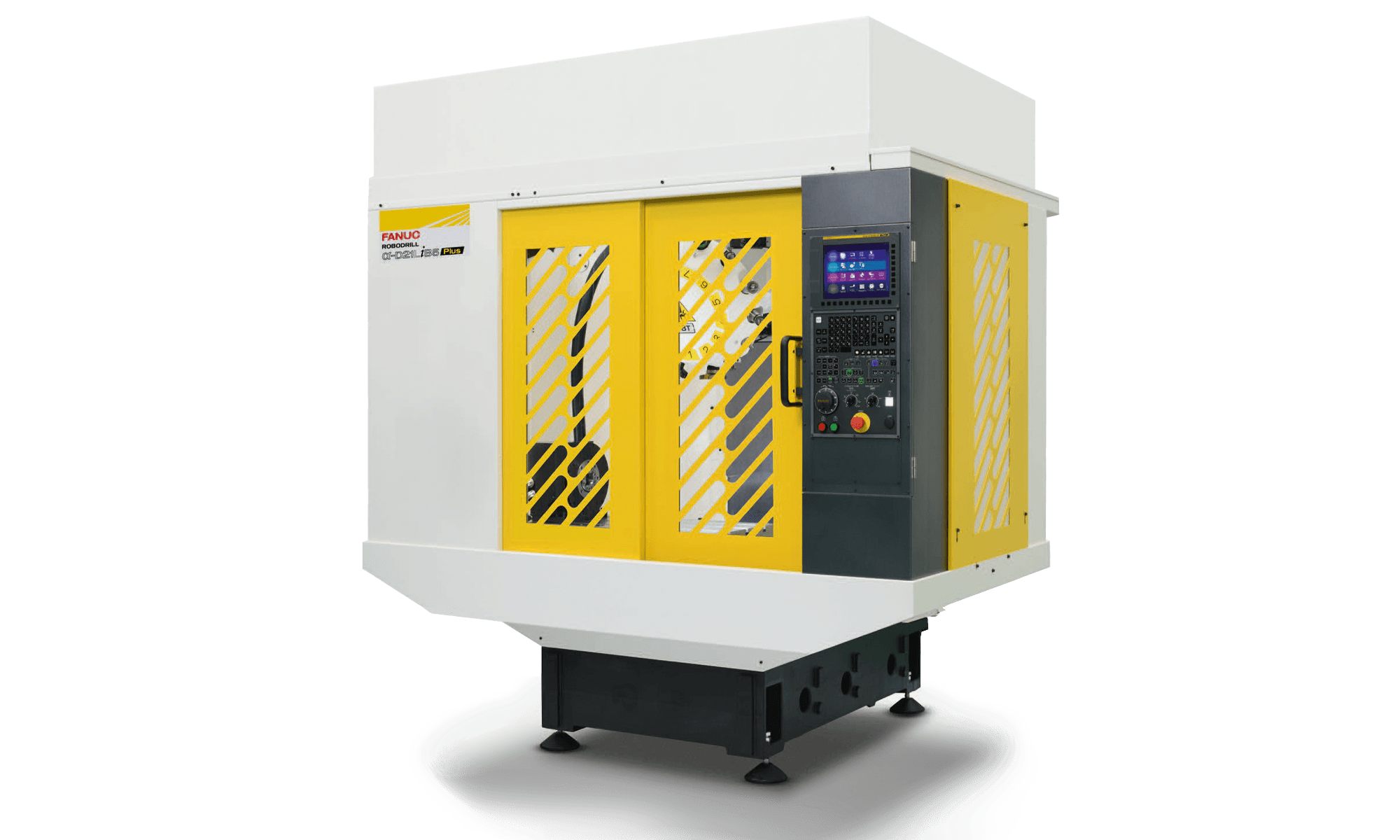

ROBODRILL ๐›ผ-D21L๐‘–B5 ADV Plus

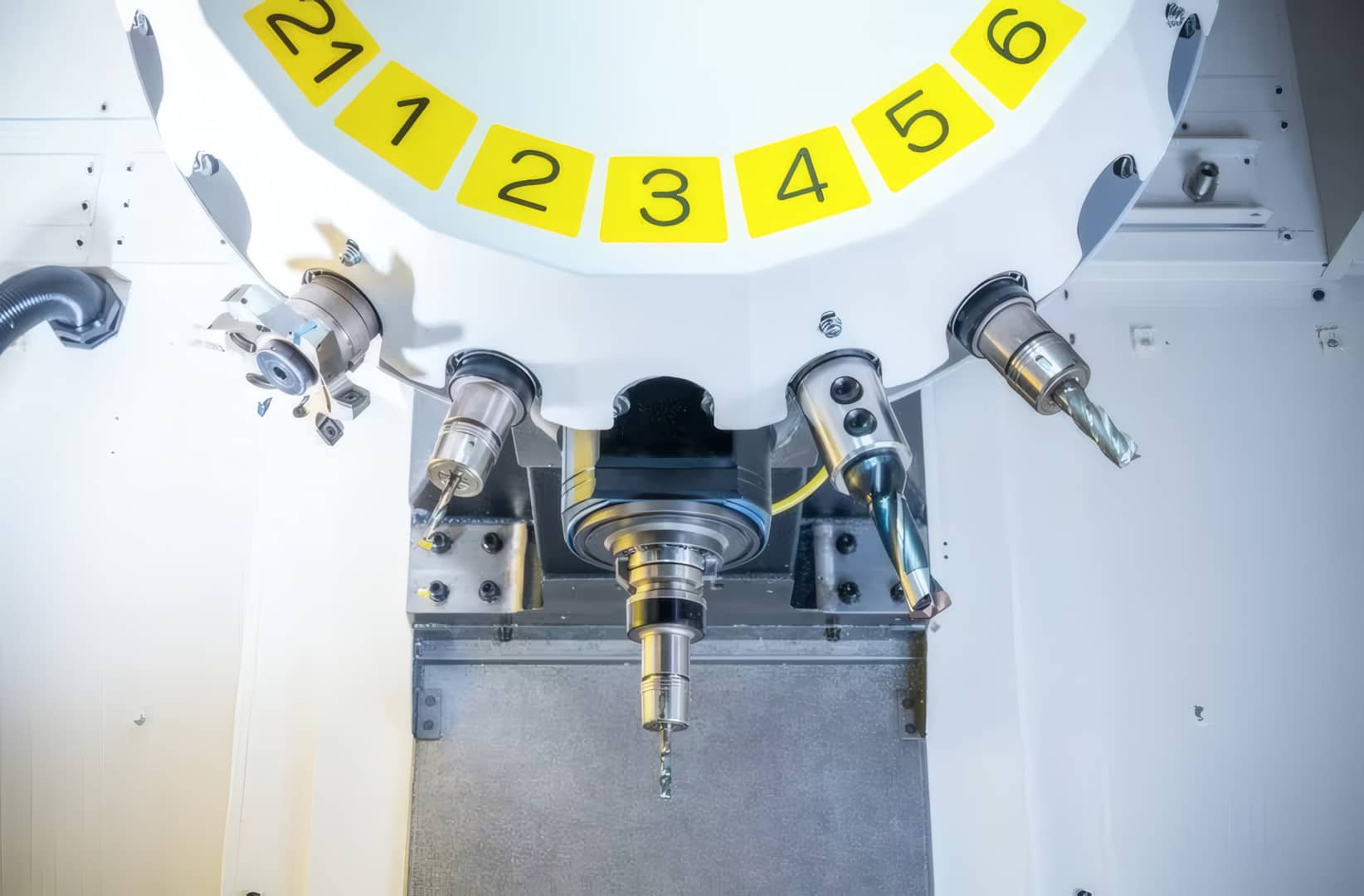

  • 0.7-second tool change for super-fast cycle times, enhancing productivity
  • 4 kg tool handling capability for multi-step tools, increasing versatility
  • 400 mm Z-axis stroke for larger parts expanding machining capabilities, making it suitable for 5-axis machining
  • Larger table payload (400 kg) for the M and L models
Request a Quote

The top-tier ROBODRILL model in our lineup provides unparalleled machining flexibility, encompassing a broad spectrum of tasks. Its long X-axis stroke makes it particularly well-suited for machining oversized components, making it a preferred option for industries such as automotive and aerospace.

Technical Data

Table size

850x410 mm

Travel X/Y/Z

700/400/400

Max. table load

400 kg

Machine mass/with DDR-TiB

2.3/ 2.5 t

Max. tool length

250 mm

Max. tool diameter

80 mm

Max. tool mass

4 kg

Total mass

46 kg

Number of tools

28

Spindle holder 7/24 taper No.30

Optional

Spindle holder BBT30

Available

Distance from spindle nose to table

280-680 mm (with HC200)

ROBODRILL ฮฑ-D21L๐‘–B5 ADV Plus Datasheet ROBODRILL Overview Brochure Request a Quote

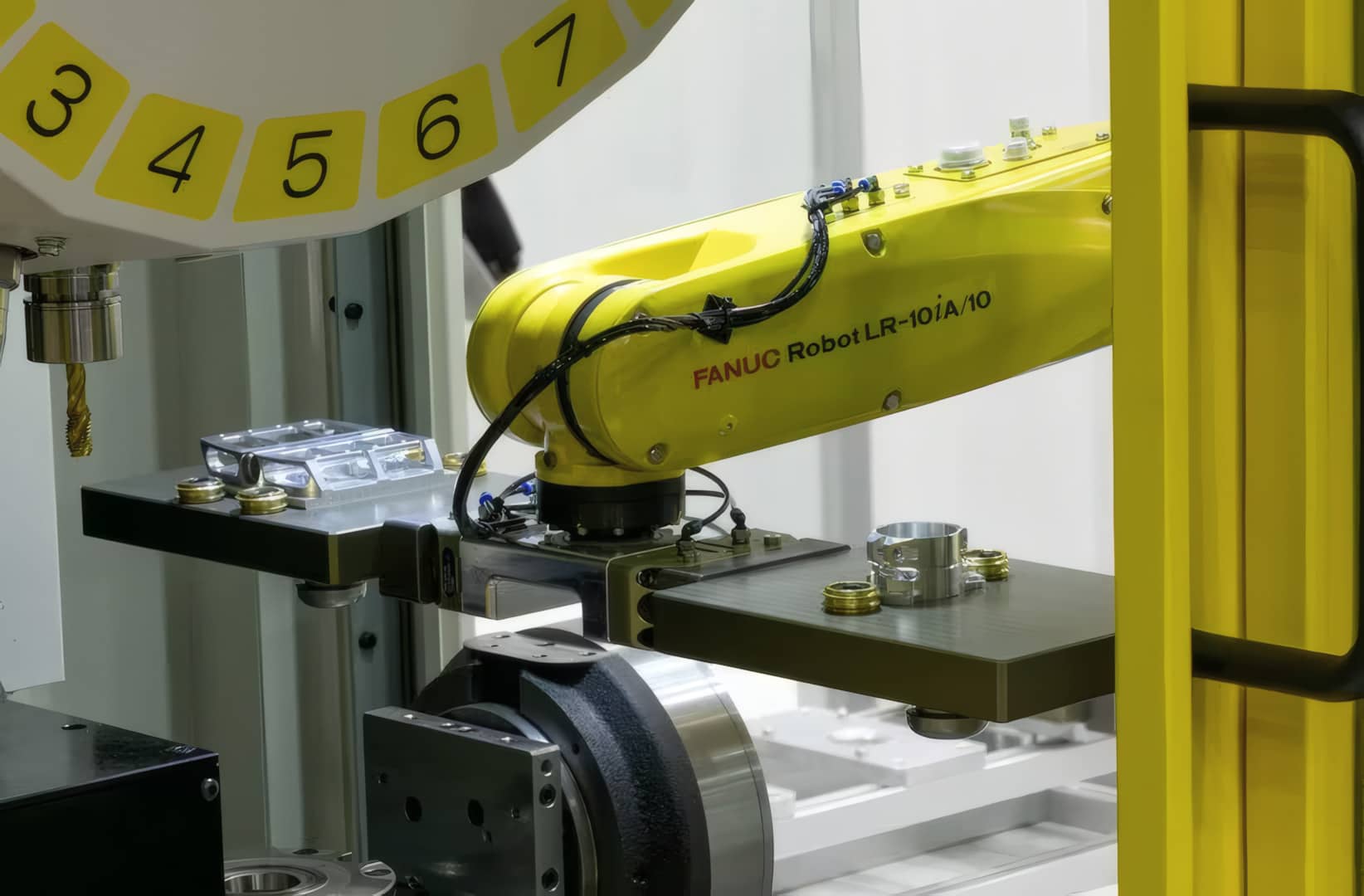

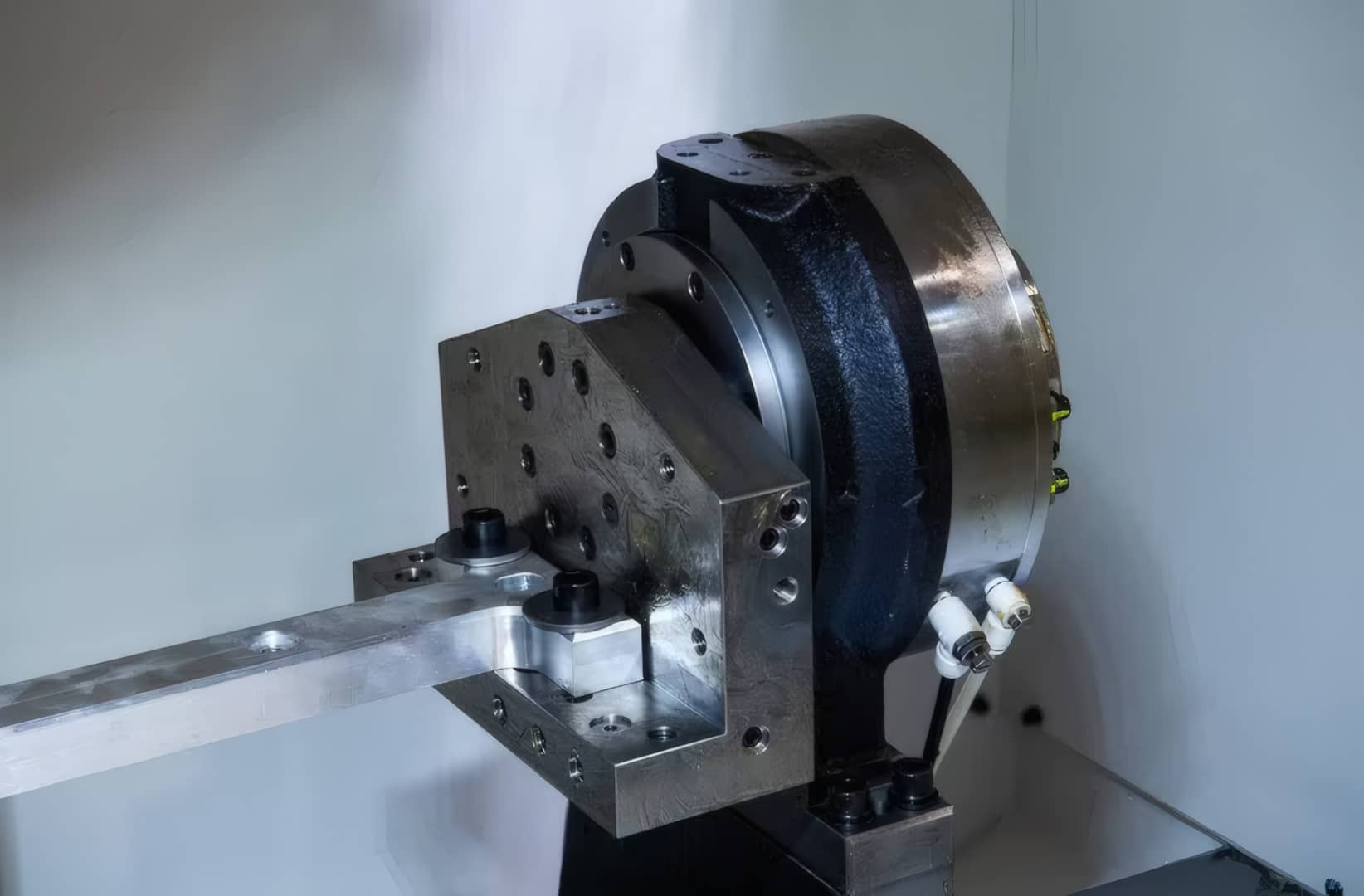

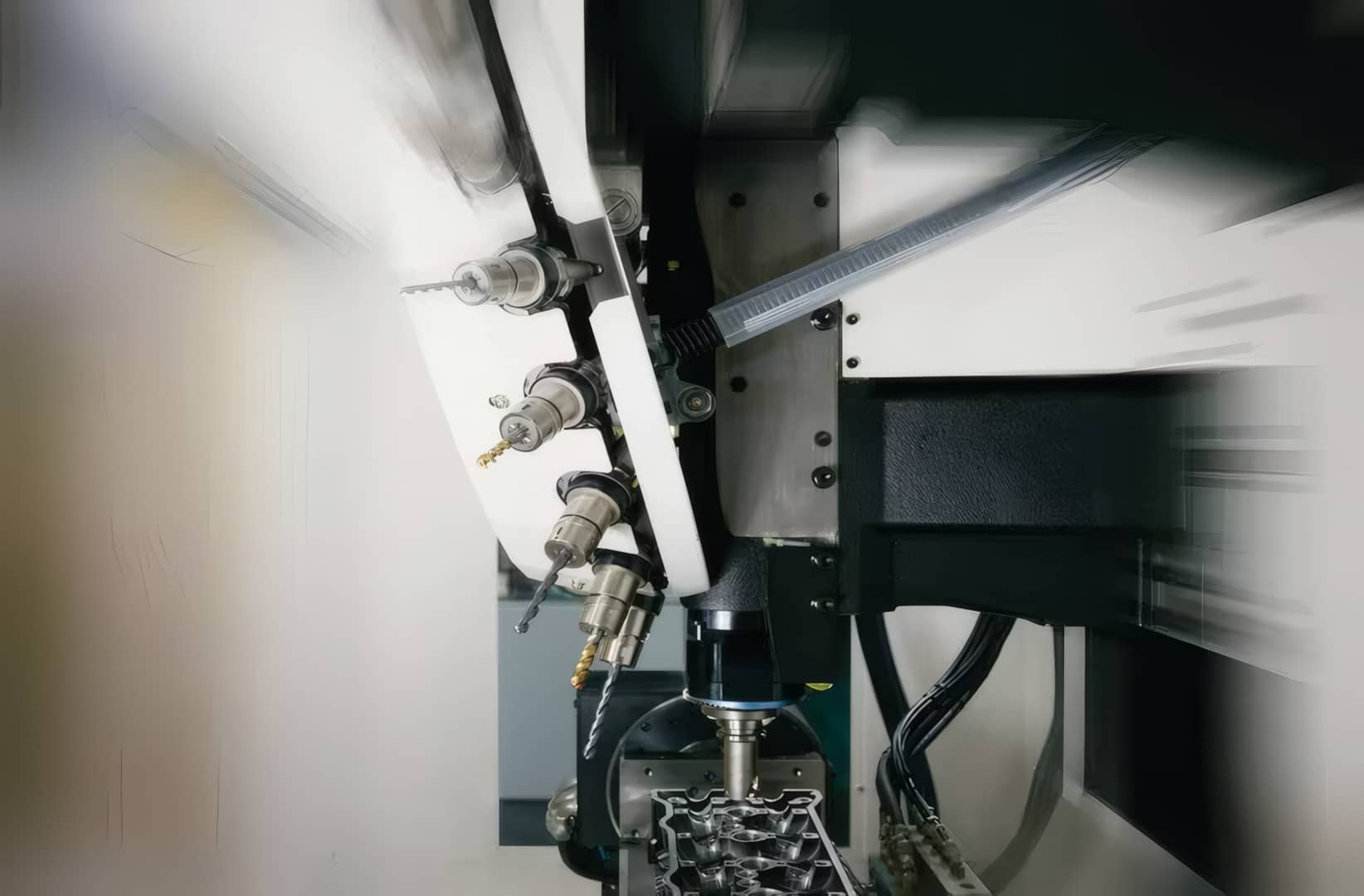

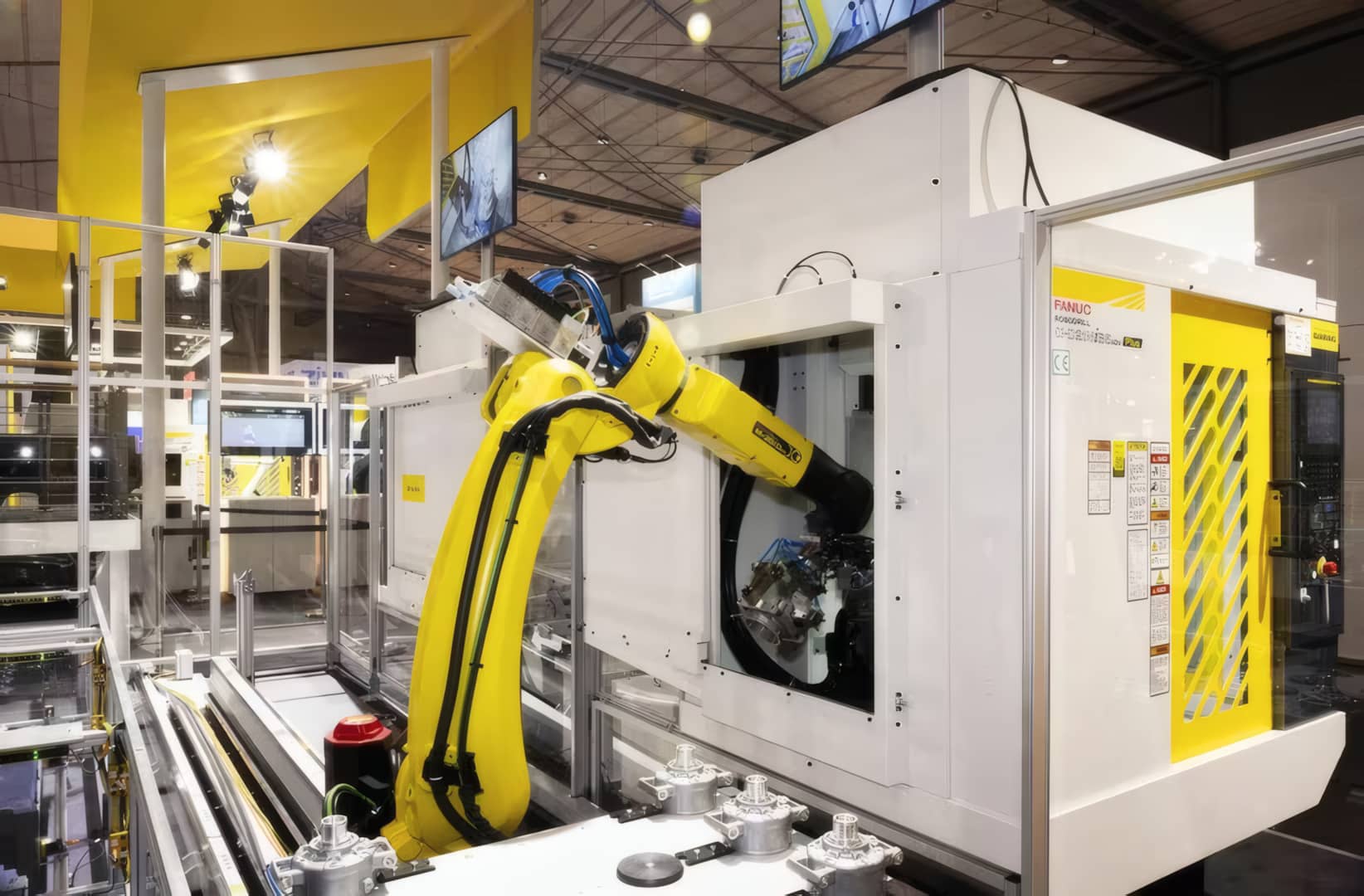

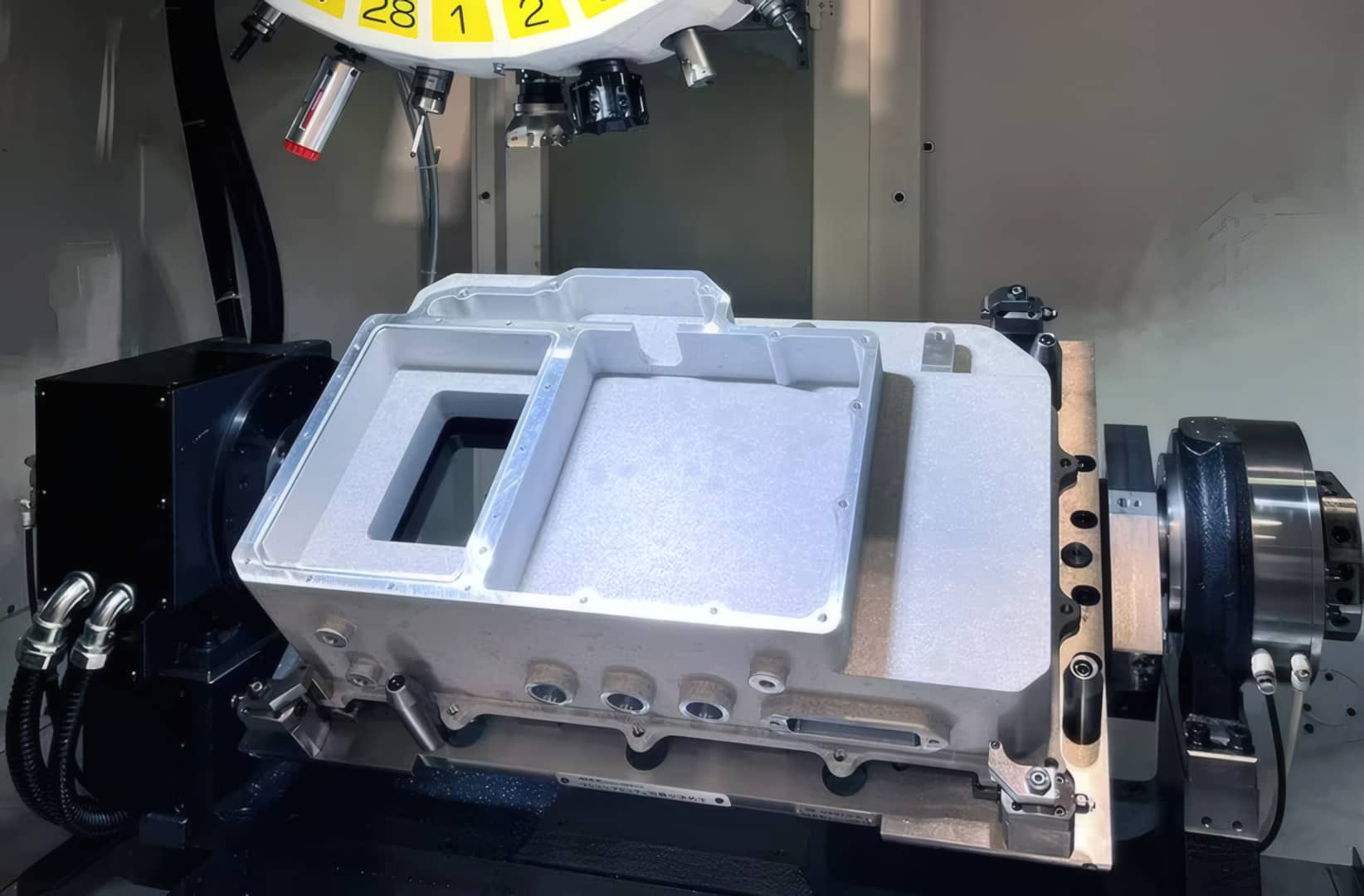

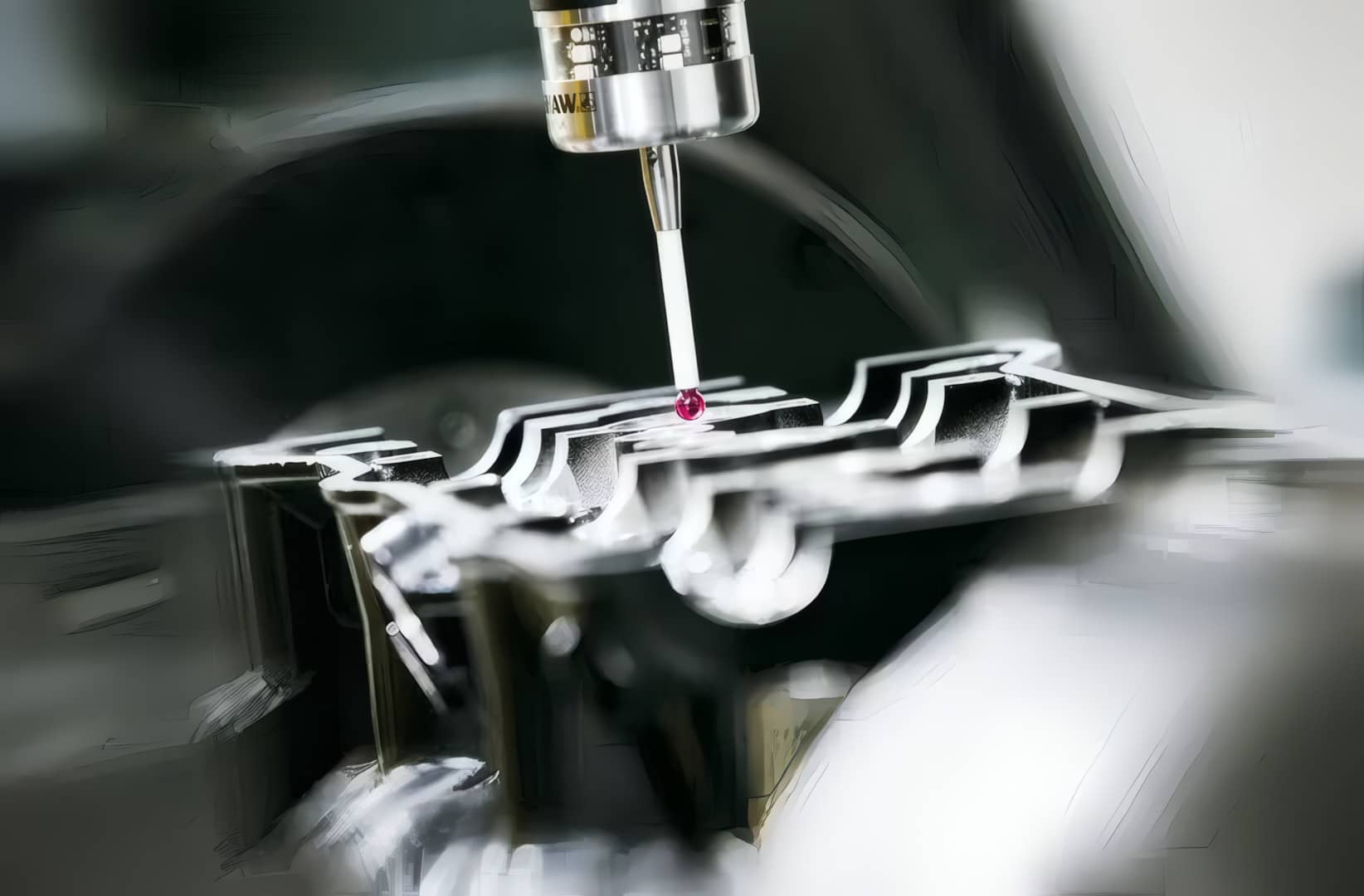

Gallery

Control Options

The heart of the ROBODRILL machining center is the FANUC Series 31๐‘–-B5 Plus, a highly reliable and user-friendly control system that ensures precision and efficiency in your machining operations.
