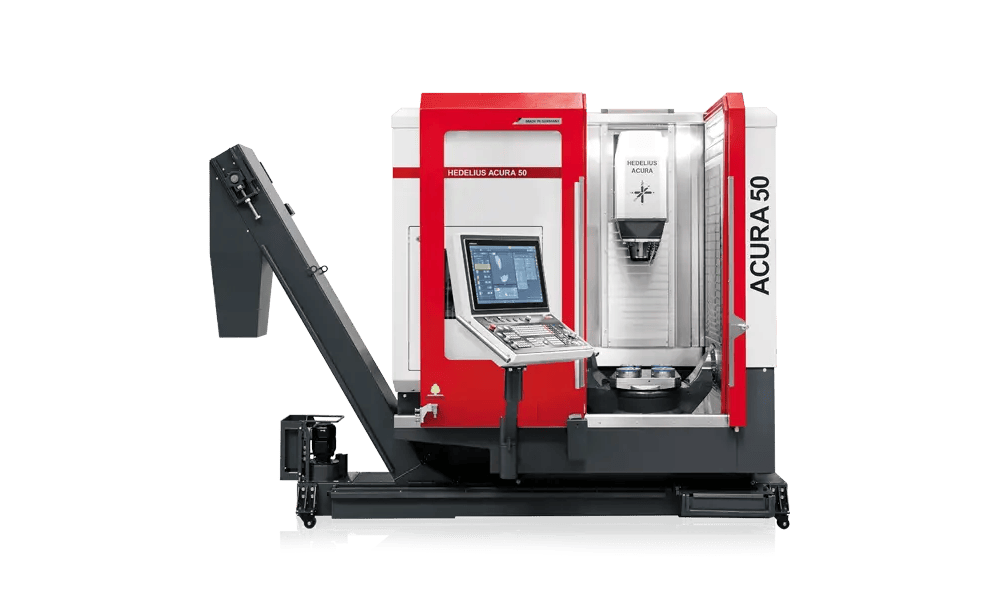

ACURA 50 MARATHON Automation ex works.

A50M
  • Automation with HEDELIUS pallet handling systems from the MARATHON series
  • Loading from the left machine side
  • Prepared interface
  • Side opening height of approx. 840 mm

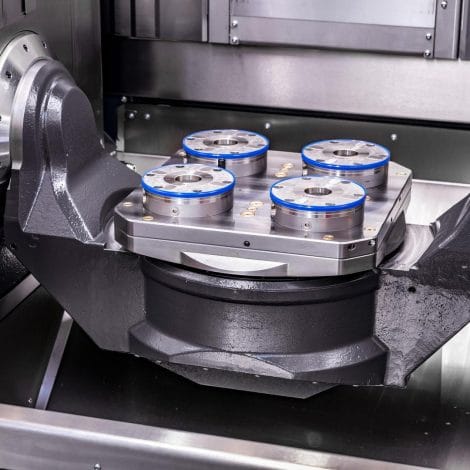

  • Factory-installed Schunk Vero NSA Plus zero-point clamping elements
  • End-to-end Heidenhain operating concept
Request a Quote

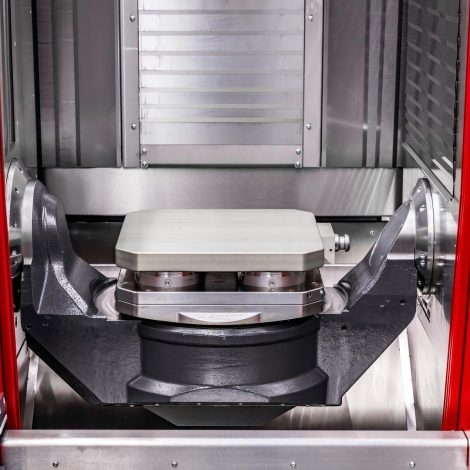

The ACURA 50 MARATHON is factory-prepared for pallet automation with a permanently installed zero point clamping system and a pneumatically actuated loading opening on the right side of the machine. A range of tool magazines with up to 319 tool slots and main spindles with speeds of up to 24,000 rpm are available, depending on the range of variation of the workpieces.

Technical Data

Interface for

MARATHON RZ430 / PL406

Pallet clamping surface

400x400 mm

Pallet clamping weight

90 / 350 kg

X-, Y-, Z-travel

500 x 550/370 x 550 mm

Swivel range

+30° – -115°

Speed range

14000/18000/24000

Spindle power

22,00/29,00/30,00/35,00 kW

Number of tools

55/80/235/319 (max.)

Tool holder

SK40 / BT40 / HSK A63

Rapid traverse

40/40/40 m/min

Feed measurement system

direct

Control

Heidenhain

Diameter interference circle

Ø 550 mm

Space requirements (PDF) Dimensions (PDF) Spindle performance (PDF) Request a Quote

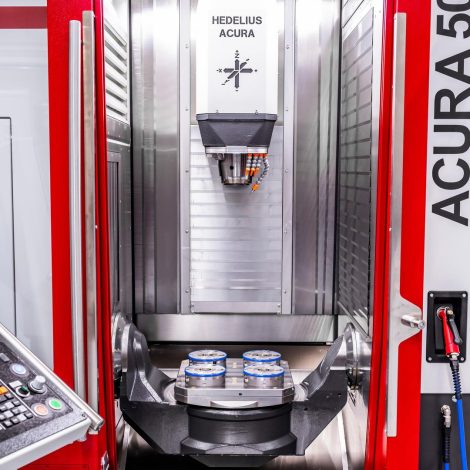

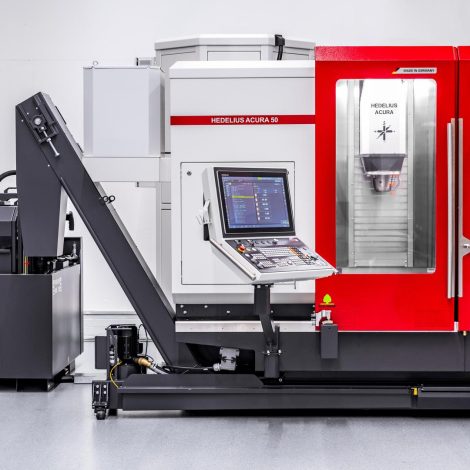

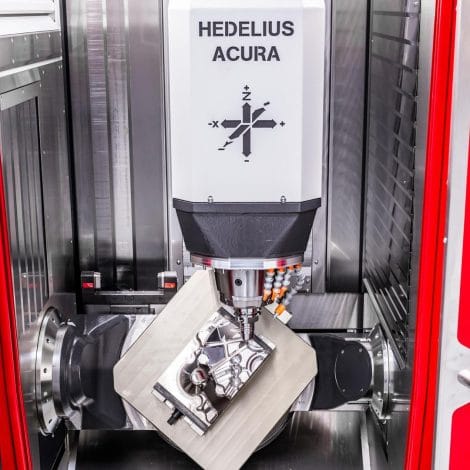

Gallery

Control Options

Heidenhain
