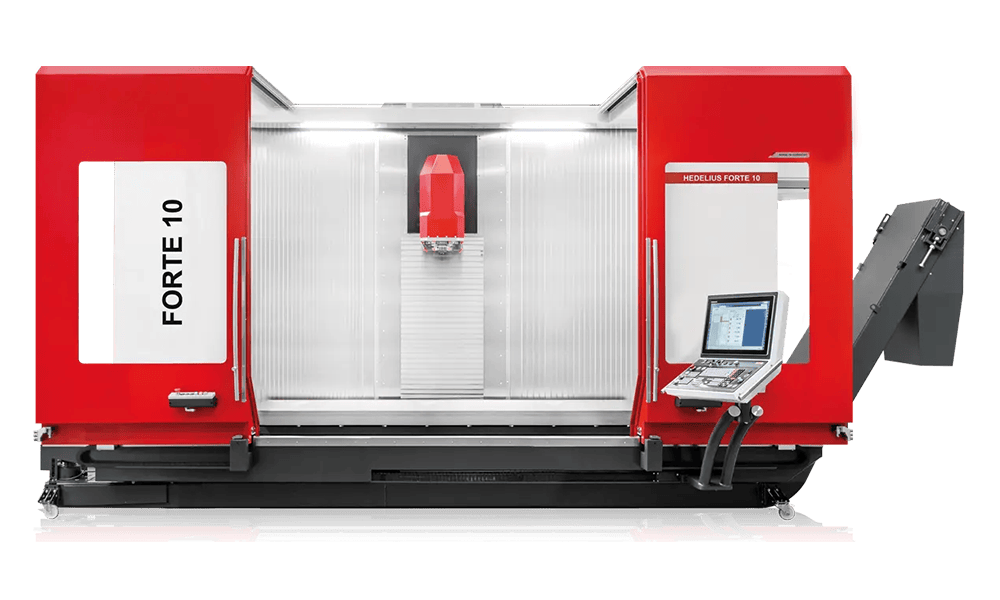

3-AXIS VERTICAL MACHINING CENTRE FORTE 10-2600 High performance in a small space.

F10 2600
  • Extra-large Z-axis travel path of 1,165 mm
  • Efficient oscillation mode possible thanks to work area partition
  • High table load
  • Tool magazine with up to 192 tools on-hand
  • SK50, BT50 or optional HSK A100 tool pick-up
  • Tool lengths up to 400 mm
Request a Quote

The 3-axis vertical machining centre FORTE 10-2600 is the first choice when high performance is required in a tight space. Your production will be precise and economical thanks to the high-quality standard equipment with direct measuring systems, stainless steel slats, smooth-running work area doors and powerful milling spindle with SK50, BT50 or HSK A100 tool pick-up system.

Technical Data

X-, Y-, Z-travel

2600 x 1000 x 1165 mm

Shuttle operation

2 x 965 mm

Speed range

8000/12000

Spindle power

50.00 kW

Number of tools

40/192 (max.)

Tool holder

SK50 / BT50 / HSK A100

Rapid traverse

40/40/40 m/min

Feed measurement system

direct

Control

Heidenhain / Sinumerik

Total clamping surface

3080 x 1000 mm

Fixed table load

4500 kg

Space requirements (PDF) Dimensions (PDF) Spindle performance (PDF) Request a Quote

Control Options

Heidenhain
Sinumerik
