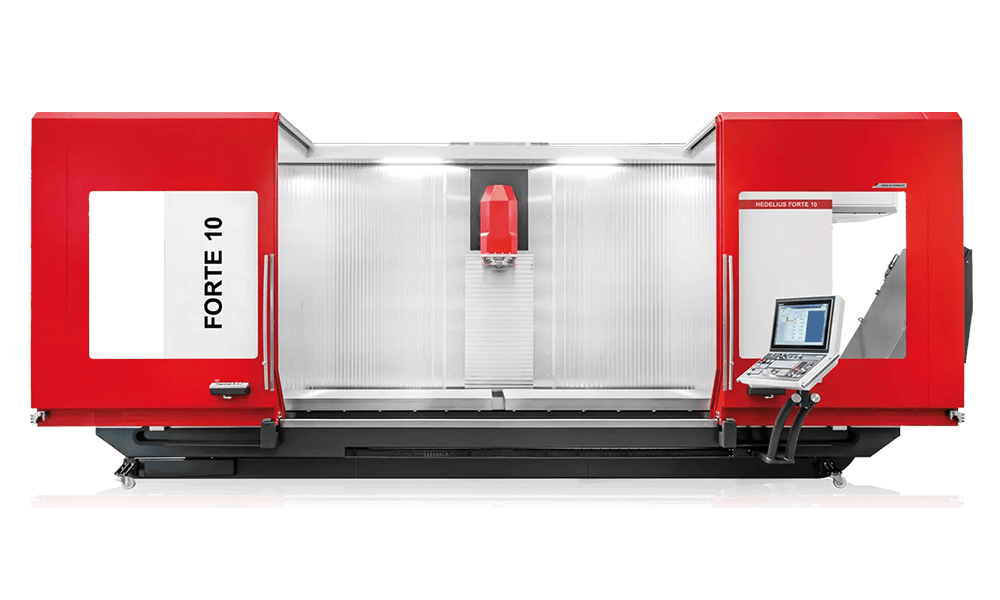

3-AXIS VERTICAL MACHINING CENTRE FORTE 10-3600 Extra large. Especially strong.

F10 3600
  • Extra-large Z-axis travel path of 1,165 mm
  • Efficient oscillation mode possible thanks to work area partition
  • High table load
  • Tool magazine with up to 192 tools on-hand
  • SK50, BT50 or optional HSK A100 tool pick-up
  • Tool lengths up to 400 mm
Request a Quote

The FORTE 10-3600 is an attractive 3-axis vertical machining centre with extra-large travel paths, a particularly powerful milling spindle featuring SK50, BT50 or HSK A100 tool pick-up, a 40-fold tool magazine as standard, and an extensive range of accessories. This machining centre will become the productive hub of your manufacturing department.

Technical Data

X-, Y-, Z-travel

3600 x 1000 x 1165 mm

Shuttle operation

2 x 1465 mm

Speed range

8000/12000

Spindle power

50.00 kW

Number of tools

40/192 (max.)

Tool holder

SK50 / BT50 / HSK A100

Rapid traverse

40/40/40 m/min

Feed measurement system

direct

Control

Heidenhain / Sinumerik

Total clamping surface

4080 x 1000 mm

Fixed table load

5500 kg

Space requirements (PDF) Dimensions (PDF) Spindle performance (PDF) Request a Quote

Control Options

Heidenhain
Sinumerik

Similar Machining Centres

F10 2600

FORTE 10-2600

X-, Y-, Z-travel
2600 x 1000 x 1165 mm
Shuttle operation
2 x 965 mm
Speed range
8000/12000
Spindle power
50.00 kW
View this Model
F10 4600

FORTE 10-4600

X-, Y-, Z-travel
4600 x 1000 x 1165 mm
Shuttle operation
2 x 1965 mm
Speed range
8000/12000
Spindle power
50.00 kW
View this Model
F10 6200

FORTE 10-6200

X-, Y-, Z-travel
6200 x 1000 x 1165 mm
Shuttle operation
2 x 2765 mm
Speed range
8000/12000
Spindle power
50.00 kW
View this Model
F11 2600

FORTE 11-2600

X-, Y-, Z-travel
2600 x 1100 x 1005 mm
Speed range
14000/15000/18000
Spindle power
22.00/35.00/37.00/50.00 kW
Number of tools
65/245/329 (max.)
View this Model
