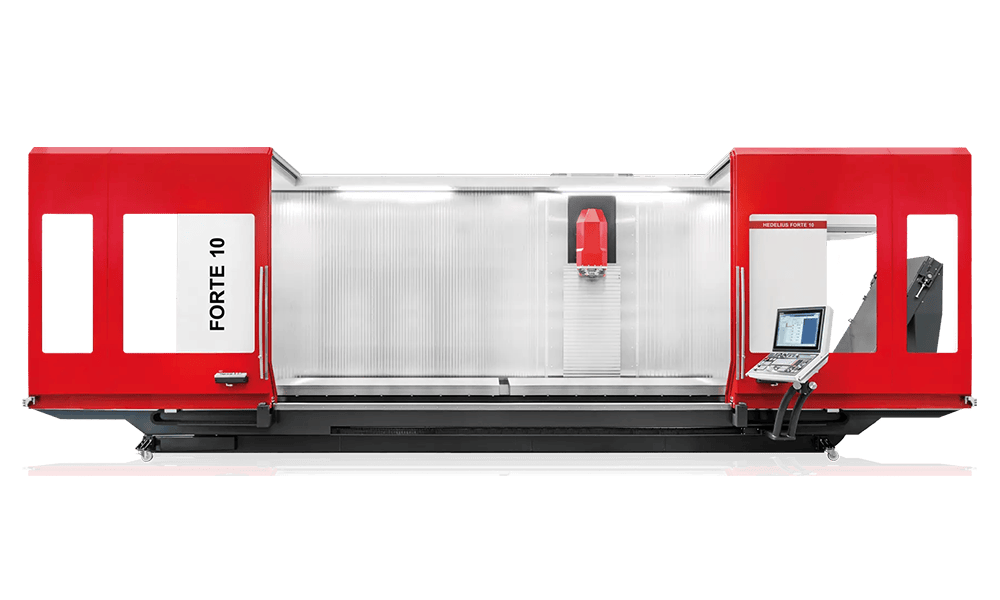

3-AXIS VERTICAL MACHINING CENTRE FORTE 10-4600 Decisively efficient.

F10 4600
  • Extra-large Z-axis travel path of 1,165 mm
  • Efficient oscillation mode possible thanks to work area partition
  • High table load
  • Motor-operated automatic doors for high ease of use
  • Tool magazine with up to 192 tools on-hand
  • SK50, BT50 or optional HSK A100 tool pick-up
  • Tool lengths up to 400 mm
Request a Quote

We can tailor the FORTE 10 series to your specific needs thanks to the extensive range of accessories, including rotary tables, vacuum pumps, pick-up magazines for extra-long tools or hydraulic clamping systems for automatic activation of fixtures. Flawlessly designed work areas with vertical slat covers and excellent work area accessibility further complement the overall concept of these high-performance vertical machining centres.

Technical Data

X-, Y-, Z-travel

4600 x 1000 x 1165 mm

Shuttle operation

2 x 1965 mm

Speed range

8000/12000

Spindle power

50.00 kW

Number of tools

40/192 (max.)

Tool holder

SK50 / BT50 / HSK A100

Rapid traverse

40/40/40 m/min

Feed measurement system

direct

Control

Heidenhain / Sinumerik

Total clamping surface

5080 x 1000 mm

Fixed table load

6500 kg

Space requirements (PDF) Dimensions (PDF) Spindle performance (PDF) Request a Quote

Control Options

Heidenhain
Sinumerik
