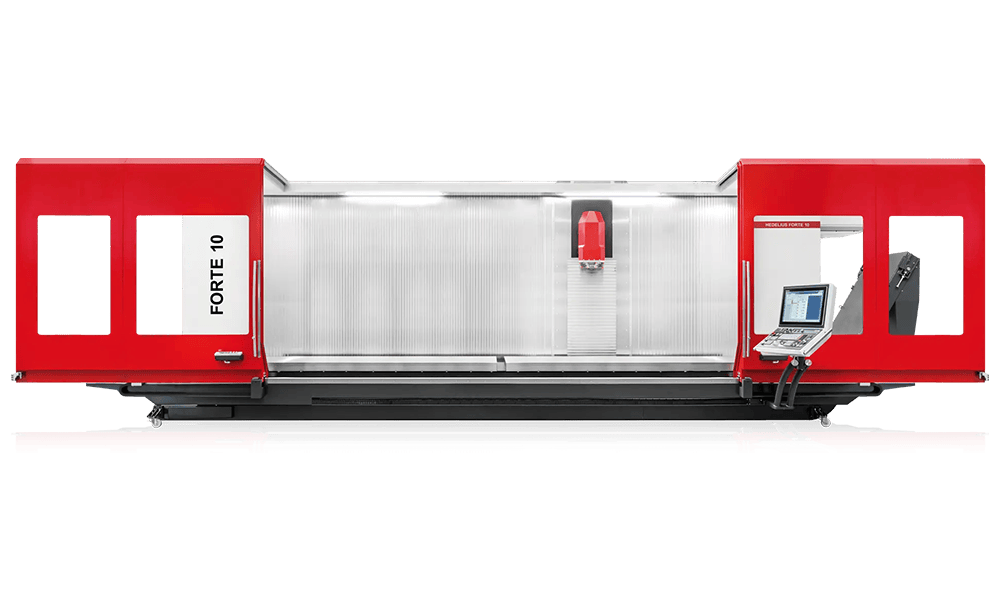

With a 6200 mm X travel path, this machining centre completes the successful FORTE 10 series. Generously dimensioned recirculating roller guides, ground ball roller spindles and direct Heidenhain measuring systems in all axes guarantee exceptional rigidity combined with maximum accuracy and dynamics. The travelling column and machine table are made of heavy grey cast iron; an essential criterion for an SK50/HSK 100 machine to ensure high surface quality and low tool wear even in difficult-to-machine materials. We can tailor the FORTE 10 series to your specific needs, thanks to the extensive range of accessories including rotary tables, vacuum pumps, pick-up magazines for extra-long tools or hydraulic clamping systems for the automatic activation of fixtures.
X-, Y-, Z-travel
6200 x 1000 x 1165 mm
Shuttle operation
2 x 2765 mm
Speed range
8000/12000
Spindle power
50.00 kW
Number of tools
40/192 (max.)
Tool holder
SK50 / BT50 / HSK A100
Rapid traverse
40/40/40 m/min
Feed measurement system
direct
Control
Heidenhain / Sinumerik
Total clamping surface
6680 x 1000 mm
Fixed table load
8000 kg
