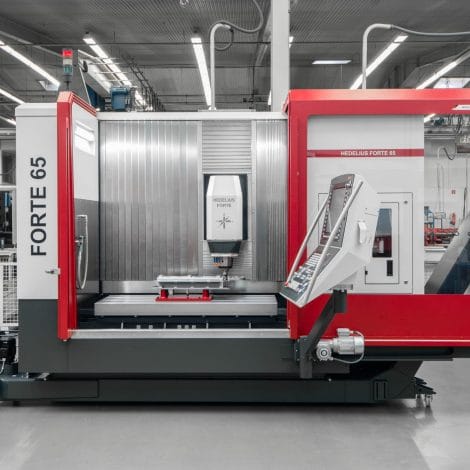

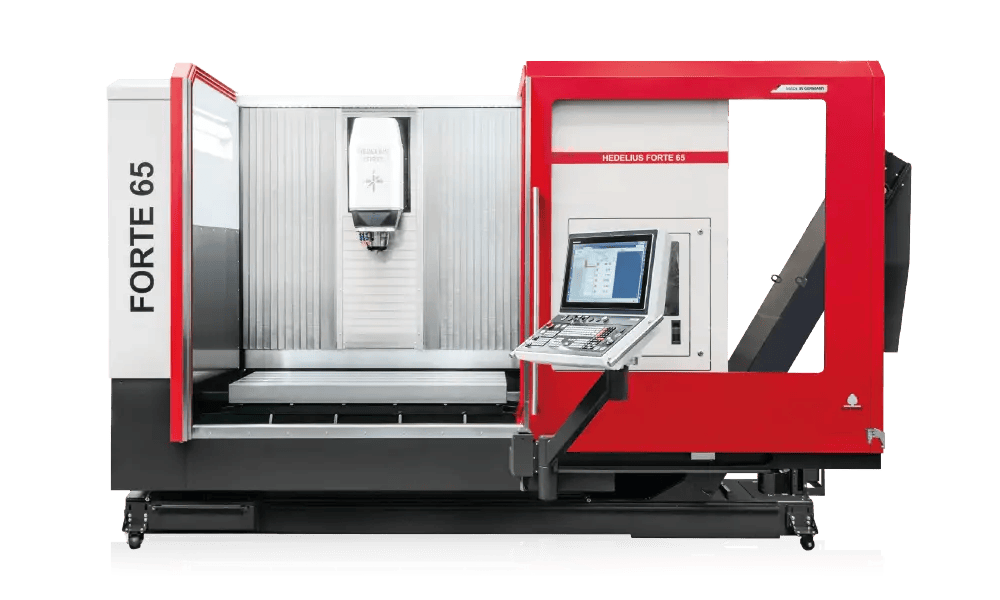

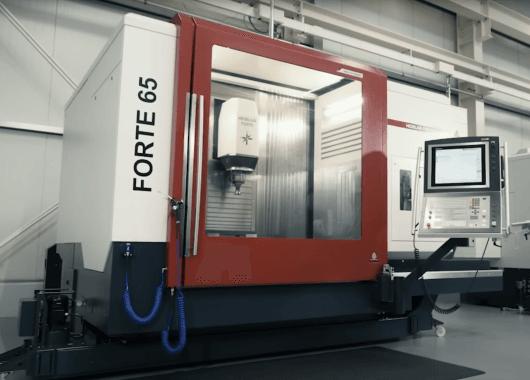

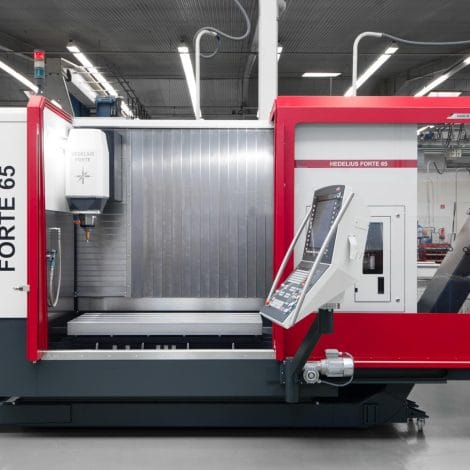

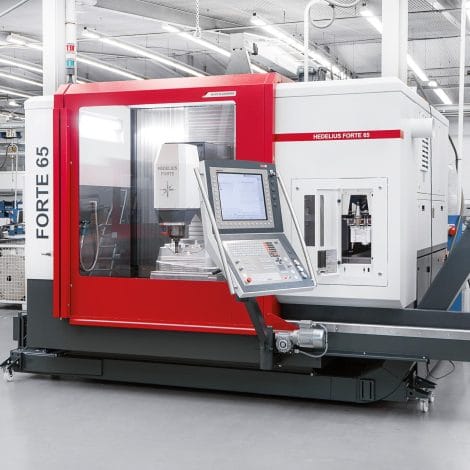

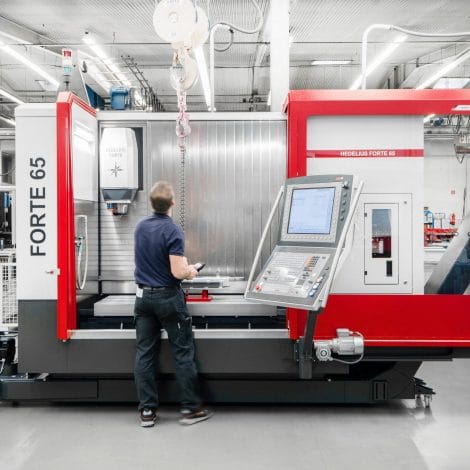

When high machining performance and precision in the smallest space are required, the moving column machining centre FORTE 65 Single 1320 is the right choice. The modern moving columns construction shines with a high degree of dynamics independent of the work piece weight. With travel lengths of 1320 x 650 x 600 mm, it offers a surprisingly large amount of space with small installation measurements. Direct travel measurement systems on all axes and the latest generation of drive technology ensure long term precision.
X-, Y-, Z-travel
1320 x 650 x 600 mm
Speed range
14000/15000/18000/24000
Spindle power
22.00/29.00/30.00/35.00/50.00 kW
Number of tools
65/245/329 (max.)
Tool holder
SK40 / BT40 / HSK A63
Rapid traverse
40/40/40 m/min
Feed measurement system
direct
Control
Heidenhain / Sinumerik

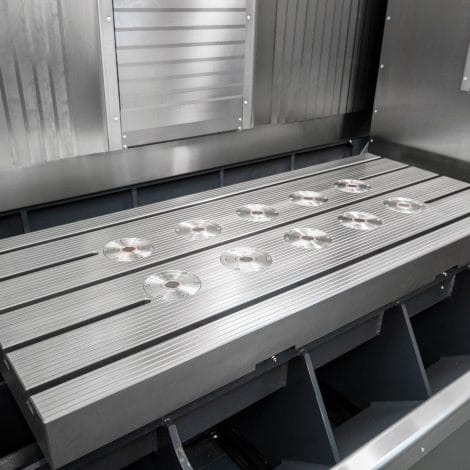

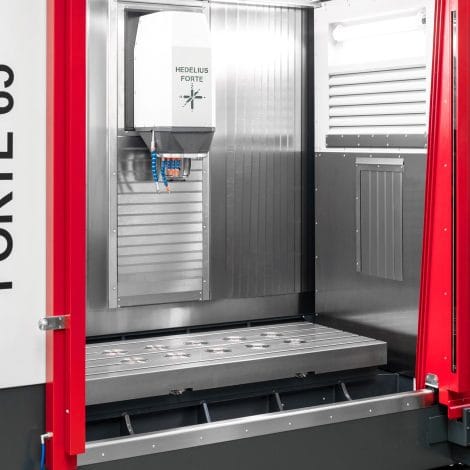

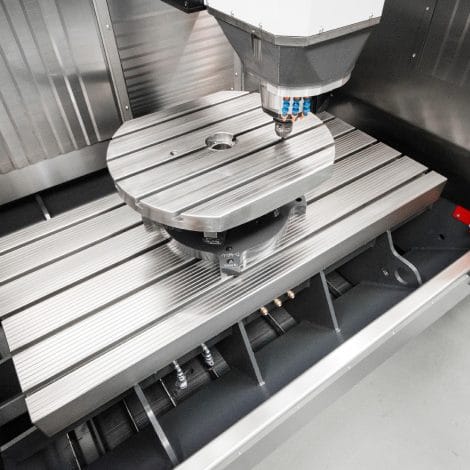

Total clamping surface
1500 x 650 mm
Fixed table load
1200/2000 kg
