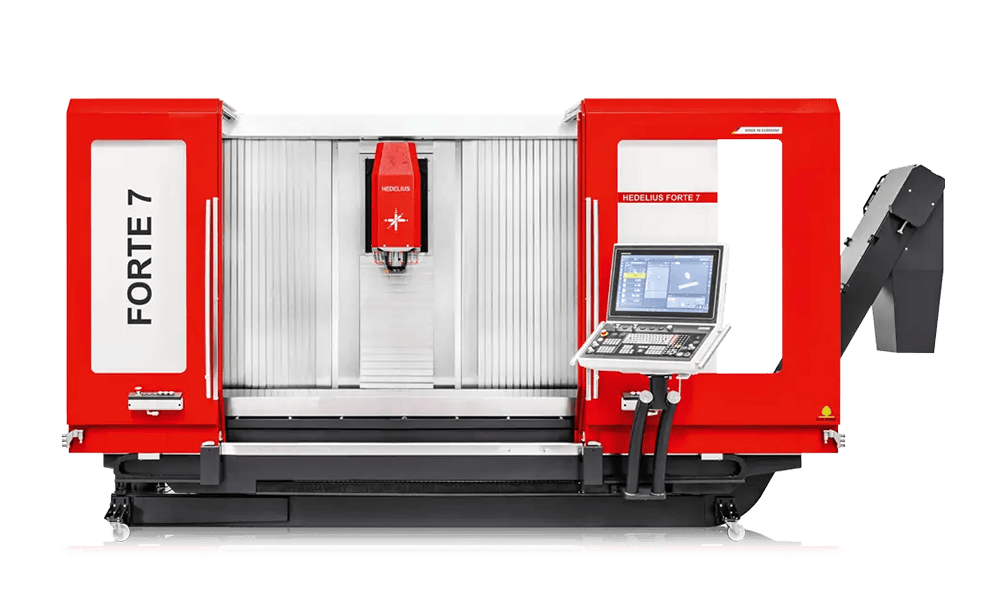

Where conventional CNC machining centres with a moving table reach their technical limits in terms of travel, dynamics, table load and chip removal, the FORTE 7 series offers a solution. The operator’s platform design impresses with a high table load, consistent dynamics (regardless of workpiece weight) and optimised chip fall. The enclosed full cabin and integrated exhaust system ensure a clean working environment. The sliding control panel and large viewing windows make set-up and process control easier for the operator.
X-, Y-, Z-travel
2000 x 700 x 800 mm
Speed range
14000/18000
Spindle power
22.00/29.00/35.00 kW
Number of tools
45/225/309 (max.)
Tool holder
SK40 / BT40 / HSK A63
Rapid traverse
40/40/40 m/min
Feed measurement system
direct
Control
Heidenhain / Sinumerik
Total clamping surface
2300 x 700 mm
Fixed table load
2000 kg
