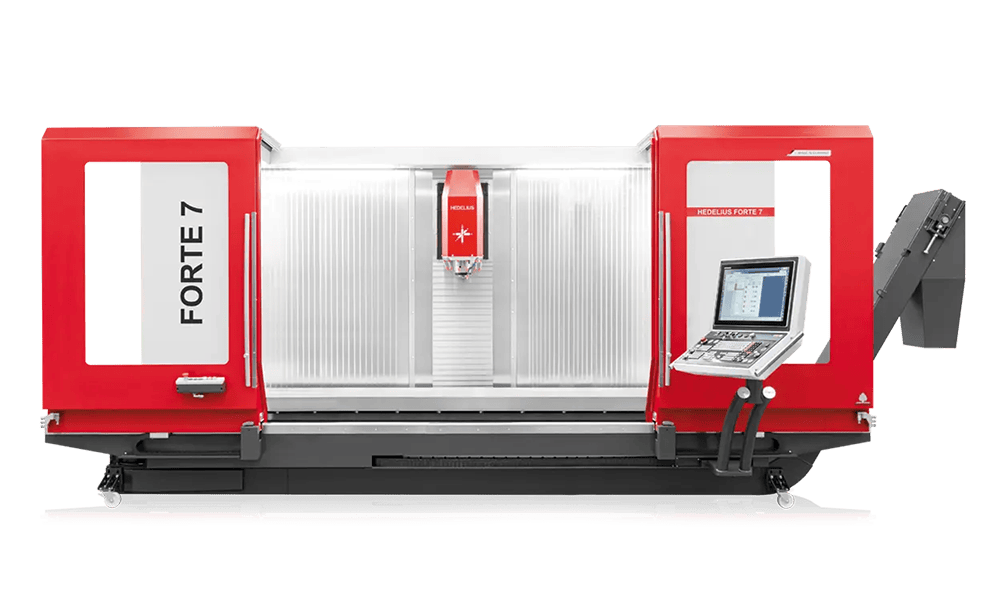

FORTE 7-2600 NEO Flexible in one-off production and in pendulum operation.

F7 2600 NEO
  • Large X travel of 2600 mm
  • Extra large Z travel of 800 mm
  • Completely enclosed work area
  • Heavy-duty, fixed machine table
  • Vertical stainless steel cover for optimised chip fall
  • Moving column of high-quality machine casting
  • Moving tool magazine with 45 spaces for short chip-to-chip times
  • Optionally up to 309 tools in the magazine reduce your set-up times
  • Shuttle machining to reduce downtimes during series production
Request a Quote

The FORTE 7-2600 NEO opens new fields of application up, as machining of single parts and batches. By inserting a workspace partition, the long basic workspace can be divided in two for loading and unloading parallel to machining. This enables productive pendulum operation.

Technical Data

X-, Y-, Z-travel

2600 x 700 x 800 mm

Shuttle operation

1300/840 mm

Speed range

14000/18000

Spindle power

22.00/29.00/35.00 kW

Number of tools

45/225/309 (max.)

Tool holder

SK40 / BT40 / HSK A63

Rapid traverse

40/40/40 m/min

Feed measurement system

direct

Control

Heidenhain / Sinumerik

Total clamping surface

3080 x 700 mm

Fixed table load

2500 kg

Space requirements (PDF) Dimensions (PDF) Spindle performance (PDF) Request a Quote

Control Options

Heidenhain
Sinumerik

Similar Machining Centres

Hedelius F65 S1320

FORTE 65 Single 1320

X-, Y-, Z-travel
1320 x 650 x 600 mm
Speed range
14000/15000/18000/24000
Spindle power
22.00/29.00/30.00/35.00/50.00 kW
Number of tools
65/245/329 (max.)
View this Model
Hedelius F85

FORTE 85 Single 1620

X-, Y-, Z-travel
1620 x 850 x 700 mm
Speed range
14000/15000/18000/24000
Spindle power
22.00/30.00/35.00/37.00/50.00 kW
Number of tools
80/260/344 (max.)
View this Model
F7 2000 NEO

FORTE 7-2000 NEO

X-, Y-, Z-travel
2000 x 700 x 800 mm
Speed range
14000/18000
Spindle power
22.00/29.00/35.00 kW
Number of tools
45/225/309 (max.)
View this Model
F9 2600

FORTE 9-2600

X-, Y-, Z-travel
2600 x 900 x 1005 mm
Speed range
14000/15000/18000
Spindle power
22.00/35.00/37.00/50.00 kW
Number of tools
60/240/324 (max.)
View this Model
F11 2600

FORTE 11-2600

X-, Y-, Z-travel
2600 x 1100 x 1005 mm
Speed range
14000/15000/18000
Spindle power
22.00/35.00/37.00/50.00 kW
Number of tools
65/245/329 (max.)
View this Model
