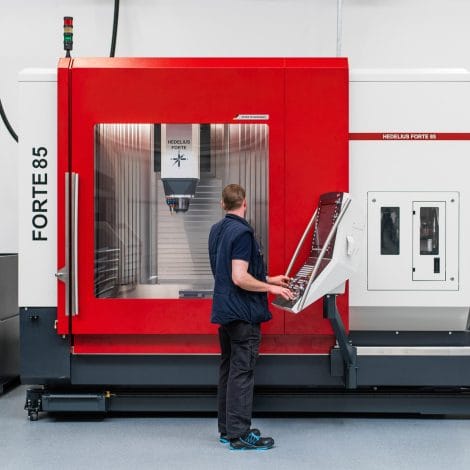

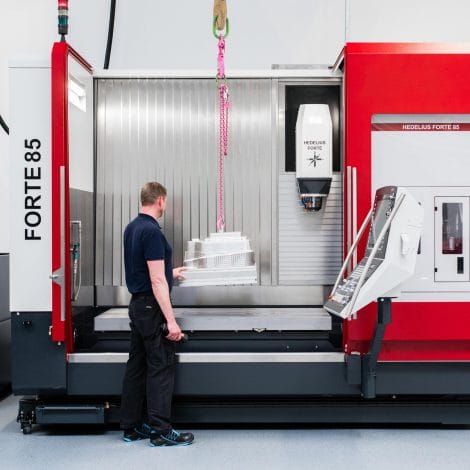

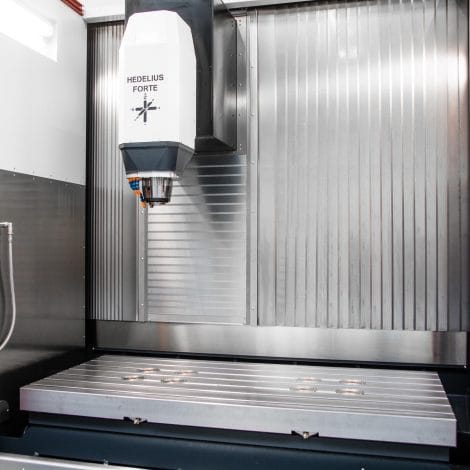

In order that the workspace can be ideally used, everything is oriented toward the operator with the large machine window and the fixed machine bench. The direct access to the work piece is further supported by the ergonomic working height of the machine bench. Vertical stainless steel coverings ensure an optimised falling of shavings – even for the volume machining of aluminium. Little time is thus required for cleaning work with the FORTE 85 Single 1620.
X-, Y-, Z-travel
1620 x 850 x 700 mm
Speed range
14000/15000/18000/24000
Spindle power
22.00/30.00/35.00/37.00/50.00 kW

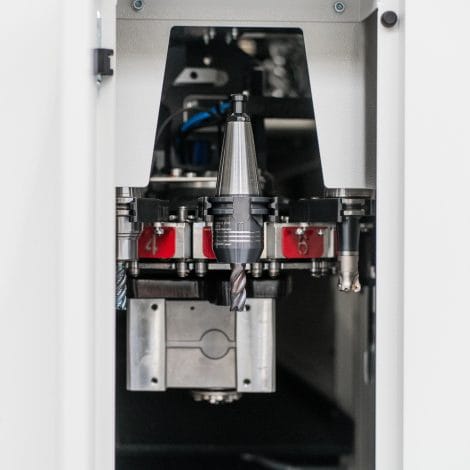

Number of tools
80/260/344 (max.)
Tool holder
SK40 / BT40 / HSK A63
Rapid traverse
40/40/40 m/min
Feed measurement system
direct

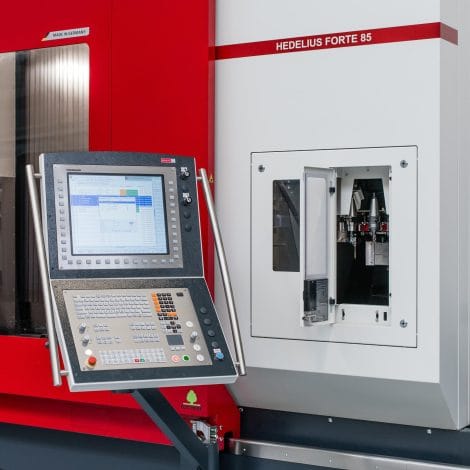

Control
Heidenhain / Sinumerik

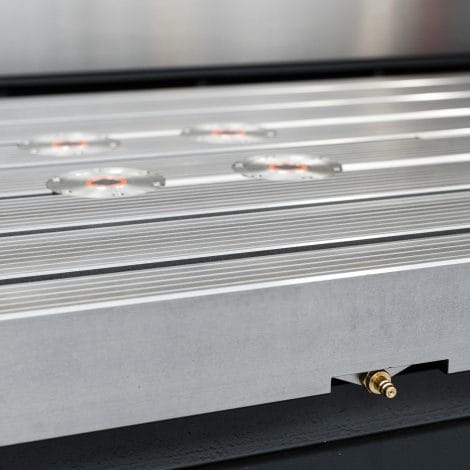

Total clamping surface
1800 x 900 mm
Fixed table load
1500/2000 kg
