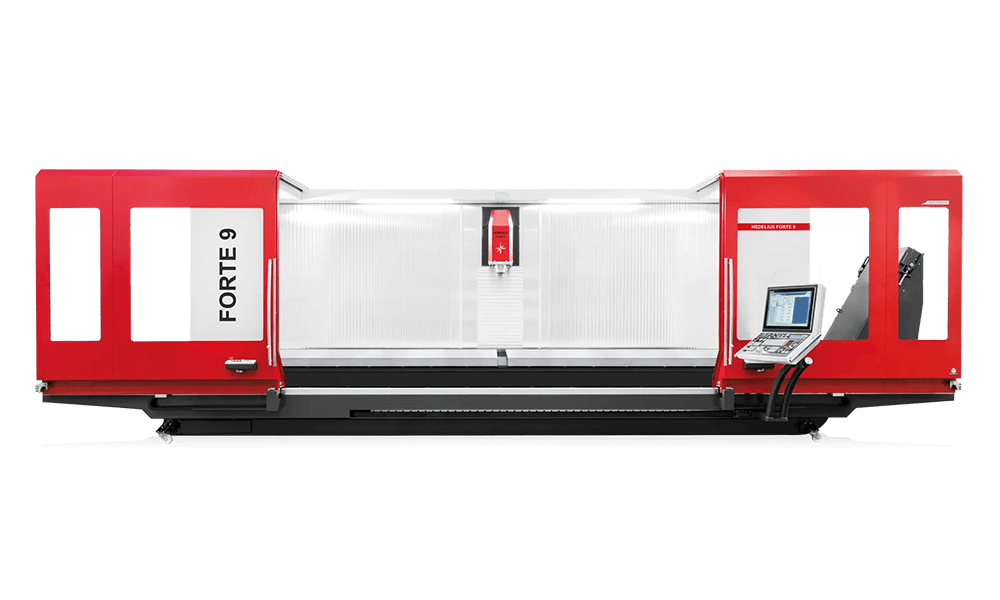

FORTE 9-4600 Better dynamics for big jobs.

F9 4600
  • Large Z-axis travel of 1005 mm
  • Fully enclosed working space
  • Direct measuring systems
  • High-performance liquid-cooled motor milling spindle at 14,000 min-1 and 22 kW as standard
  • Main spindles with SK40 or HSK A63 uptake if required
  • High table load thanks to fixed machine bench
  • Travelling 60-fold tool magazine
  • Tool selection via double gripper during machining time for shorter chip-to-chip time
  • Vertical stainless steel cover for optimised chip fall
  • Chip conveyor may be right- or left-oriented, as required
Request a Quote

The moving column concept demonstrates its superiority when it comes to machining large and heavy workpieces, as the machine dynamics are independent of the workpiece weight. The torsion-resistant grey cast iron travelling column is remarkable for its high stability and vibration damping.

Technical Data

X-, Y-, Z-travel

4600 x 900 x 1005 mm

Shuttle operation

2 x 2025 mm

Speed range

14000/15000/18000

Spindle power

22.00/35.00/37.00/50.00 kW

Number of tools

60/240/324 (max.)

Tool holder

SK40 / BT40 / HSK A63

Rapid traverse

40/40/40 m/min

Feed measurement system

direct

Control

Heidenhain / Sinumerik

Total clamping surface

5080 x 900 mm

Fixed table load

5000 kg

Space requirements (PDF) Dimensions (PDF) Spindle performance (PDF) Request a Quote

Control Options

Heidenhain
Sinumerik
