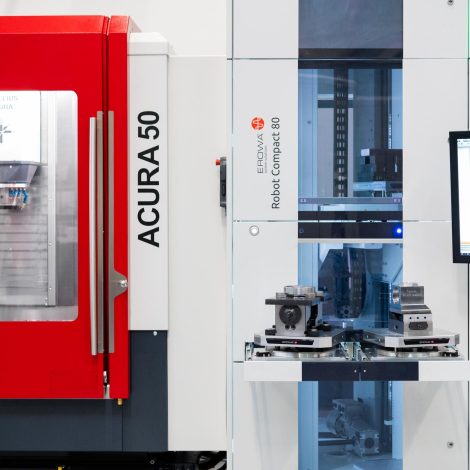

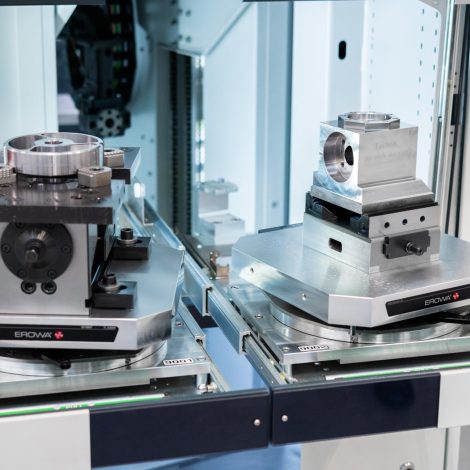

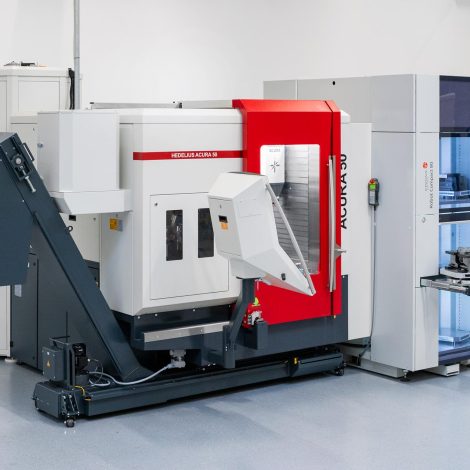

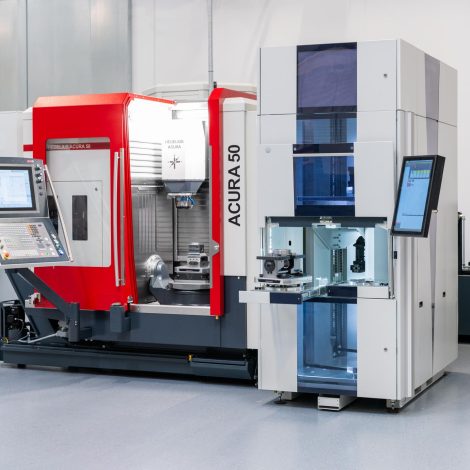

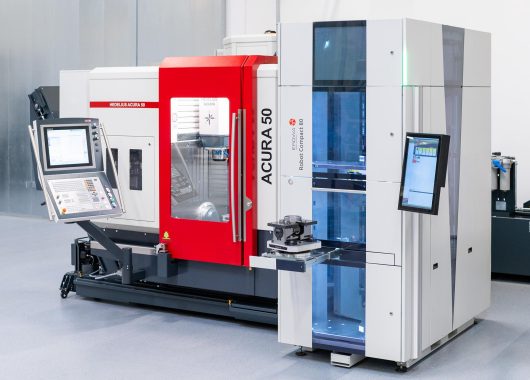

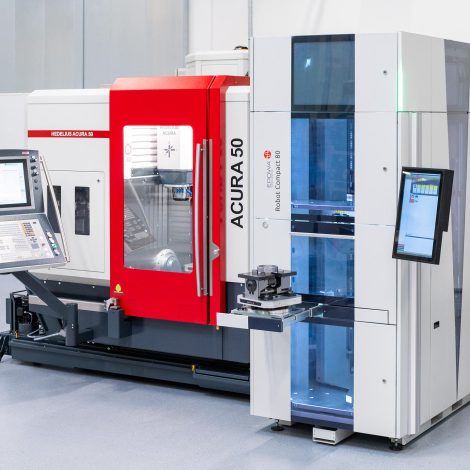

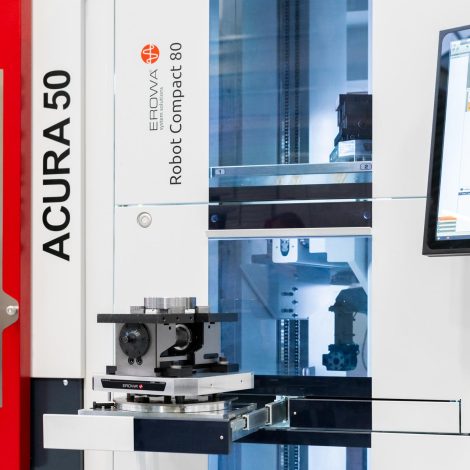

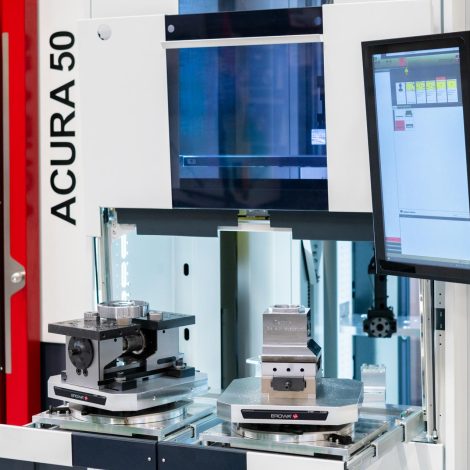

The EROWA ERC 80 loads the ACURA 50 EL 5-axis machining centre with pallets of size 320 x 320 mm. The multi-pallet storage system has capacity for 10 pallets sized 320 x 320 mm (option for 16 pallets), with a transfer weight of 80 kg. Alternatively, the pallet storage system can also handle smaller pallets, e.g. up to 24 pallets at Ø 210 mm. The special thing about this concept is that it requires little space – approx. 4,480 mm.
Interface for
ACURA 50
Storage/retrieval station
2-fold
Pallet rotatable on set-up station
Yes
Number of pallets
10/15/25
Pallet clamping surface
320x320mm/Ø210 mm/Ø148 mm
Handling weight
80 kg
Multi-machine operation
No
