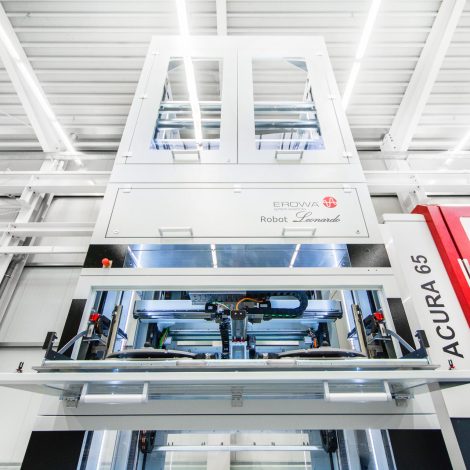

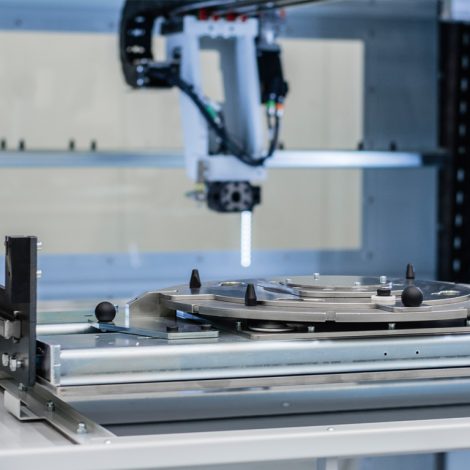

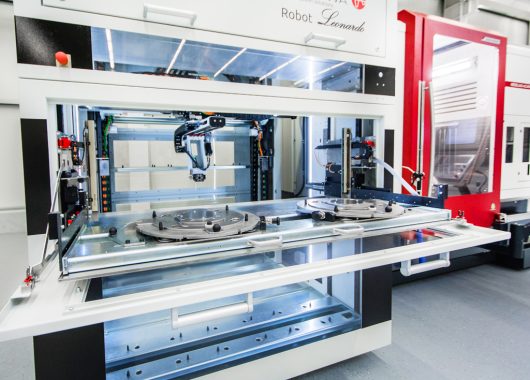

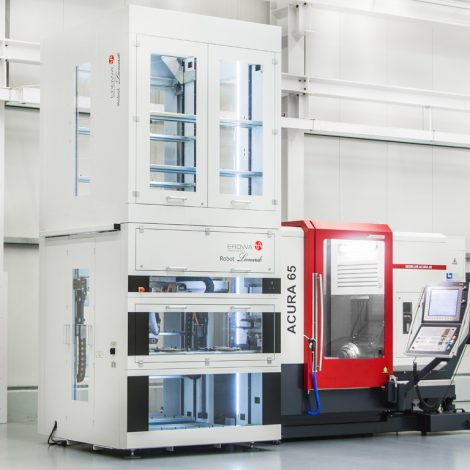

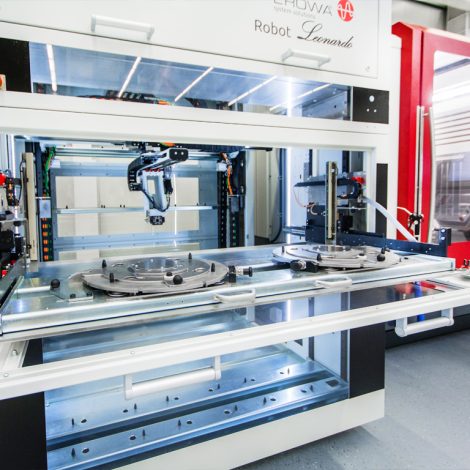

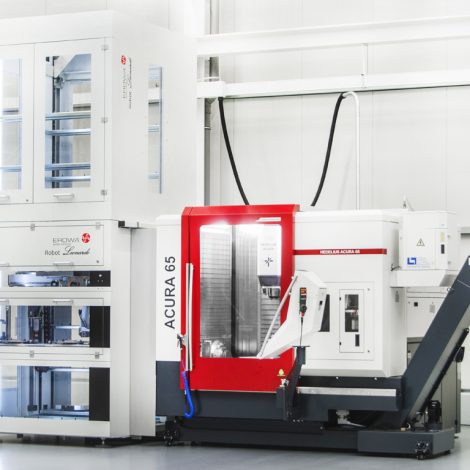

The EROWA Leonardo is a pallet handling device with multi-level magazines. The transfer weight is 80 kg (or optionally 120 kg). The X-axis has a long travel, so it works even in big machines. The small range of commands required are entered via a touchpad. The integrated controls are highly autonomous. Pallets are automatically placed in a free slot.
Interface for

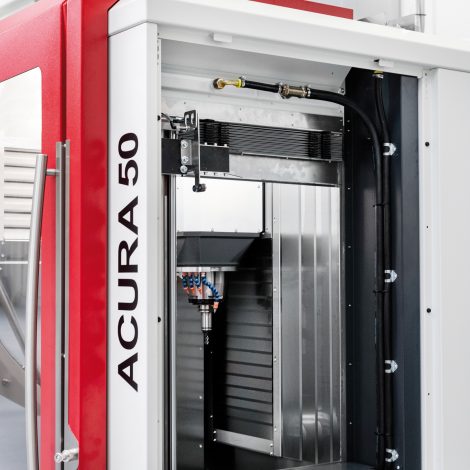

ACURA 50/ACURA 65/ACURA 85
Storage/retrieval station
2-fold/4-fold
Pallet rotatable on set-up station
Yes
Number of pallets
24/32/40
Pallet clamping surface
400x400mm/320x320mm/Ø210mm
Handling weight
80/120 kg
Multi-machine operation
Yes
