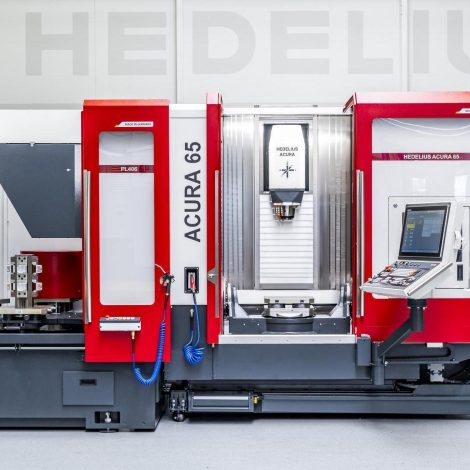

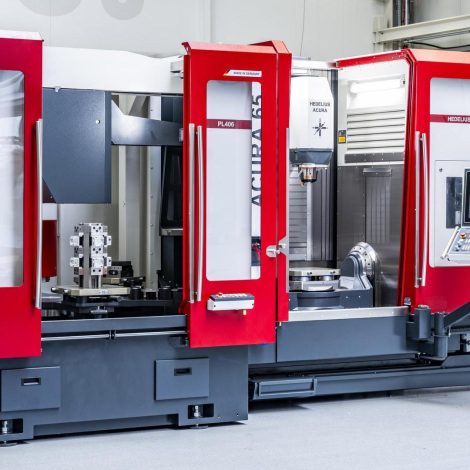

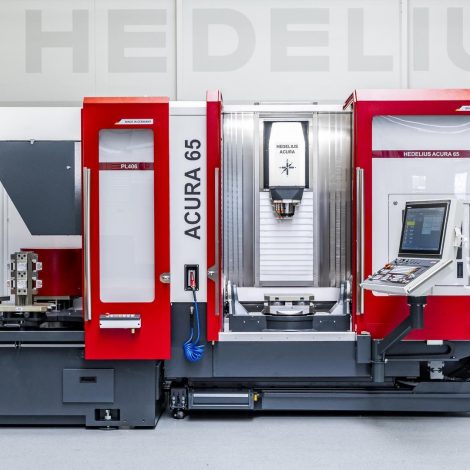

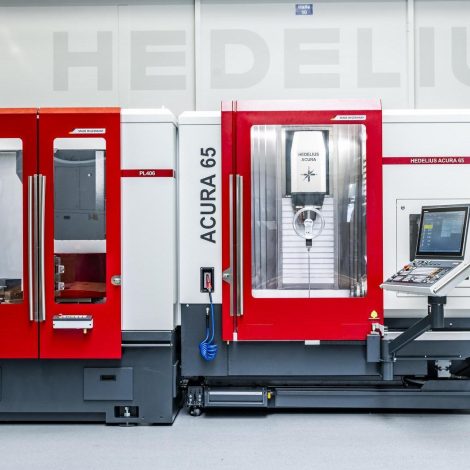

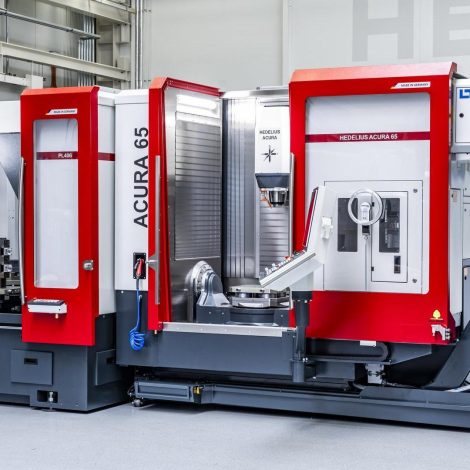

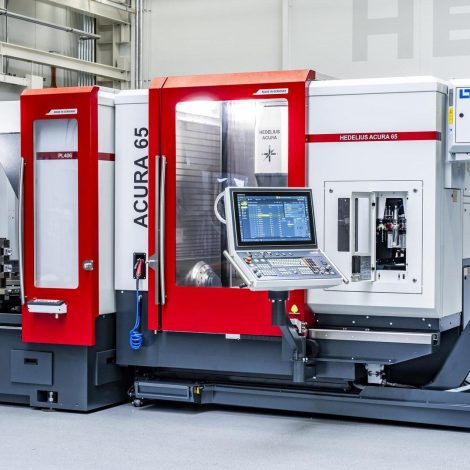

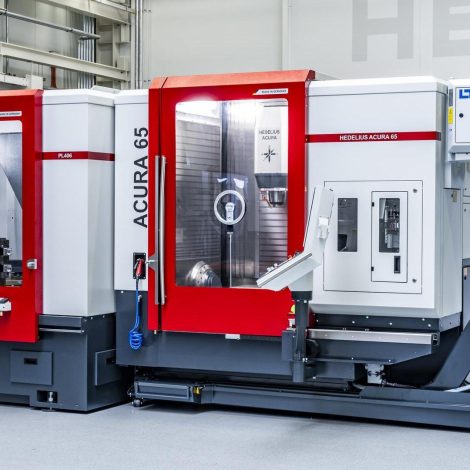

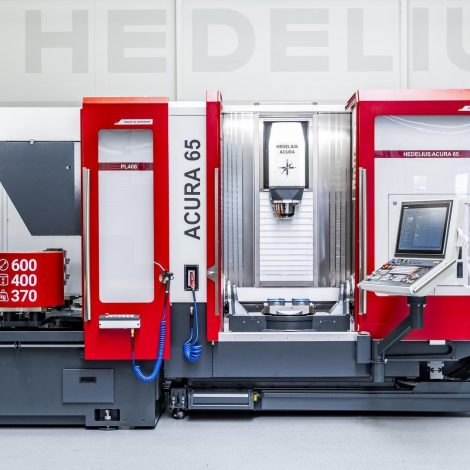

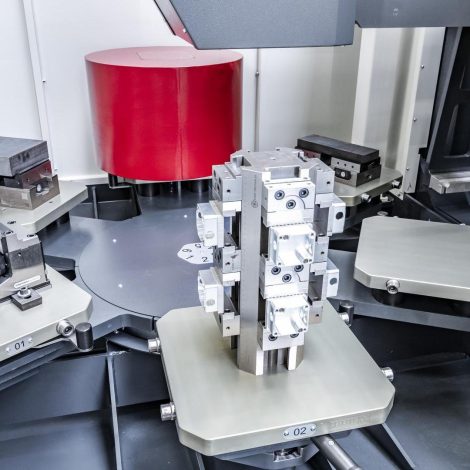

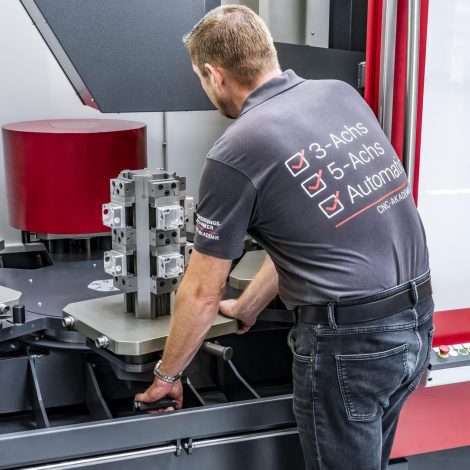

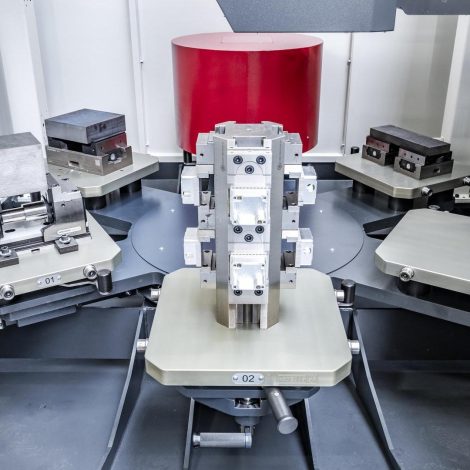

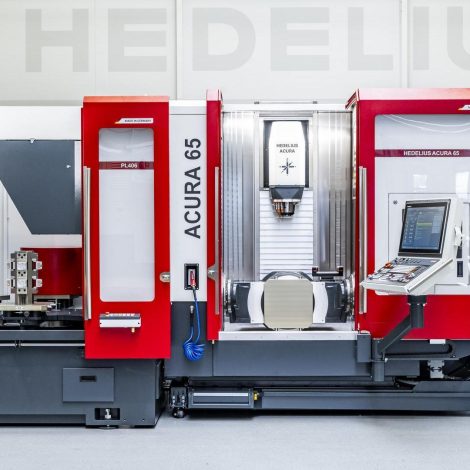

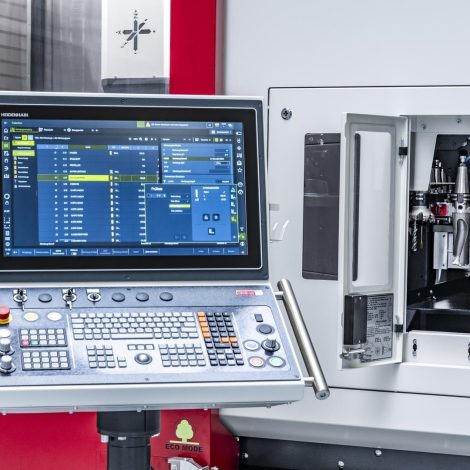

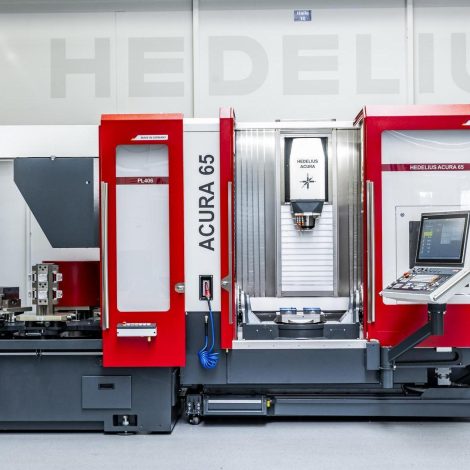

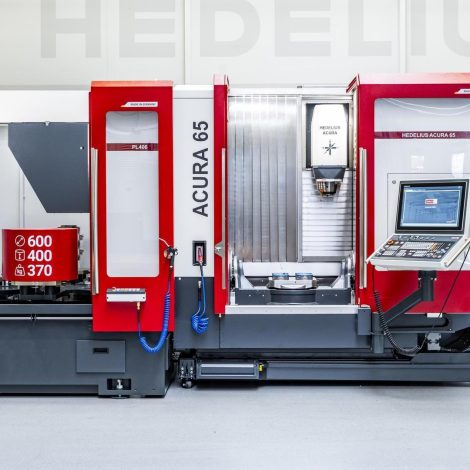

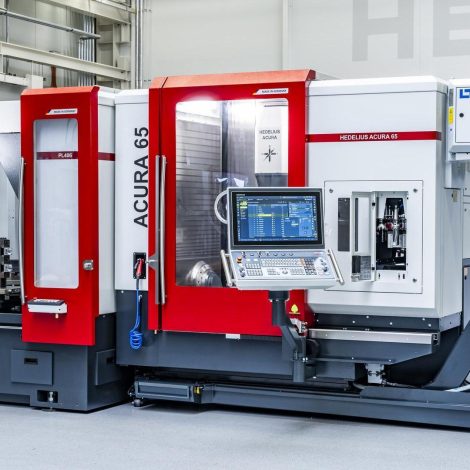

Set up the follow-up order with “zero” set-up time for individual parts or small to medium series? With a 5-axis machining centre from the ACURA series, the MARATHON PL406 as a device storage unit, and the Standby Magazin as a large tool storage unit, this becomes a reality. As with the MARATHON SR422, the seamless operating concept of the ACURA MARATHON with Heidenhain TNC, which is featured on the machine and on the tool terminal of the Standby Magazin, is also impressive. The pallet magazine has buttons for rotating the pallet carrier and for acknowledging blanks for easy operation. The job list is created on the Heidenhain controls in the Batch Process Manager.
Interface for
ACURA 50/ACURA 65/ACURA 85
Storage/retrieval station
No

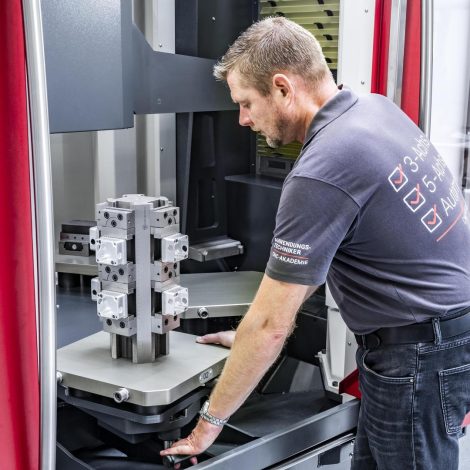

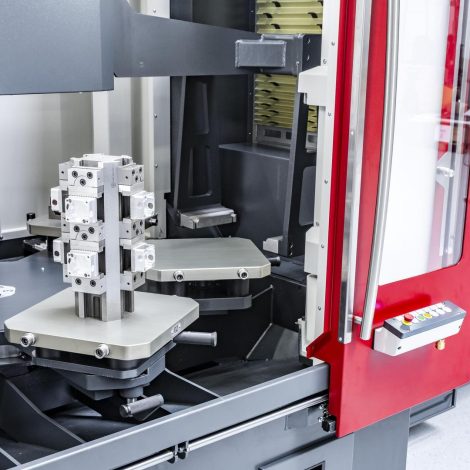

Pallet rotatable on set-up station
Yes
Number of pallets
6

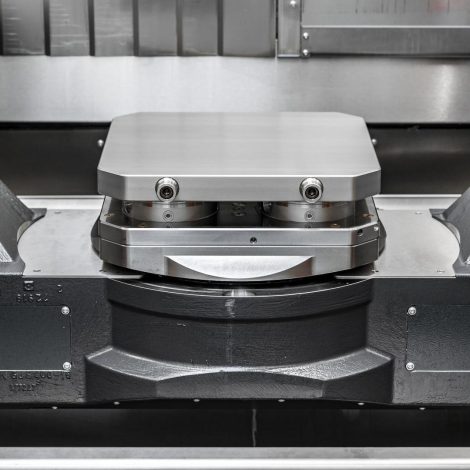

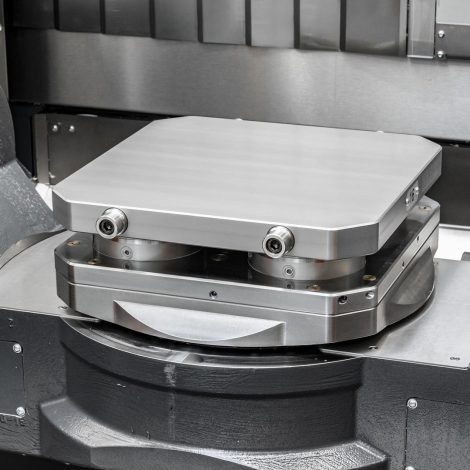

Pallet clamping surface
400x400 mm/400x500 mm
Handling weight
270 kg/370 kg
Multi-machine operation
No
