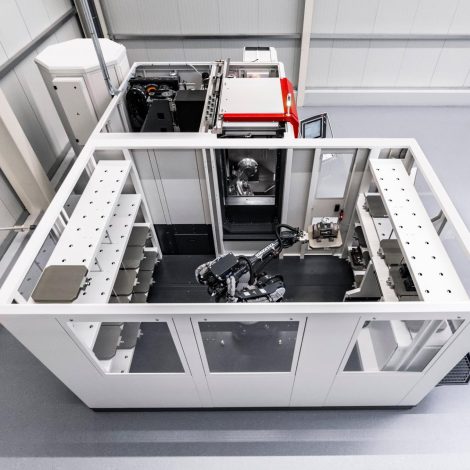

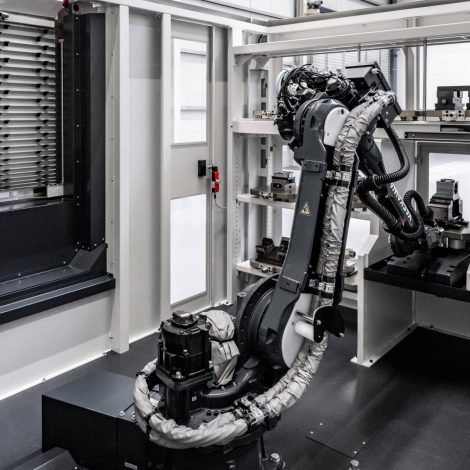

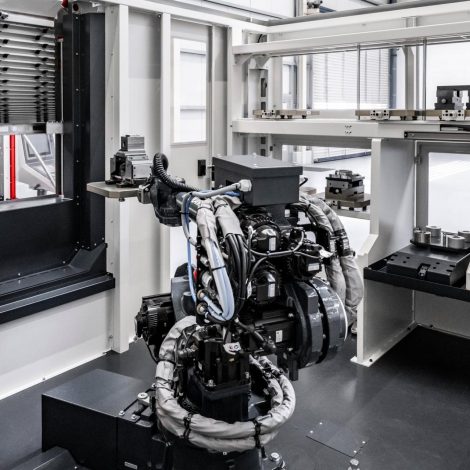

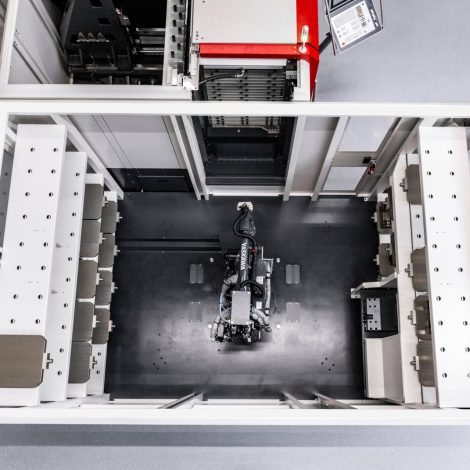

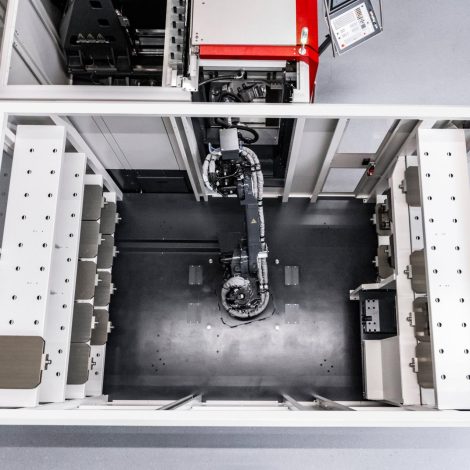

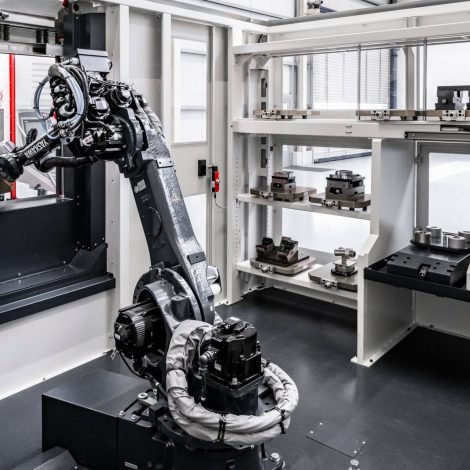

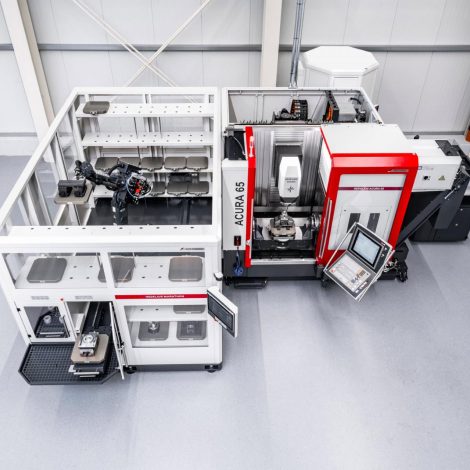

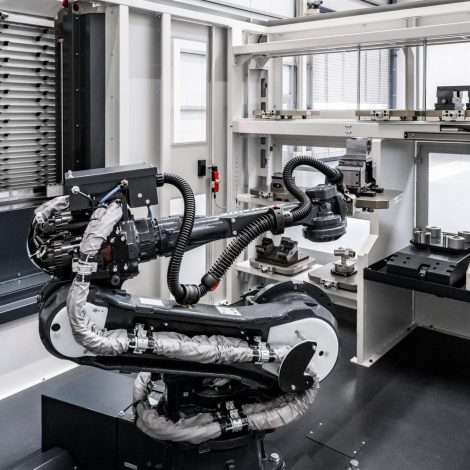

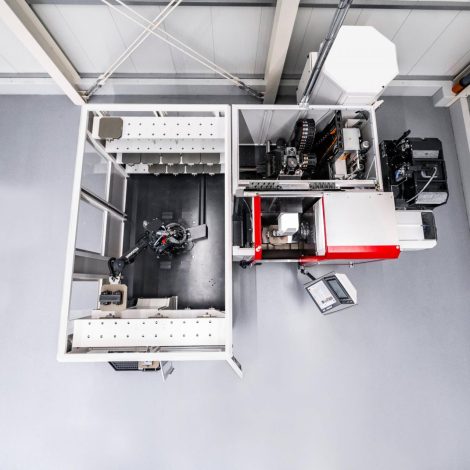

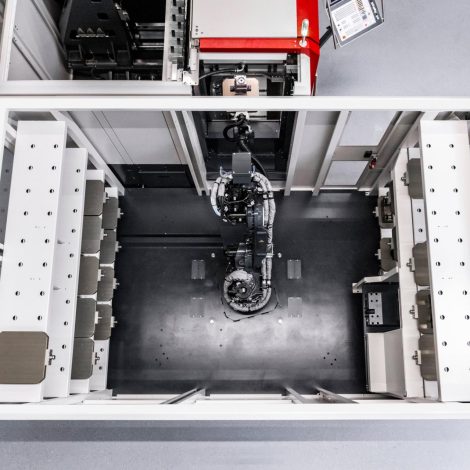

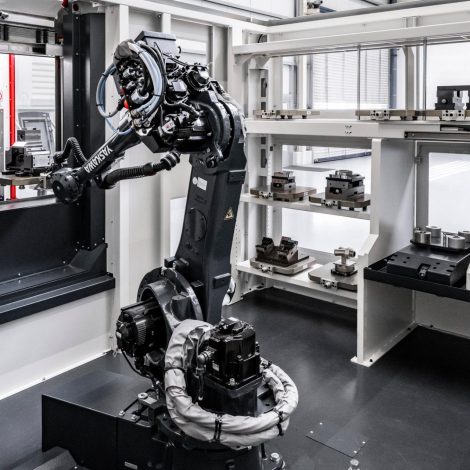

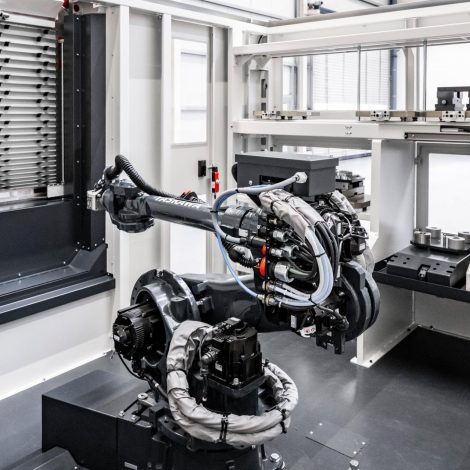

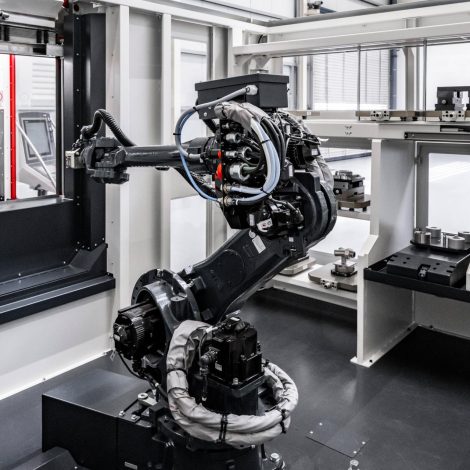

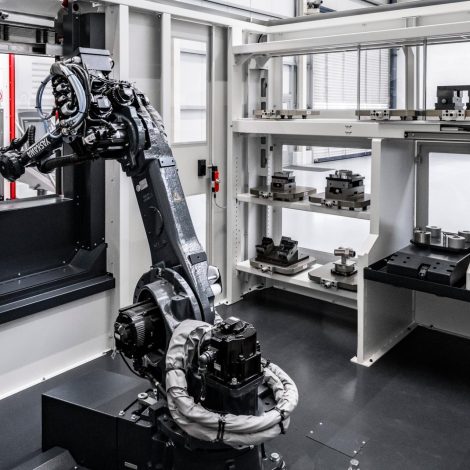

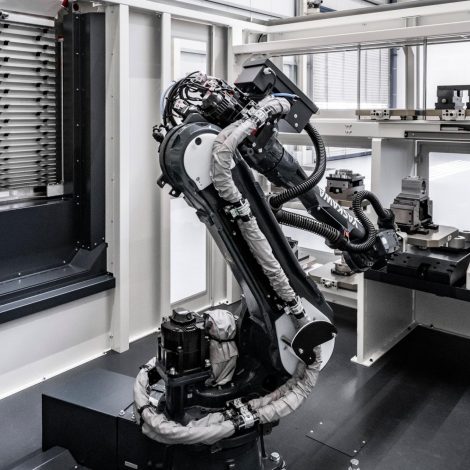

With up to 34 pallets, the MARATHON RZ430 multi-pallet magazine system is ideal when you need to produce individual parts as repeat parts or small to medium series. Pallet handling is carried out by a 6-axis YASKAWA robot with a payload of 88 kg (or optionally 110 kg). Two pull-out storage/retrieval stations guarantee maximum productivity, even with short program run times. A highlight is the MultibatchOS pallet and order management system, including an 18.5″ widescreen touch display.

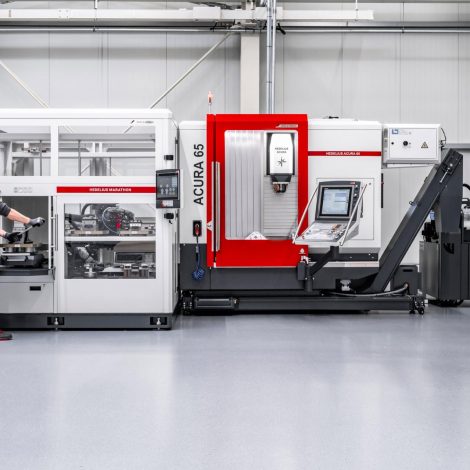

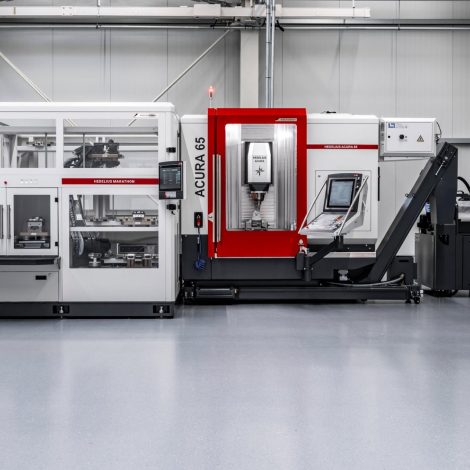

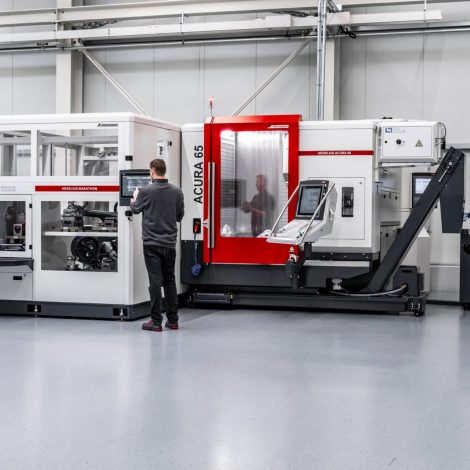

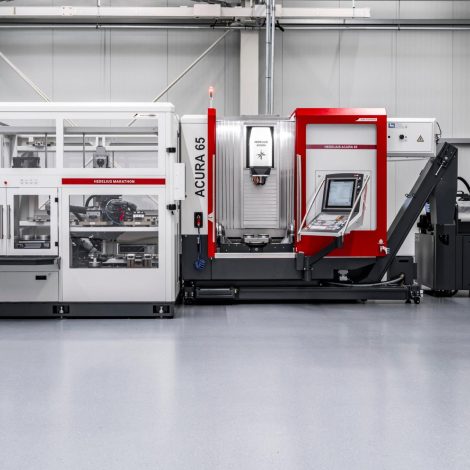

The automation system is perfect for use with the 5-axis machining centres ACURA 50 and ACURA 65.
Interface for
ACURA 50/ACURA 65

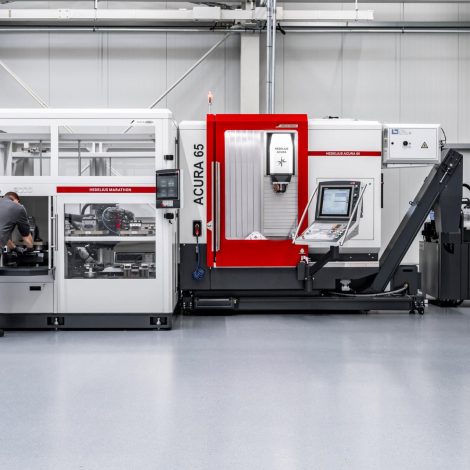

Storage/retrieval station
–
Pallet rotatable on set-up station
Yes
Number of pallets
34
Pallet clamping surface
400x400 mm
Handling weight
88 kg/110 kg
Multi-machine operation
No
