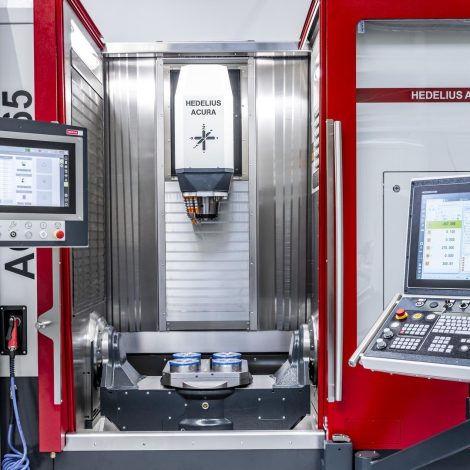

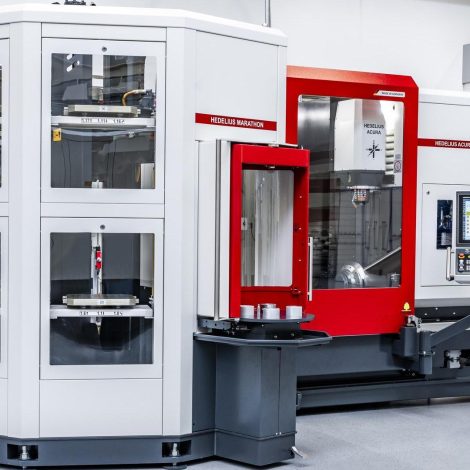

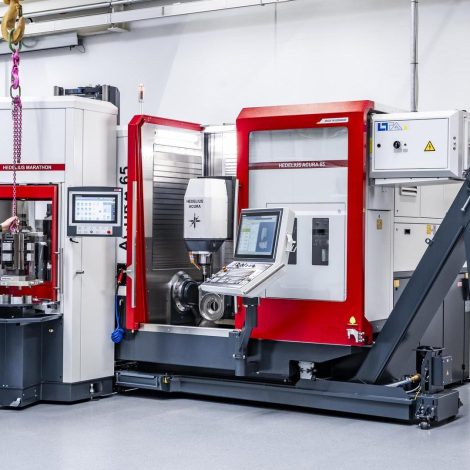

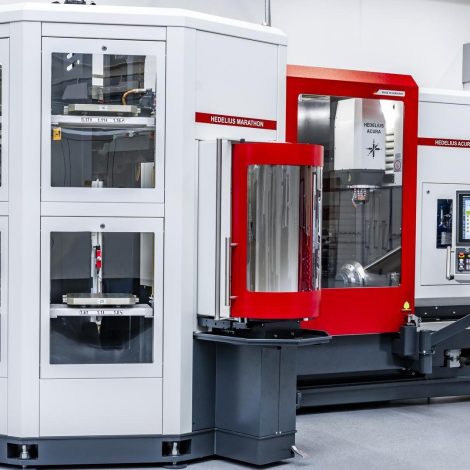

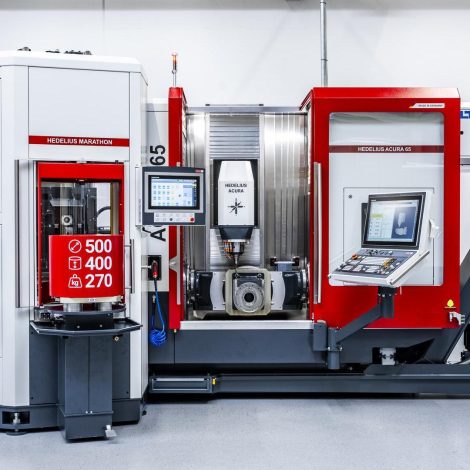

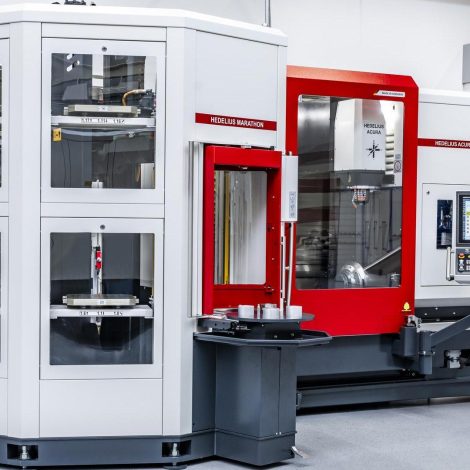

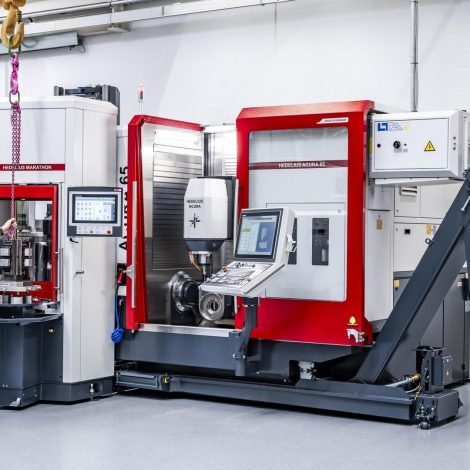

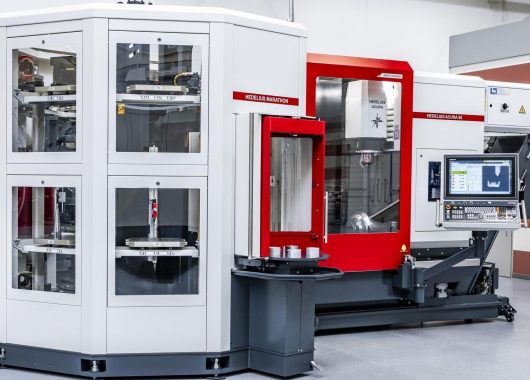

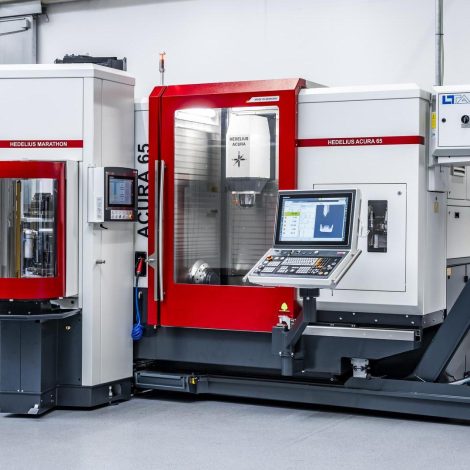

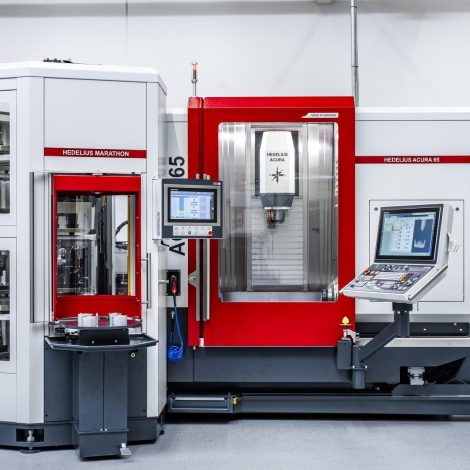

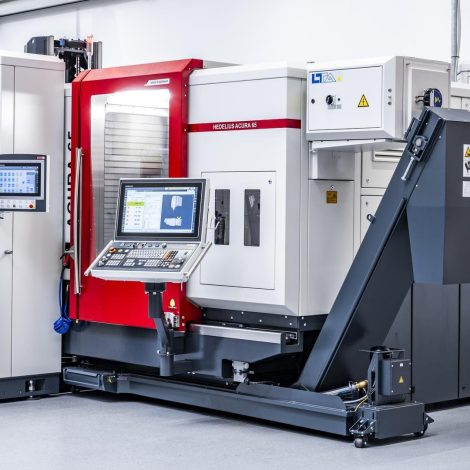

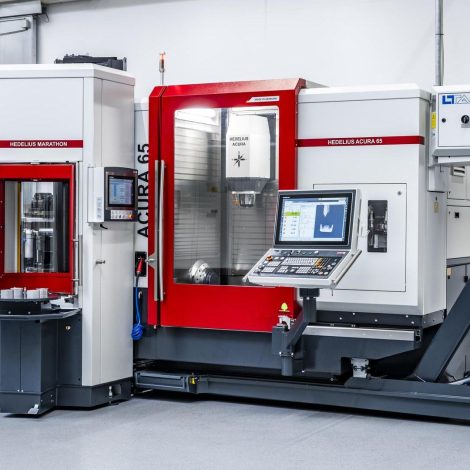

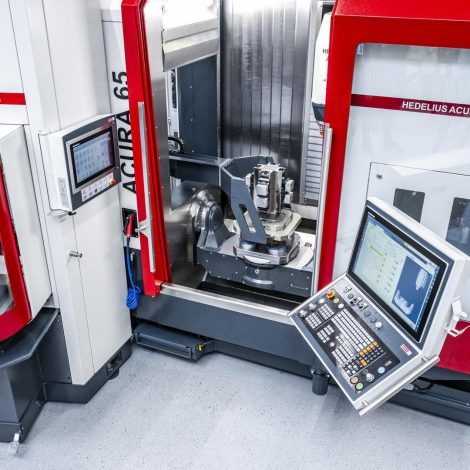

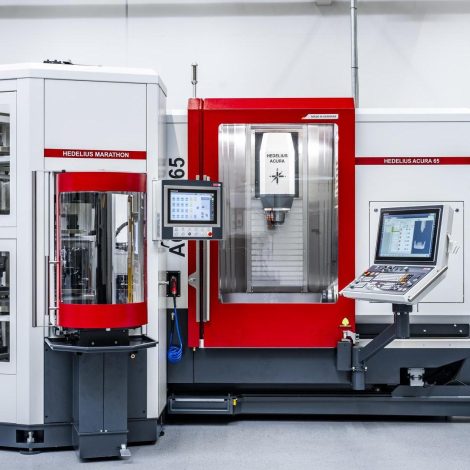

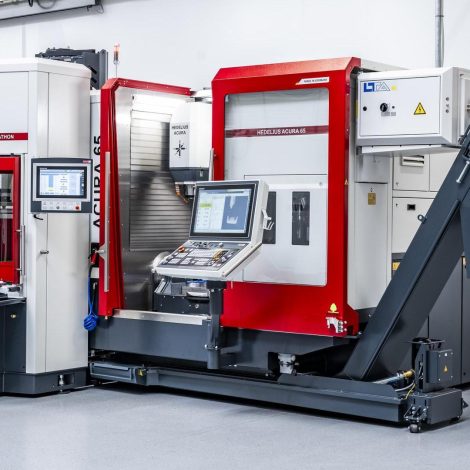

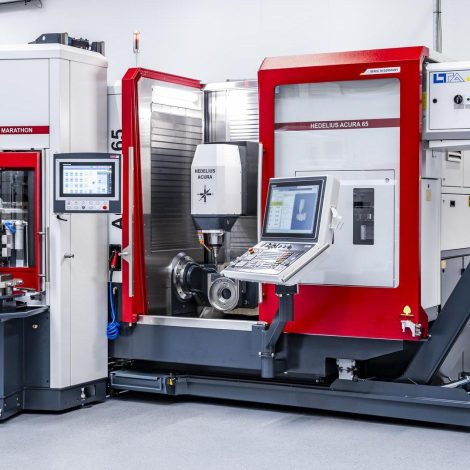

With 22 pallets, the MARATHON SR422 multi-pallet storage system is ideal for set-ups where individual parts have to be manufactured as small to medium series. One highlight is the non-stop operating concept of the ACURA 65 MARATHON, which features Heidenhain TNC controls. This concept extends to the machine, the tool terminal of the standby magazine and the terminal of the pallet storage system. The automated system is perfectly tailored to the ACURA 65 5-axis machining centre.
Interface for
ACURA 65

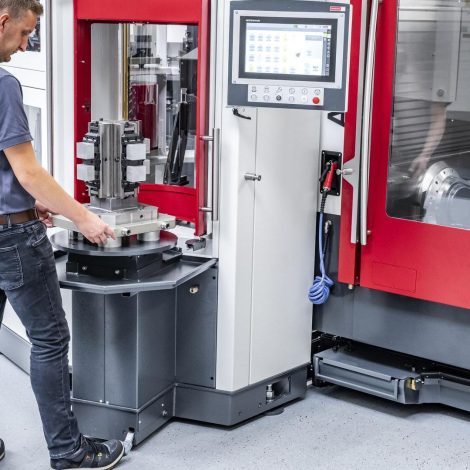

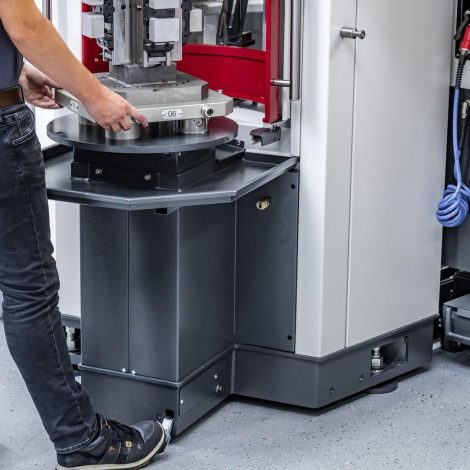

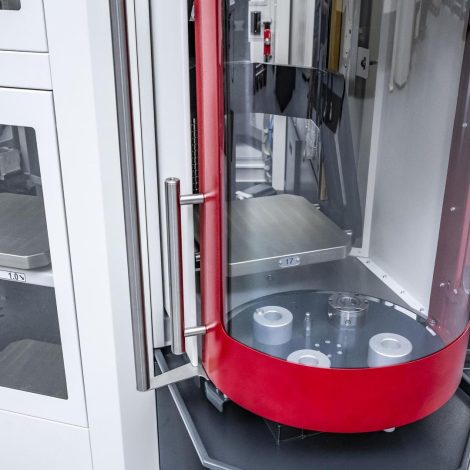

Storage/retrieval station
1-fold
Pallet rotatable on set-up station
Yes
Number of pallets
22
Pallet clamping surface
400x400 mm
Handling weight
270 kg
Multi-machine operation
No
