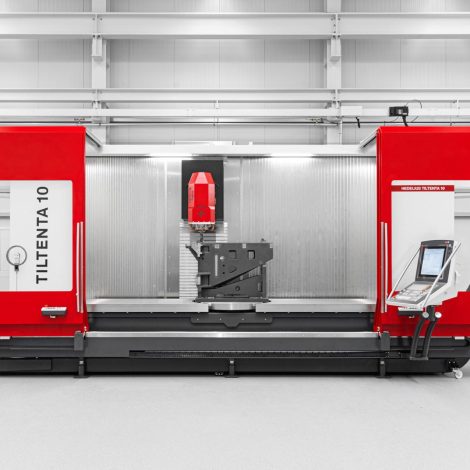

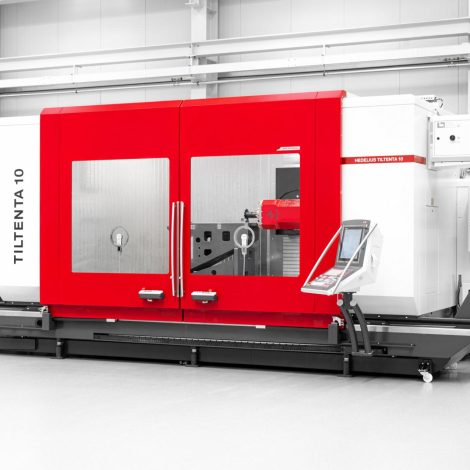

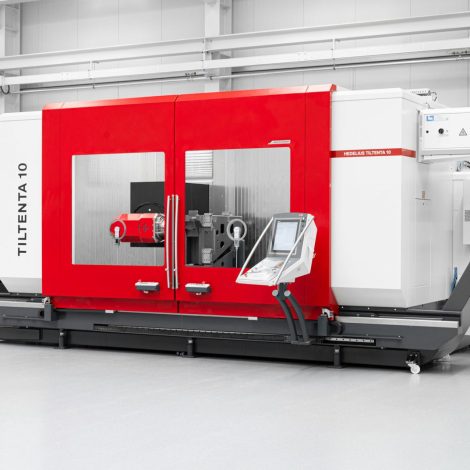

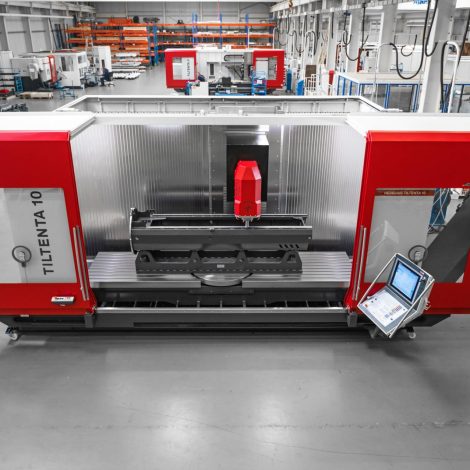

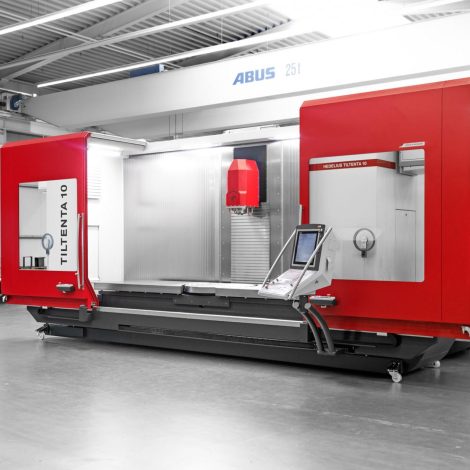

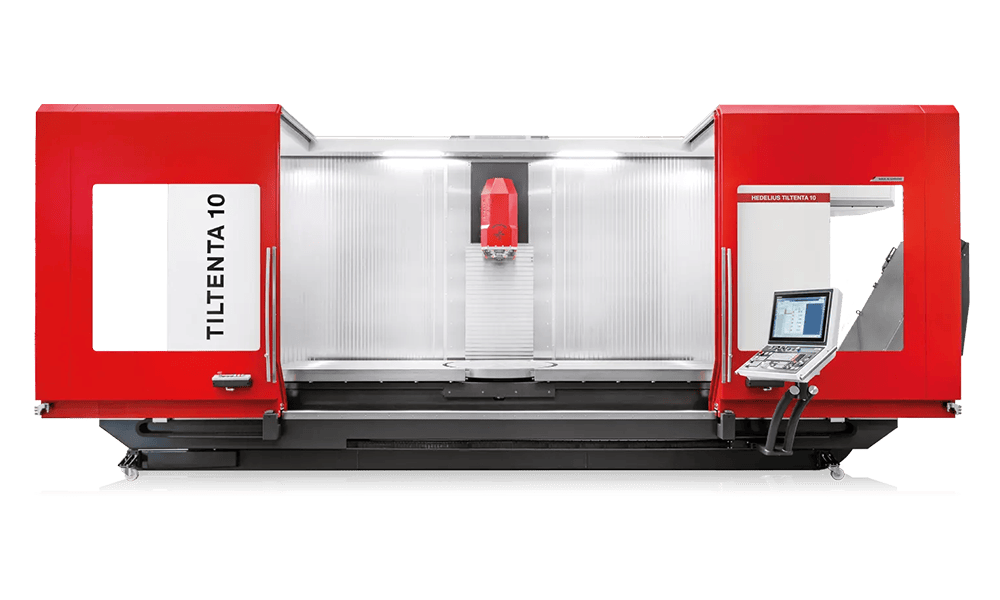

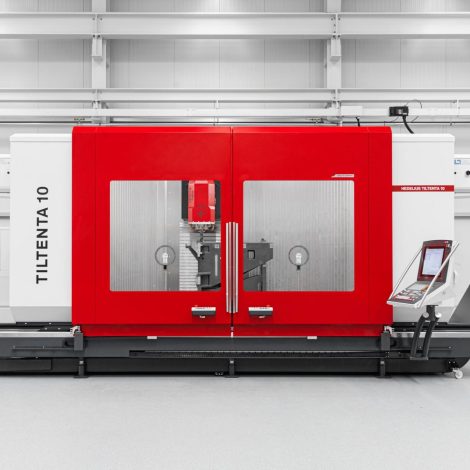

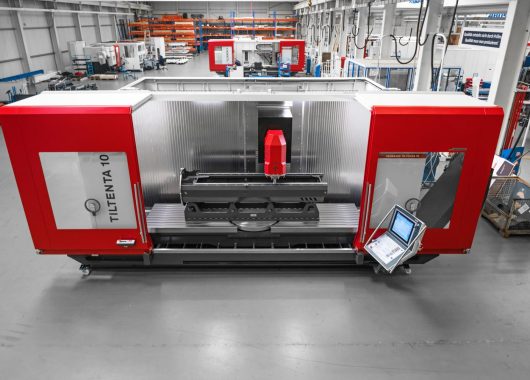

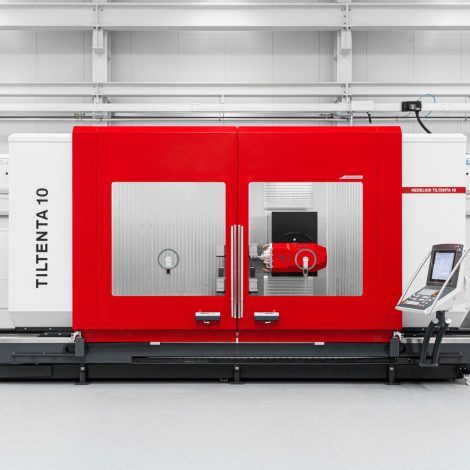

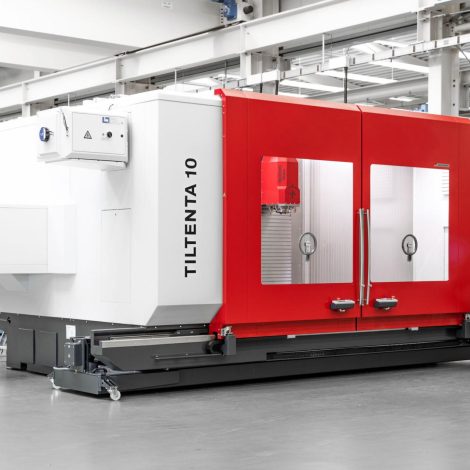

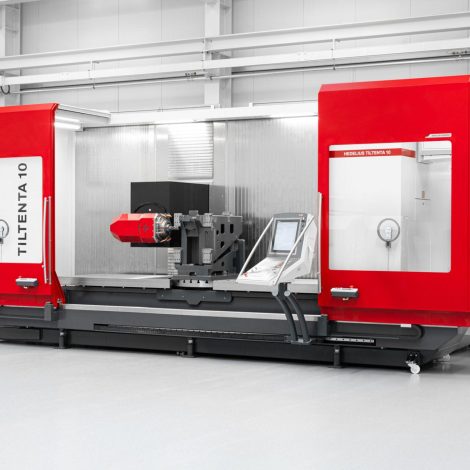

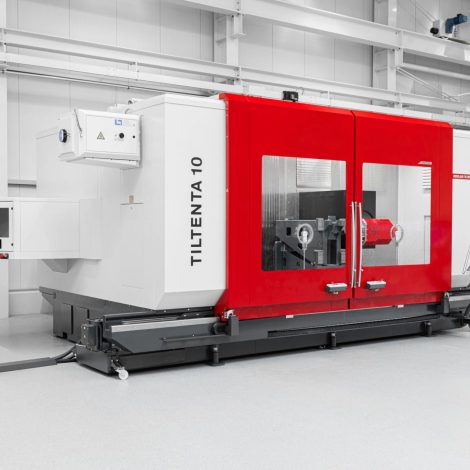

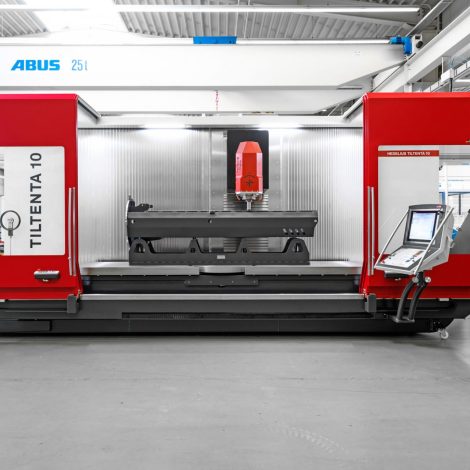

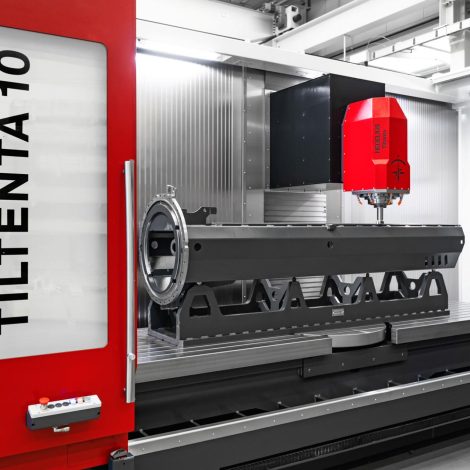

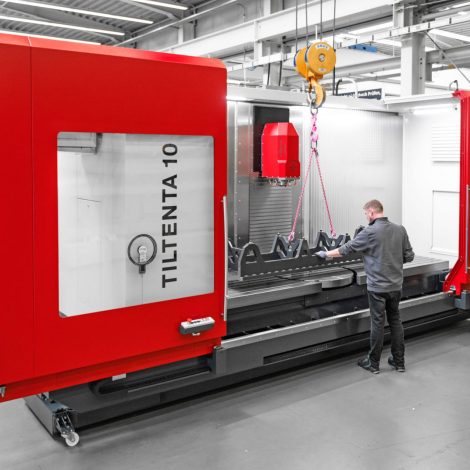

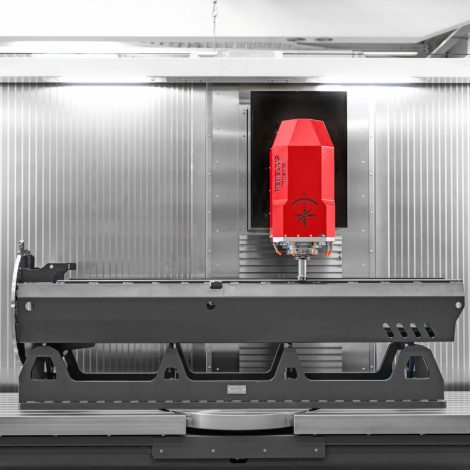

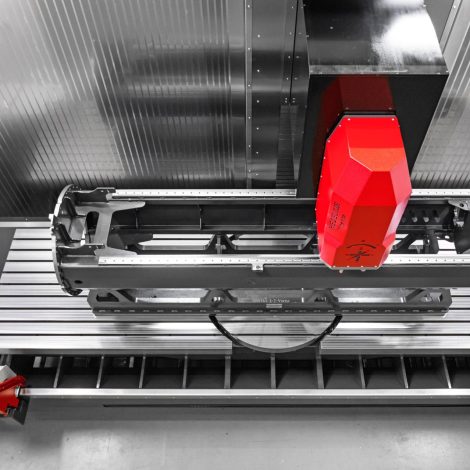

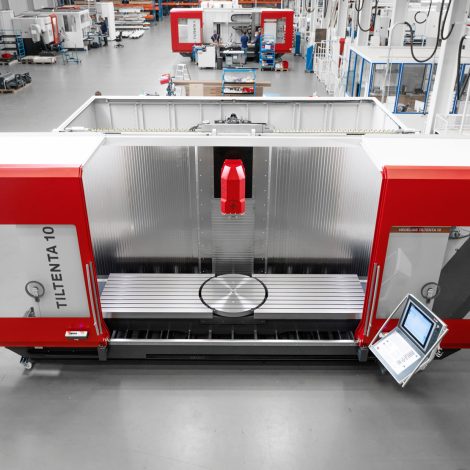

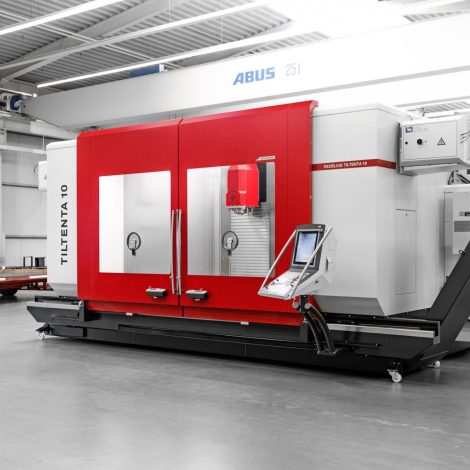

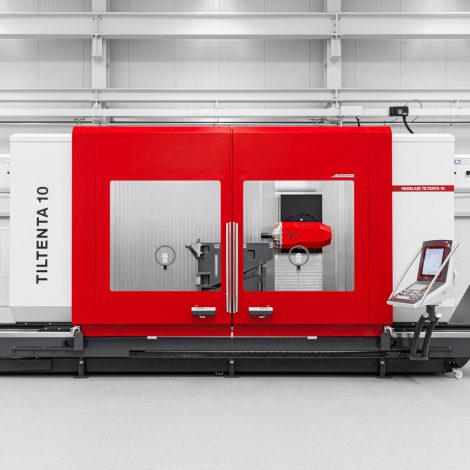

HEDELIUS has always been dedicated to building stable machining centres for a wide range of applications. The TILTENTA 10 rounds off the successful TILTENTA series, which has been manufactured hundreds of times. This machine also sets standards in machine and tool construction with traverse paths of 3600 x 1000 x 1000 (X/Y/Z) and an integrated heavy-duty rotary table with a table load up to 1,600kg / 2,200 kg (optional). The TILTENTA 10 is equipped with the SK50 BIG PLUS double-contact spindle system as standard (optional: HSK A100).

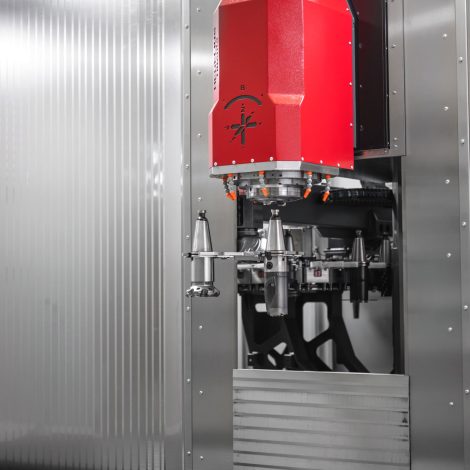

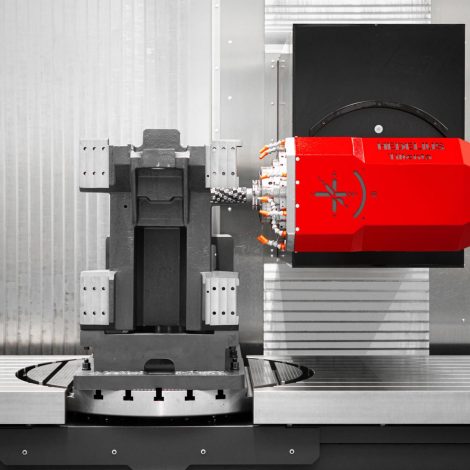

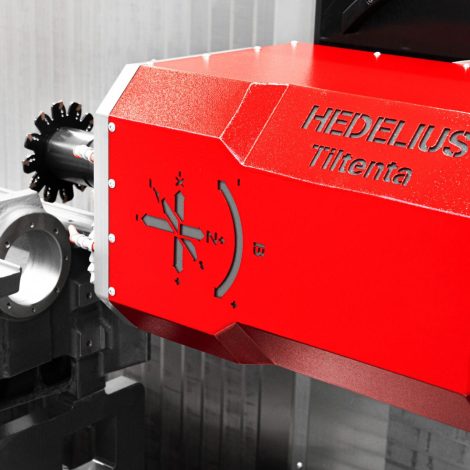

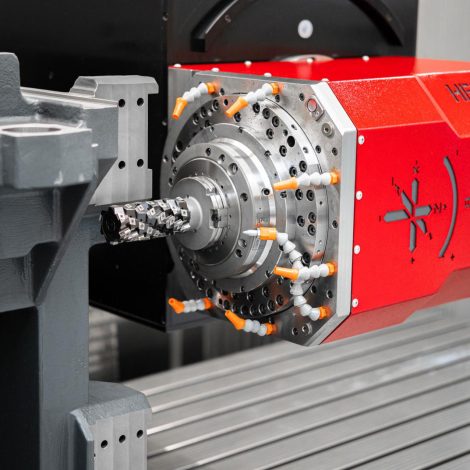

Clear superiority: BIG PLUS. The simultaneous taper and plane contact of the tool fitting in the BIG PLUS machine spindle ensures an extremely stable connection between the tool fitting and the spindle. The spindle is also compatible with all conventional SK50 fittings.
X-, Y-, Z-travel
3600/2760 x 1000 x 1000/1165 mm

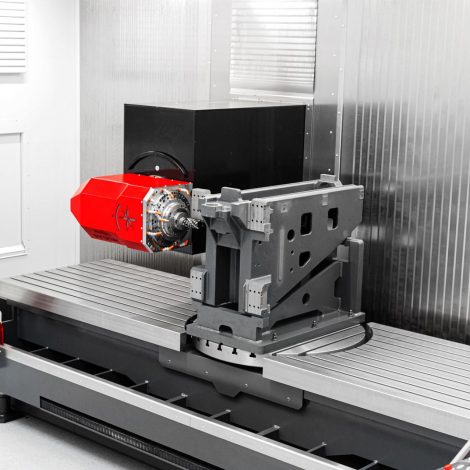

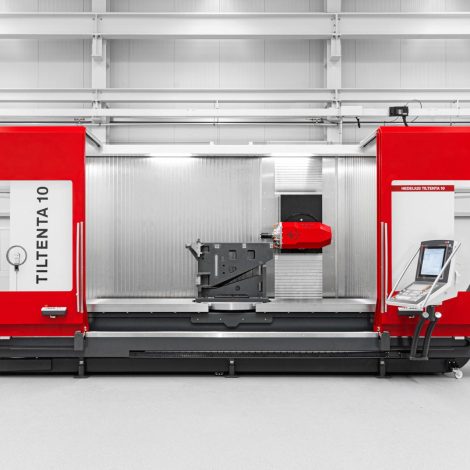

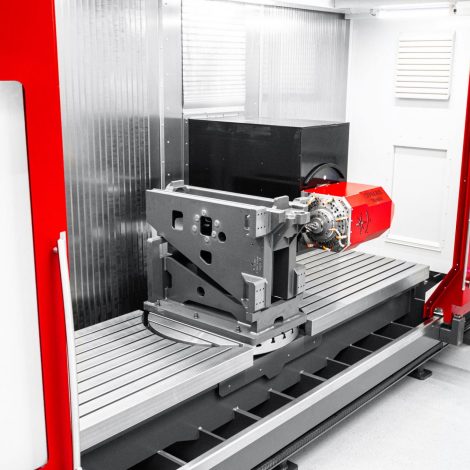

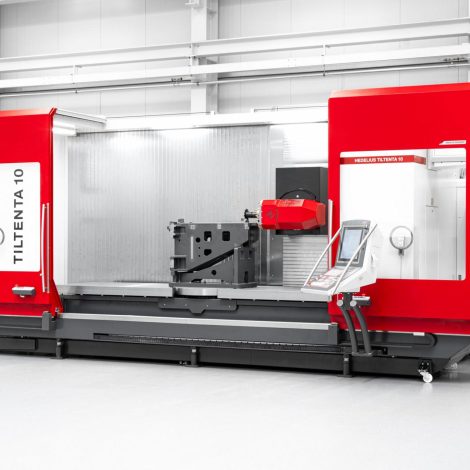

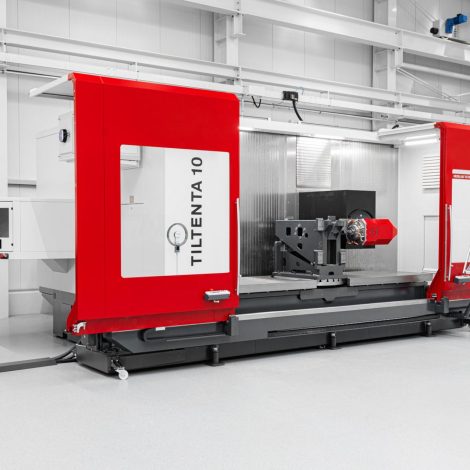

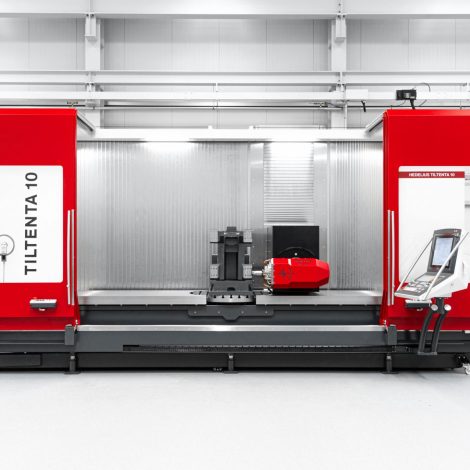

Swivel range
-5° – +98°/-98° – +98°
Speed range
8000/12000
Spindle power
50.00 kW
Number of tools
40/192 (max.)
Tool holder
SK50 / BT50 / HSK A100
Rapid traverse
40/40/40 m/min
Feed measurement system
direct
Control
Heidenhain / Sinumerik
Total clamping surface
4080 x 1000 mm

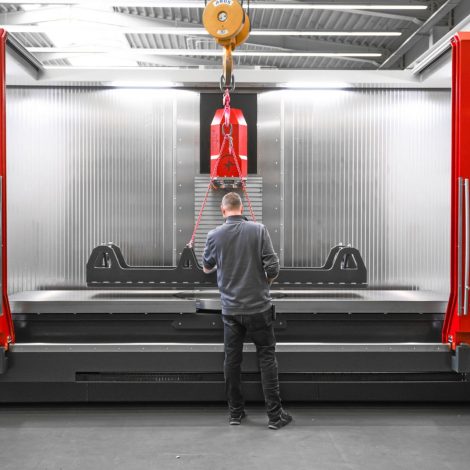

Fixed table load
5500 kg

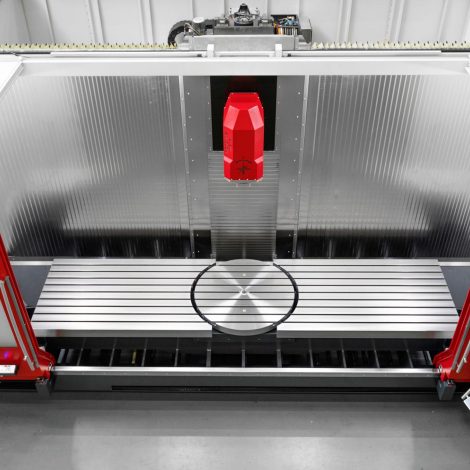

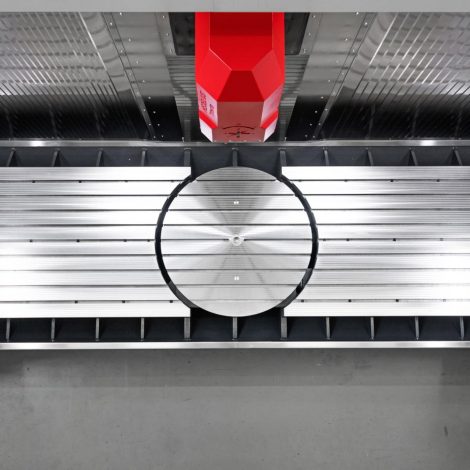

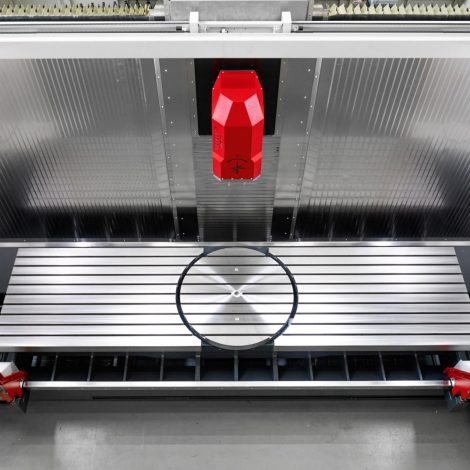

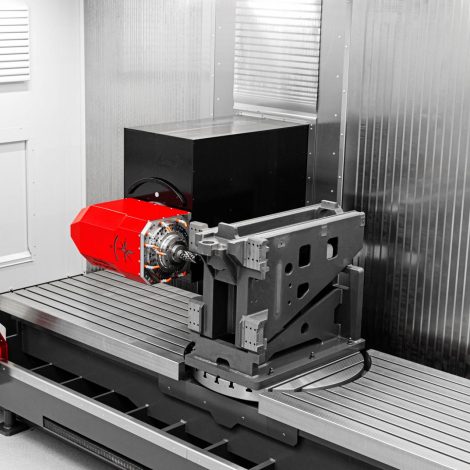

Clamping area round table
Ø 1000 mm
Load of the rotary table
1600/2200 kg
Diameter interference circle
Ø 1450 mm
