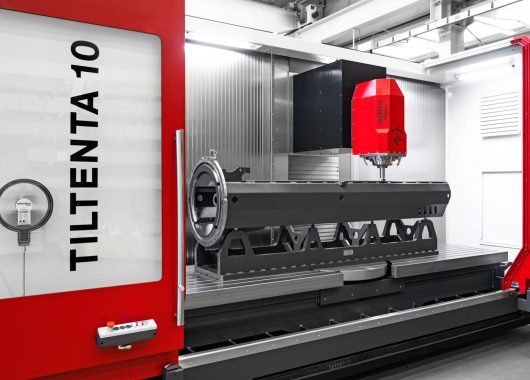

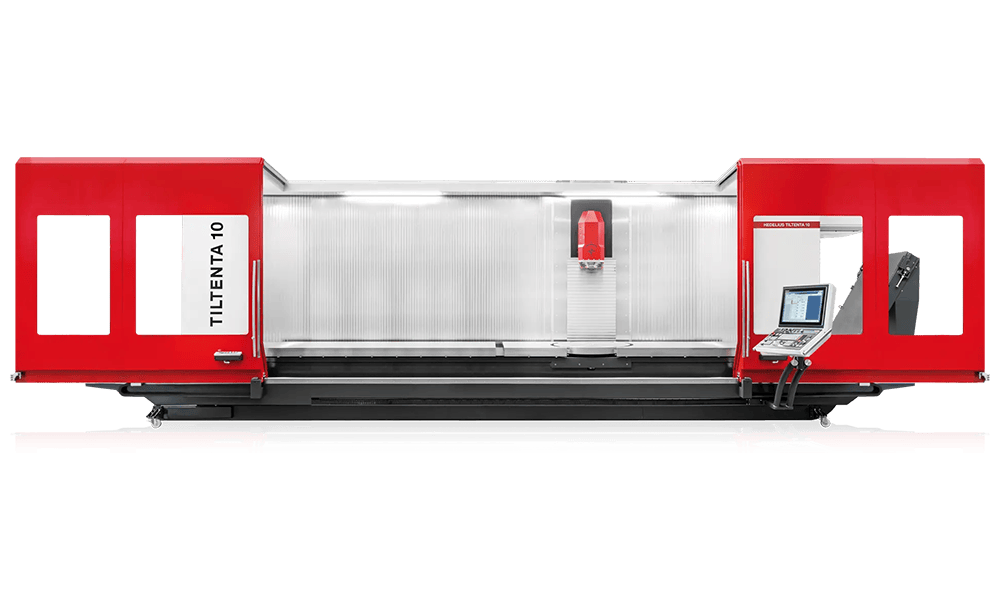

A HEDELIUS 5-axis travelling column machining centre from the TILTENTA 10 series holds all the trump cards when it comes to long and heavy workpieces. Full 5-axis machining up to 2,200 kg, vertical machining up to 6,200 mm, end face machining up to approx. 5,000 mm, oscillation mode machining, SK50 power, and all this with constant machine dynamics, regardless of the workpiece weight. Thanks to the moving tool magazine, you, the user, benefit from short chip-to-chip times over the entire travel path. With numerous accessories, such as pick-up magazines for extra-long tools or vertical rotary tables for shaft machining, this machine is suitable for flexible use and allows you to achieve optimum capacity utilisation and a rapid return on investment.
Clear superiority: BIG PLUS. The simultaneous taper and plane contact of the tool fitting in the BIG PLUS machine spindle ensures an extremely stable connection between the tool fitting and the spindle. The spindle is also compatible with all conventional SK50 fittings.
X-, Y-, Z-travel
6200/5360 x 1000 x 1000/1165 mm
Shuttle operation
2 x 2765 mm
Swivel range
-5° – +98°/-98° – +98°
Speed range
8000/12000
Spindle power
50.00 kW
Number of tools
40/192 (max.)
Tool holder
SK50 / BT50 / HSK A100
Rapid traverse
40/40/40 m/min
Feed measurement system
direct
Control
Heidenhain / Sinumerik
Total clamping surface
6680 x 1000 mm
Fixed table load
8000 kg
Clamping area round table
Ø 1000 mm
Load of the rotary table
1600/2200 kg
Diameter interference circle
Ø 1450 mm
