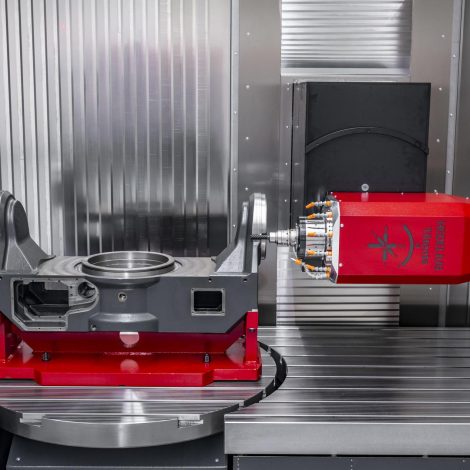

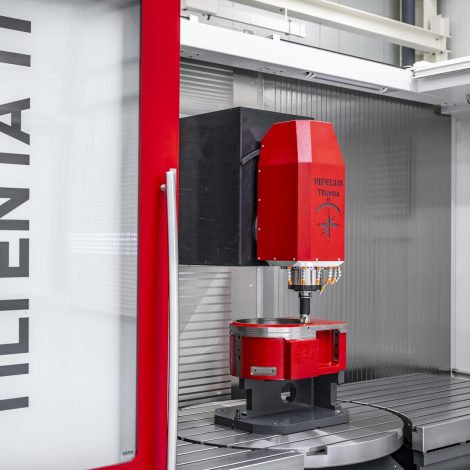

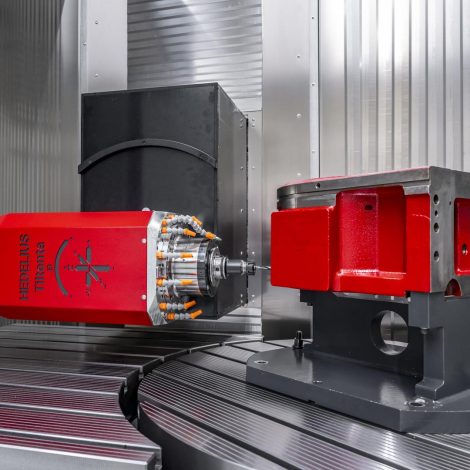

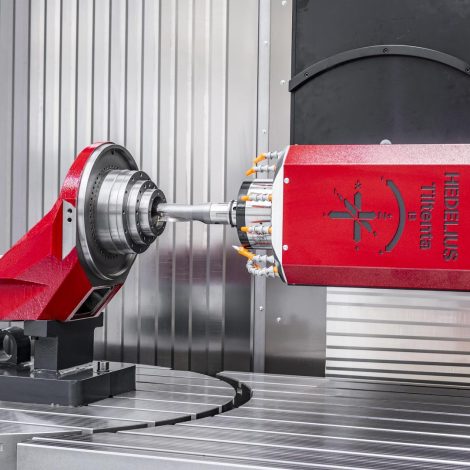

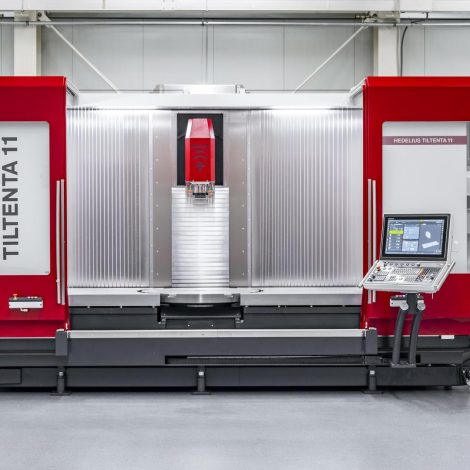

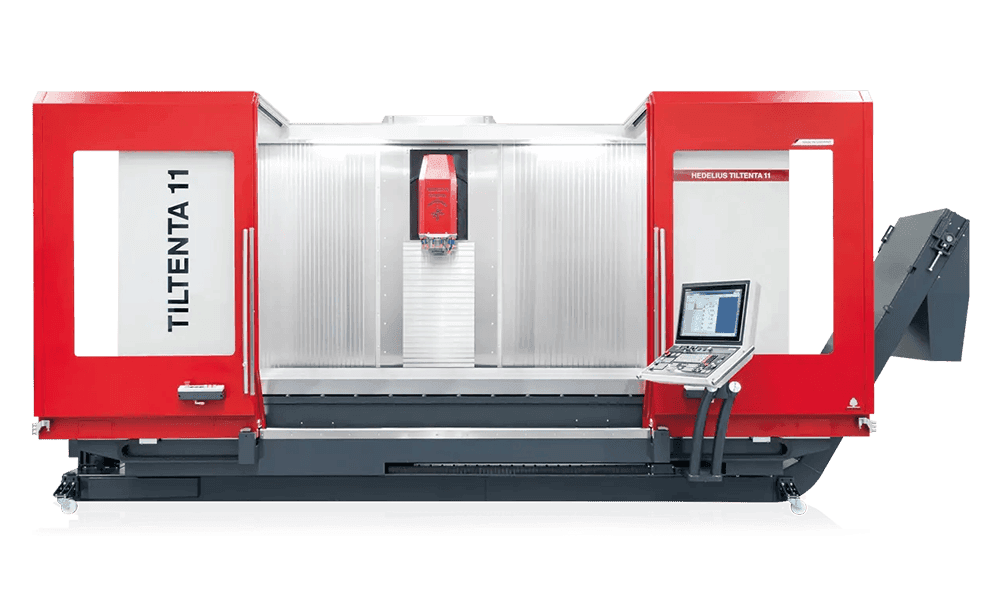

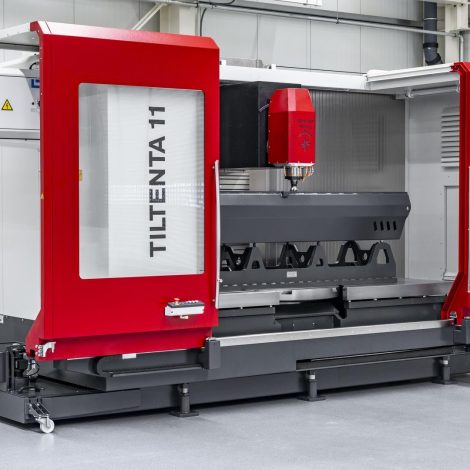

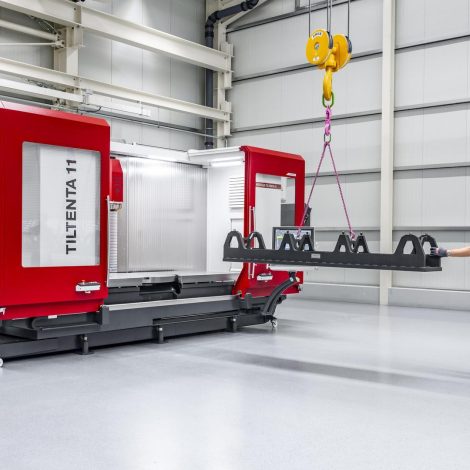

The TILTENTA-11 range from HEDELIUS is scaling new heights with its remarkable 1,100 mm Y travel path. The TILTENTA 11-2600 opens up new areas of application in the machining of individual parts and entire series in machine construction, tool making and vehicle manufacturing. The TILTENTA crossover concept solves all sorts of challenges, whether machining long workpieces or 5-sided complete machining with an integrated NC rotary table. The combination of a continuously pivotable main spindle and a long machine table with an integrated NC rotary table enables mixed manufacturing of large workpieces and precise 5-axis machining within the apparatus.
X-, Y-, Z-travel
2600/2030 x 1100 x 900/1005 mm
Swivel range
-5° – +98°/-98° – +98°
Speed range
14000/15000/18000
Spindle power
22.00/35.00/37.00/50.00 kW
Number of tools
65/245/329 (max.)
Tool holder
SK40 / BT40 / HSK A63
Rapid traverse
40/40/40 m/min
Feed measurement system
direct
Control
Heidenhain / Sinumerik
Total clamping surface
3080 x 1100 mm
Fixed table load
4000 kg
Clamping area round table
Ø 1140 mm
Load of the rotary table
1800 kg
Diameter interference circle
Ø 1450 mm
