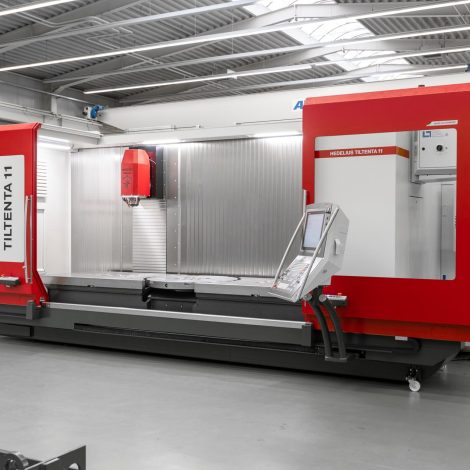

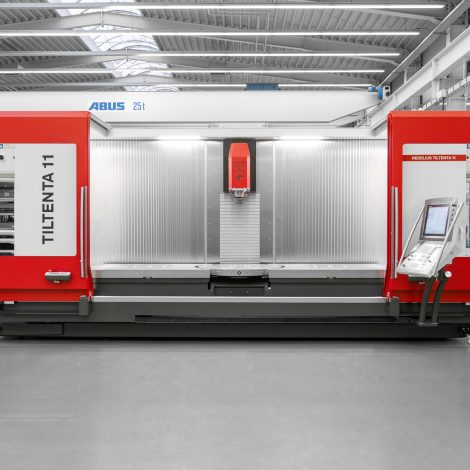

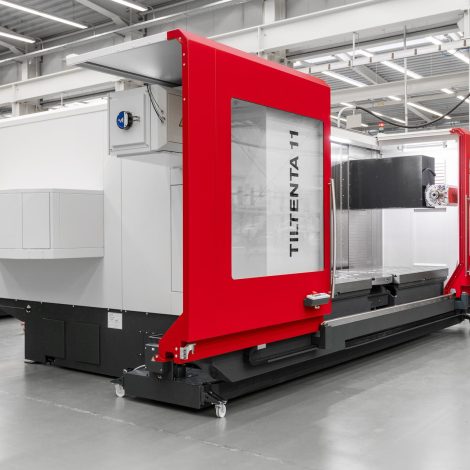

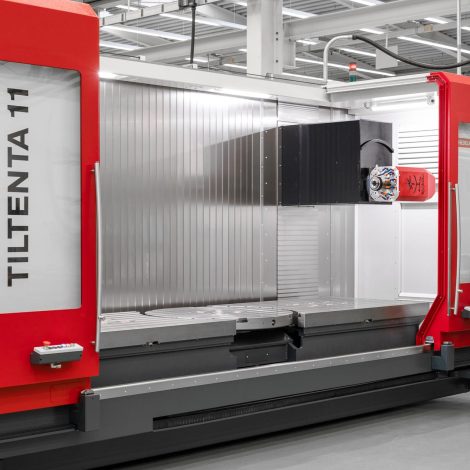

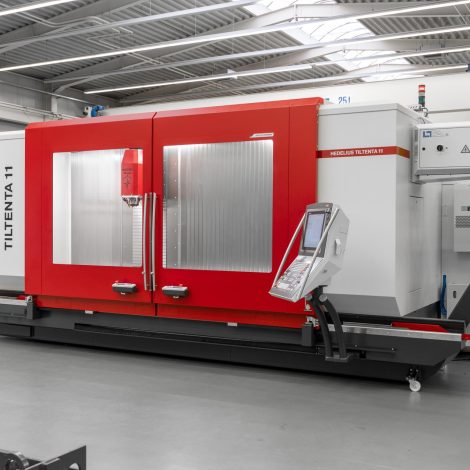

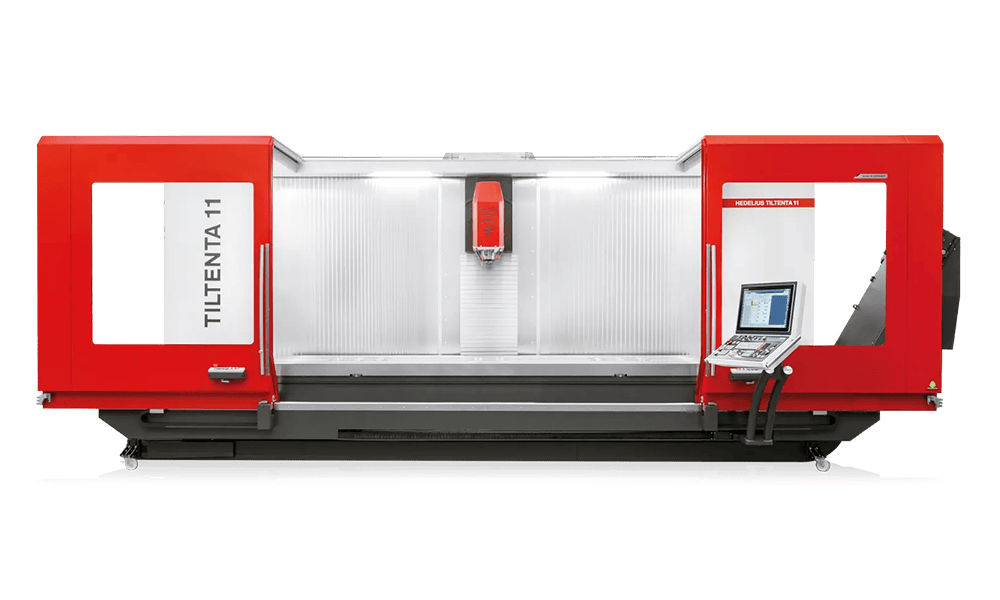

With 4 axes in the tool itself, the TILTENTA 11 has superb dynamics regardless of the weight of the workpiece, and thus provides the ideal conditions for rapid traverse of up to 40 metres per minute. Equipped with high-performance, liquid-cooled CELOX motorised spindles, this 5-axis machining centre impresses users with its high cutting performance and precision. The large-scale X, Y and Z axes and the rigid machine base are truly raising the bar.
X-, Y-, Z-travel
3600/3030 x 1100 x 900/1005 mm
Swivel range
-5° – +98°/-98° – +98°
Speed range
14000/15000/18000
Spindle power
22.00/35.00/37.00/50.00 kW
Number of tools
65/245/329 (max.)
Tool holder
SK40 / BT40 / HSK A63
Rapid traverse
40/40/40 m/min
Feed measurement system
direct
Control
Heidenhain / Sinumerik
Total clamping surface
4080 x 1100 mm
Fixed table load
5000 kg

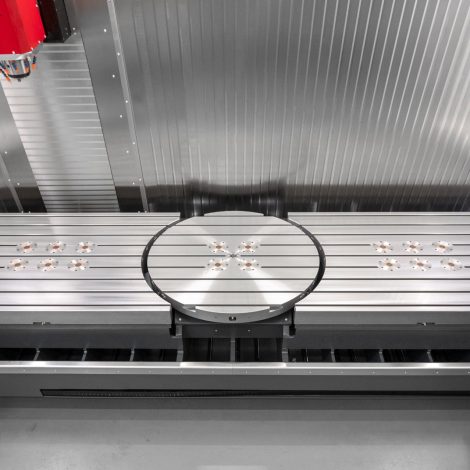

Clamping area round table
Ø 1140 mm
Load of the rotary table
1800 kg
Diameter interference circle
Ø 1450 mm
