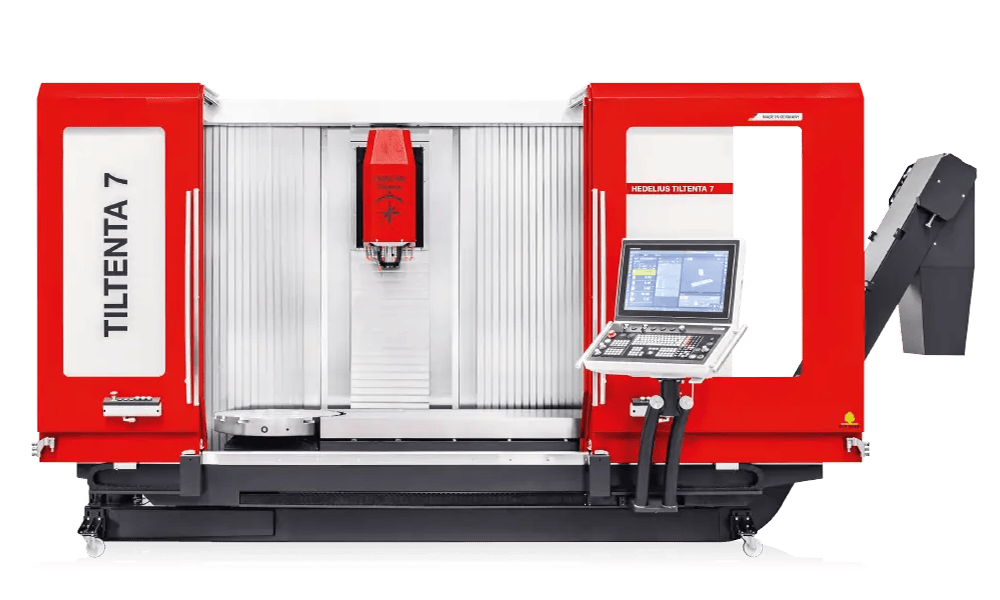

TILTENTA 7-2000 NEO Compact and automation-capable.

T7 2000 NEO 1R
  • Versatile 5-axis machining centres from the T series
  • CNC milling machine with swivelling main spindle
  • Integrated NC rotary table with high table load
  • 5-axis machining
  • Up to 309 tools in the magazine reduce your tooling times
  • Suitable for automation, for efficient and uninterrupted production
Request a Quote

Compact and automation-capable: These two statements characterise the TILTENTA 7 NEO. With a 2000 mm X travel path, the infinitely variable swivelling main spindle and the integrated 5-axis rotary table for workpieces up to 800 kg and 1050 mm in diameter, HEDELIUS offers an uncompromising universal machining centre. Whether aluminium, grey cast iron or tool steel, with this CNC machining centre, you can take care of a wide range of machining tasks in machine, tool and vehicle construction. The many automation solutions are a further highlight.

Technical Data

X-, Y-, Z-travel

2000/1430 x 700 x 735/800 mm

Swivel range

-5° – +98°/-98° – +98°

Speed range

14000/18000

Spindle power

22.00/29.00/35.00 kW

Number of tools

45/225/309 (max.)

Tool holder

SK40 / BT40 / HSK A63

Rapid traverse

40/40/40 m/min

Feed measurement system

direct

Control

Heidenhain / Sinumerik

Total clamping surface

2300 × 700 mm

Fixed table load

2000 kg

Clamping area round table

Ø 700 mm

Load of the rotary table

800 kg

Diameter interference circle

Ø 1050 mm

Space requirements (PDF) Dimensions (PDF) Spindle performance (PDF) Request a Quote

Control Options

Heidenhain
Sinumerik
