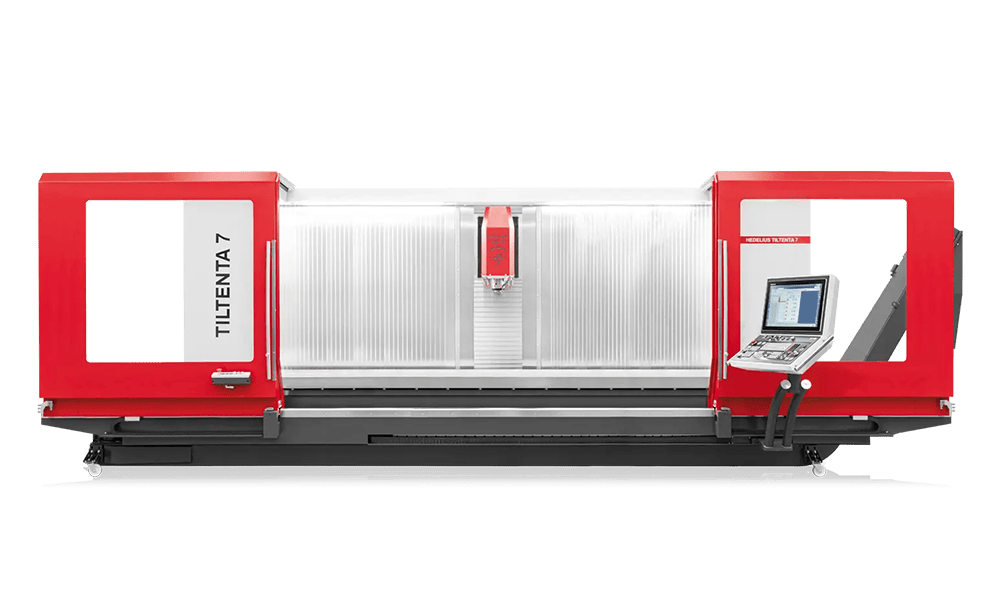

The TILTENTA 7-3600 NEO, equipped with one or two integrated NC rotary tables (option) and a workspace partition, allows an economical mass production of large and heavy workpieces. The change from one to another workspace during pendulum operation requires only 10 seconds. Without a workspace partition the large workspace can be used for vertical machining of long workpieces with up to 3600 mm.
X-, Y-, Z-travel
3600/3030 x 700 x 695/800 mm
Shuttle operation
1800/1340 mm
Swivel range
-5° – +98°/-98° – +98°
Speed range
14000/18000
Spindle power
22.00/29.00/35.00 kW
Number of tools
45/225/309 (max.)
Tool holder
SK40 / BT40 / HSK A63
Rapid traverse
40/40/40 m/min
Feed measurement system
direct
Control
Heidenhain / Sinumerik
Total clamping surface
4080 x 700 mm
Fixed table load
3000 kg
Clamping area round table
Ø 700 mm
Load of the rotary table
800 kg
Diameter interference circle
Ø 1050 mm
