TILTENTA 9-2600 Highly flexible with pivotable main spindle

T9 2600 1R

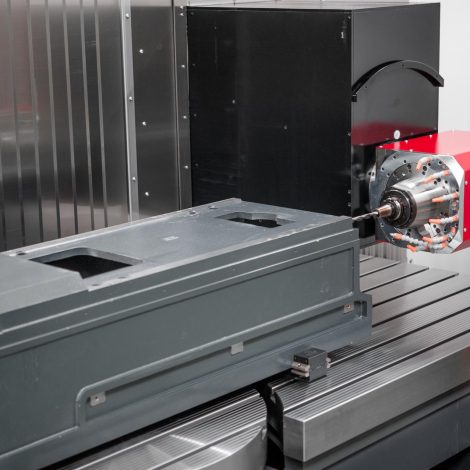

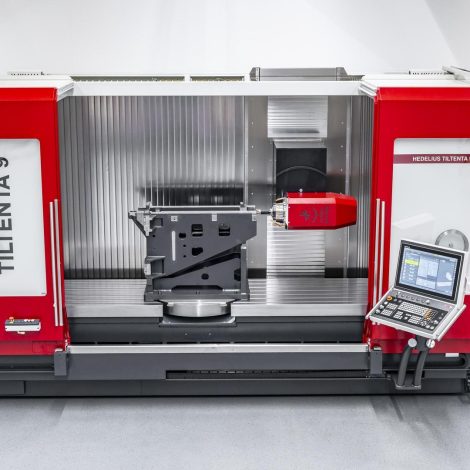

  • Versatile 5-axis machining centre with pivotable main spindle

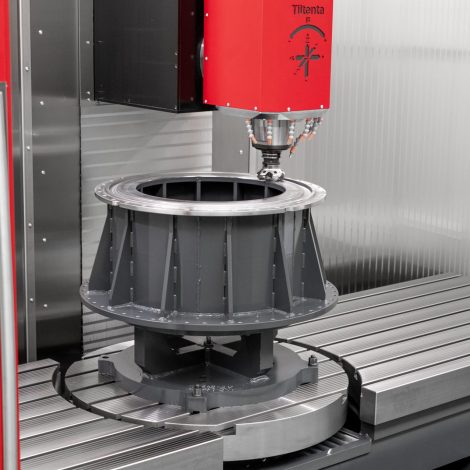

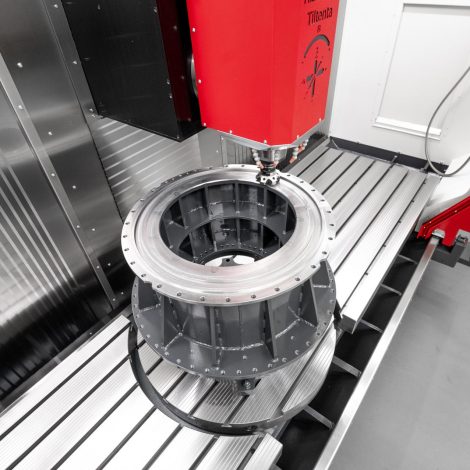

  • High table loading capacity up to 3000 kg

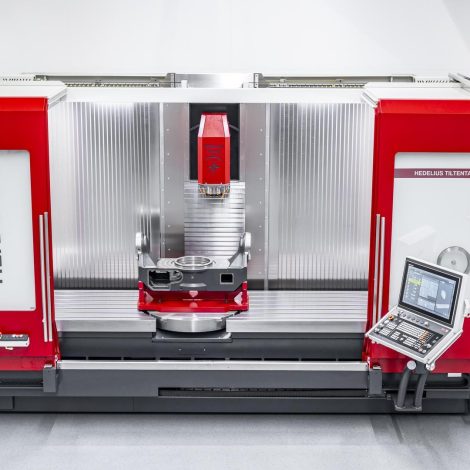

  • Optionally available with integrated heavy-duty rotary table (table load up to 1800 kg)
  • Highest accuracy through four axes in the tool and one axis in the workpiece
  • Fast tool changer
Request a Quote

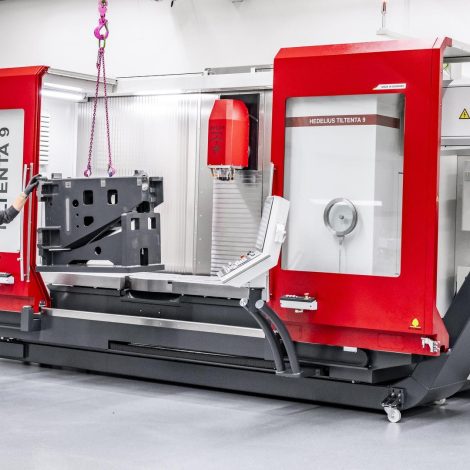

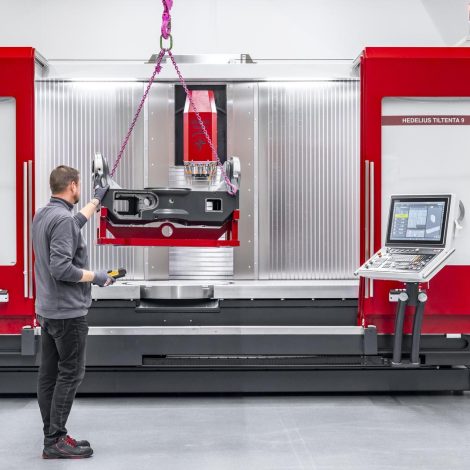

The moving-column machining centre TILTENTA 9-2600 is fully enclosed and, what is more, it offers unrestricted access for loading by crane. As standard, the machine comes with a Heidenhain TNC control system with touch display, standard keypad and rapid feed potentiometer. A Sinumerik ONE / 840 D sl is optionally available.

Technical Data

X-, Y-, Z-travel

2600/2030 x 900 x 900/1005 mm

Swivel range

-5° – +98°/-98° – +98°

Speed range

14000/15000/18000

Spindle power

22.00/35.00/37.00/50.00 kW

Number of tools

60/240/324 (max.)

Tool holder

SK40 / BT40 / HSK A63

Rapid traverse

40/40/40 m/min

Feed measurement system

direct

Control

Heidenhain / Sinumerik

Total clamping surface

3080 x 900 mm

Fixed table load

3000 kg

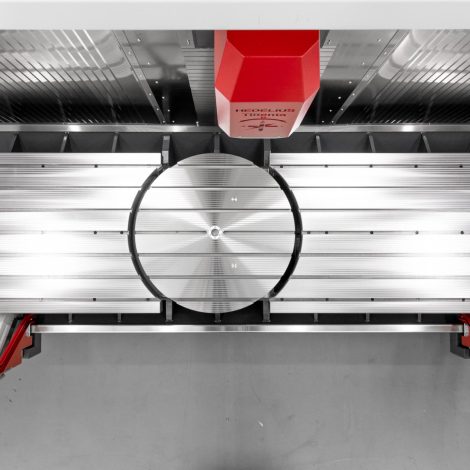

Clamping area round table

Ø 900 mm

Load of the rotary table

1200/1800 kg

Diameter interference circle

Ø 1250 mm

Space requirements (PDF) Dimensions (PDF) Spindle performance (PDF) Request a Quote

Gallery

Control Options

Heidenhain
Sinumerik
