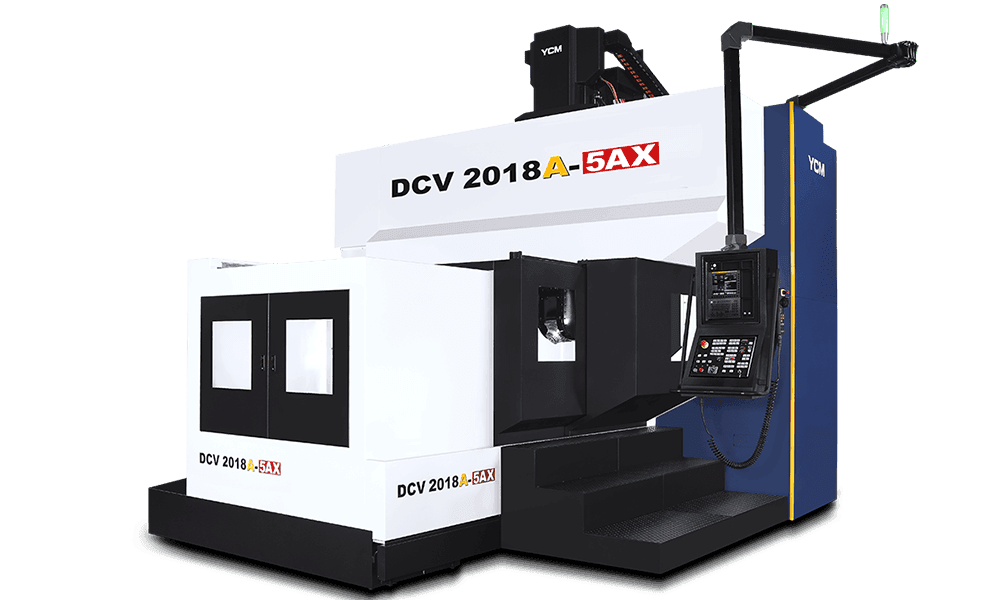

DCV 2018A-5AX, a 5-axis double column vertical machining centre, is combined with the advanced manufacturing technology of 5-axis milling head that integrates accuracy, rigidity and efficiency into this ultimate machining centre.
Spindle Speed (Opt.)
18,000 rpm
Spindle Power (Opt.)
70 kW
Spindle Taper (Opt.)
HSK A63
X-axis Travel
2,200 mm
Y-axis Travel
2,400 mm
Z-axis Travel (Opt.)
762(1,016) mm
Distance Between Spindle Nose & Table Top
30" Vertical: 150-912 Horizontal: 430-1192 / 40" Vertical: 150-1116 Horizontal: 430-1446 (mm)
Distance Between Columns
1,800 mm
Table Size
2,000×1,500 mm
No. T-slot x Size x Pitch
8×22×180 mm
Max. Load on Table
8,000 kg
X/Y/Z Rapid Feedrate
24 / 24 / 20 m/min
Cutting Feedrate
1~20,000 mm/min
Tool Magazine Capacity (Opt.)
40 ( 60 / 120 ) T
Tool Weight
6 kg/pc
Max. Tool Dimension (W/O Adjacent Tools)
ø 76 x 300(ø125 x 300) mm
Machine Weight
28,000 kg
