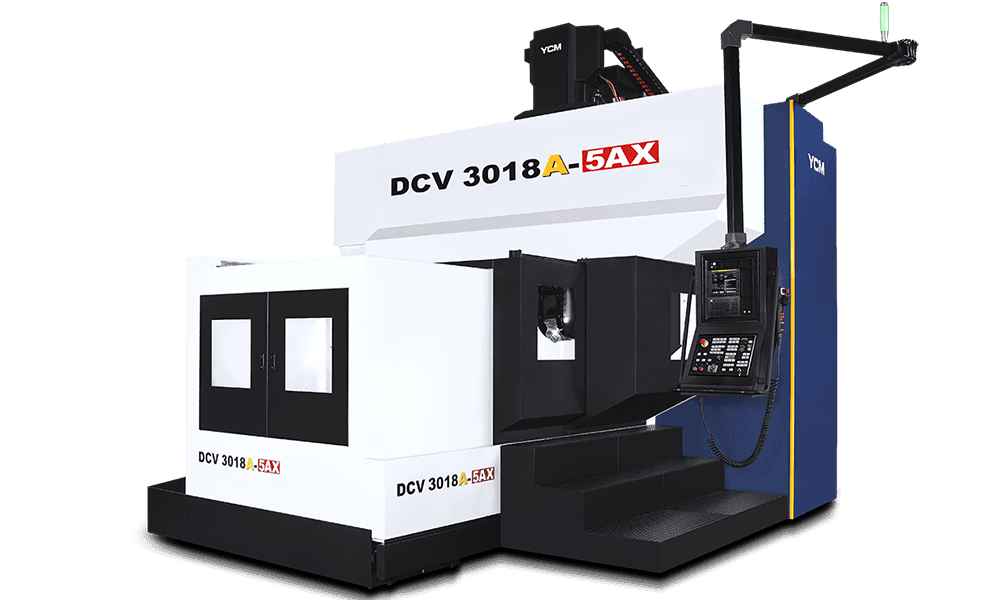

DCV series is assembled through serious quality control process to ensure high dynamic accuracy during contouring operations.
Spindle Speed (Opt.)
18,000 rpm
Spindle Power (Opt.)
70 kW
Spindle Taper (Opt.)
HSK A63
X-axis Travel
3,200 mm
Y-axis Travel
2,400 mm
Z-axis Travel (Opt.)
762(1,016) mm
Distance Between Spindle Nose & Table Top
30" Vertical: 150-912 Horizontal: 430-1192 40" Vertical: 150-1116 Horizontal: 430-1446 (mm)
Distance Between Columns
1,800 mm
Table Size
3,000 x 1,500 mm
No. T-slot x Size x Pitch
8×22×180 mm
Max. Load on Table
10,000 kg
X/Y/Z Rapid Feedrate
20/24/20 m/min
Cutting Feedrate
1~20,000 mm/min
Tool Magazine Capacity (Opt.)
40(60/120) T
Tool Weight
6 kg/pc
Max. Tool Dimension (W/O Adjacent Tools)
ø 76 x 300(ø125 x 300) mm
Machine Weight
32,000 kg
