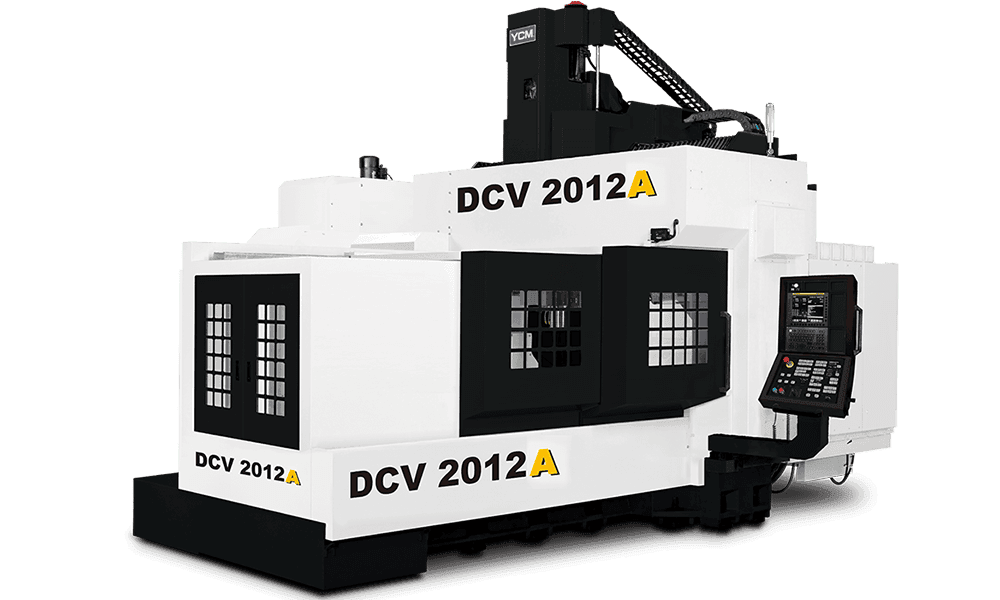

DCV2012A is equipped with YCM made built-in motorised spindle delivering 20,000rpm high speed. The ultra smooth movement achieves various machining results.
Spindle Speed (Opt.)
20,000 rpm
Spindle Power (Opt.)
22 kW
Spindle Taper (Opt.)
BBT40
X-axis Travel
2000 mm
Y-axis Travel
1200 mm
Z-axis Travel (Opt.)
600 mm
Distance Between Spindle Nose & Table Top
100~700 mm
Distance Between Columns
1,340 mm
Table Size
2,000 x 1,100 mm
No. T-slot x Size x Pitch
7 x 22 x 150 mm
Max. Load on Table
4,000 kg
X/Y/Z Rapid Feedrate
24/24/15 m/min
Cutting Feedrate
1~10,000 mm/min
Tool Magazine Capacity (Opt.)
24 (30) T
Tool Weight
6 kg/pc
Max. Tool Dimension (W/O Adjacent Tools)
24T : ø80x 250(ø125 x 250) 30T : ø76 x 250(ø125 x 250) mm
Machine Weight
16,000 kg
