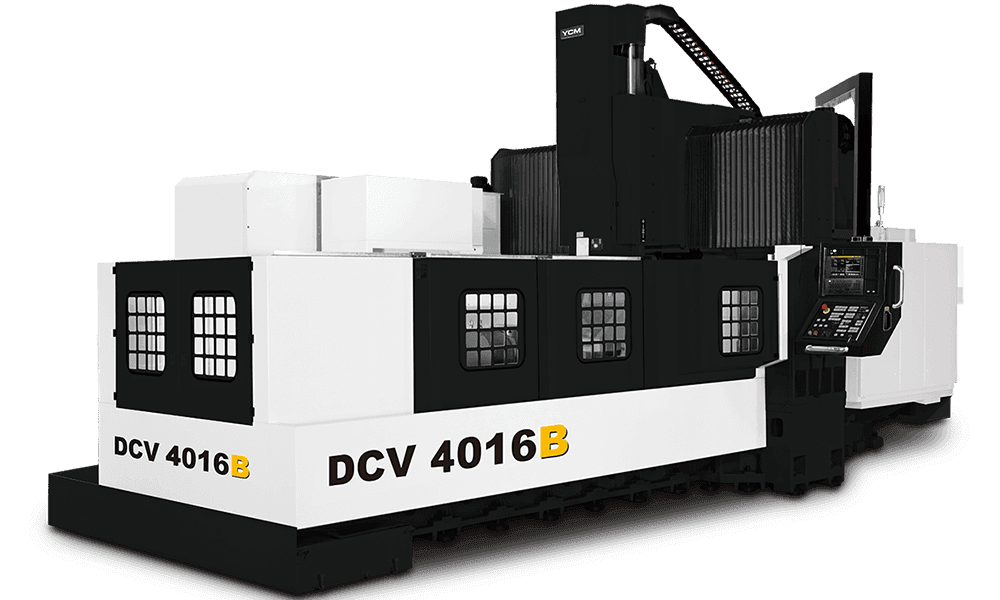

YCM keeps building up the in-house ability and seriously examines the workflow for upgrading DCV series to the limit. DCV series is exactly the ultimate double column vertical machining centre combining flawless accuracy, rigidity, and power.
Spindle Speed (Opt.)
4,500 (6,000/10,000) rpm
Spindle Power (Opt.)
25(25/45) kW
Spindle Taper (Opt.)
BBT50
X-axis Travel
4,065 mm
Y-axis Travel
1,600 mm
Z-axis Travel (Opt.)
762 (1,016) mm
Distance Between Spindle Nose & Table Top
200~962 (450~1,212 [Raised Column 250] / 200~1,216 [Z-axis Travel 1,016] ) (mm)
Distance Between Columns
1,820 mm
Table Size
4,260 x 1,500 mm
No. T-slot x Size x Pitch
9 x 22 x 150 mm
Max. Load on Table
12,000 kg
X/Y/Z Rapid Feedrate
15/15/15 m/min
Cutting Feedrate
1~10,000 mm/min
Tool Magazine Capacity (Opt.)
40 (60/120) T
Tool Weight
20 kg/pc
Max. Tool Dimension (W/O Adjacent Tools)
ø125 x 350 ( ø240 x 350 ) mm
Machine Weight
35,000 kg
