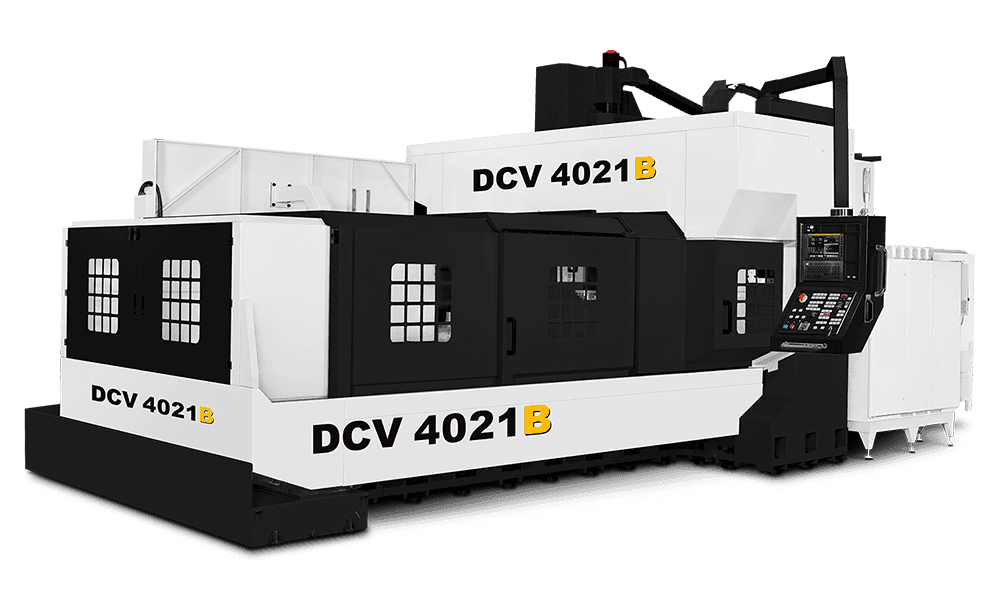

DCV series is assembled through serious quality control process to ensure high dynamic accuracy during contouring operations.
Spindle Speed (Opt.)
4,500 (6,000/10,000) rpm
Spindle Power (Opt.)
25/25/45 kW
Spindle Taper (Opt.)
BBT50
X-axis Travel
4,065 mm
Y-axis Travel
2,100 mm
Z-axis Travel (Opt.)
762 (1,016) mm
Distance Between Spindle Nose & Table Top
200~962 (450~1,212 [Raised Column 250] / 200~1,216 [ Z-axis Travel 1,016]) (mm)
Distance Between Columns
2,320 mm
Table Size
4,100 x 2,000 mm
No. T-slot x Size x Pitch
9 x 28 x 200 mm
Max. Load on Table
20,000 kg
X/Y/Z Rapid Feedrate
12/15/15 m/min
Cutting Feedrate
1~10,000 mm/min
Tool Magazine Capacity (Opt.)
40 (60/120) T
Tool Weight
20 kg/pc
Max. Tool Dimension (W/O Adjacent Tools)
ø125 x 350 ( ø240 x 350 ) mm
Machine Weight
46,000 kg
