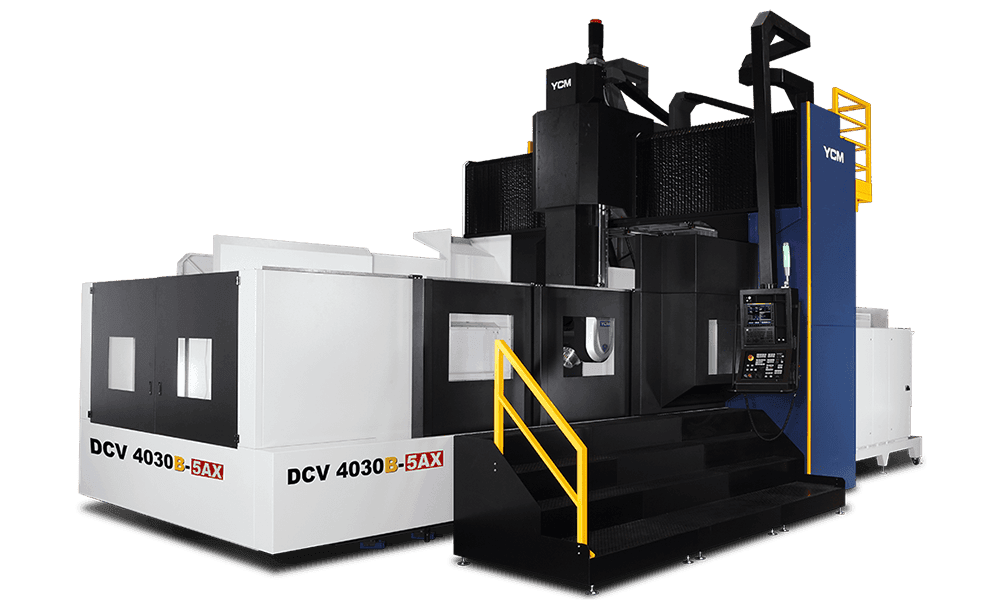

Equipped with ROBO I, YCM-made high performance universal milling head, DCV4030B-5AX is specialised for applications demanding complex machining such as aerospace, automotive, medical and energy industries.
Spindle Speed (Opt.)
10,000 rpm
Spindle Power (Opt.)
46 kW
Spindle Taper (Opt.)
HSK A100
X-axis Travel
4,065 mm
Y-axis Travel
3,500 mm
Z-axis Travel (Opt.)
1,016 mm
Distance Between Spindle Nose & Table Top
Vertical：270-1286 Horizontal：650-1666 (mm)
Distance Between Columns
3,100 mm
Table Size
4,100 x 2,400 mm
No. T-slot x Size x Pitch
11 x 28 x 200 mm
Max. Load on Table
20,000 kg
X/Y/Z Rapid Feedrate
20/20/15 m/min
Cutting Feedrate
1~15,000/1~15,000/1~10,000 mm/min
Tool Magazine Capacity (Opt.)
40 (60/120) T
Tool Weight
13 kg/pc
Max. Tool Dimension (W/O Adjacent Tools)
ø125 x 350 (ø240 x 350) mm
Machine Weight
58,000 kg
