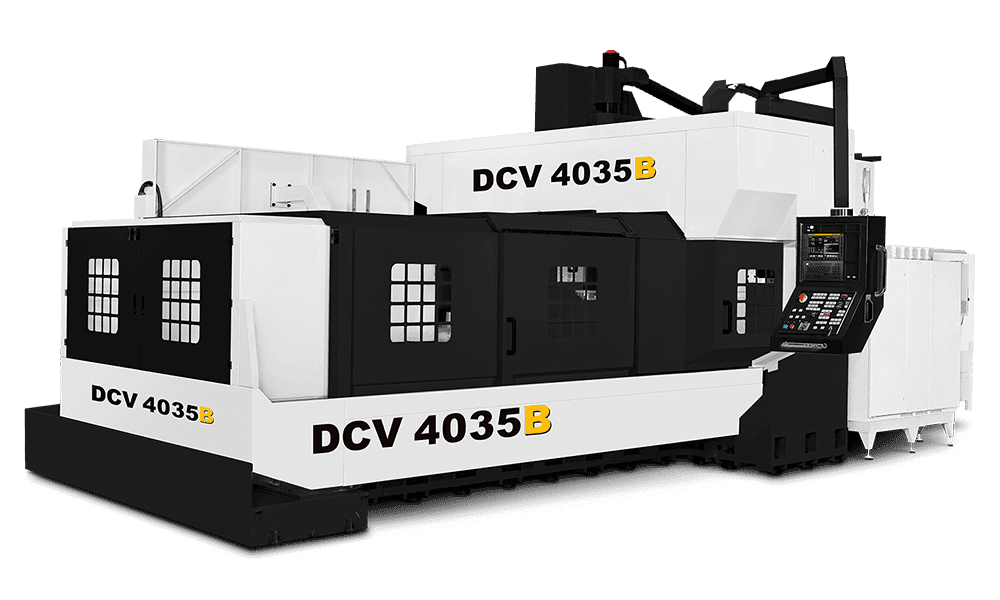

DCV series flawless accuracy, rigidity, and power are suitable for diverse requirements from automative, die & mold, energy and aerospace industries.
Spindle Speed (Opt.)
10,000 rpm
Spindle Power (Opt.)
22 kW
Spindle Taper (Opt.)
BBT50
X-axis Travel
4,065 mm
Y-axis Travel
3,500 mm
Z-axis Travel (Opt.)
762 (1,016) mm
Distance Between Spindle Nose & Table Top
200~962 (450~1,212 [ Raised Column 250] / 200~1,216 [ Z-axis Travel 1,016] ) (mm)
Distance Between Columns
3,600 mm
Table Size
4,100 x 2,400 mm
No. T-slot x Size x Pitch
11 x 28 x 200 mm
Max. Load on Table
20,000 kg
X/Y/Z Rapid Feedrate
12/15/15 m/min
Cutting Feedrate
1~10,000 mm/min
Tool Magazine Capacity (Opt.)
40 (60/120) T
Tool Weight
20 kg/pc
Max. Tool Dimension (W/O Adjacent Tools)
ø125 x 350 (ø240 x 350) mm
Machine Weight
55,000 kg
