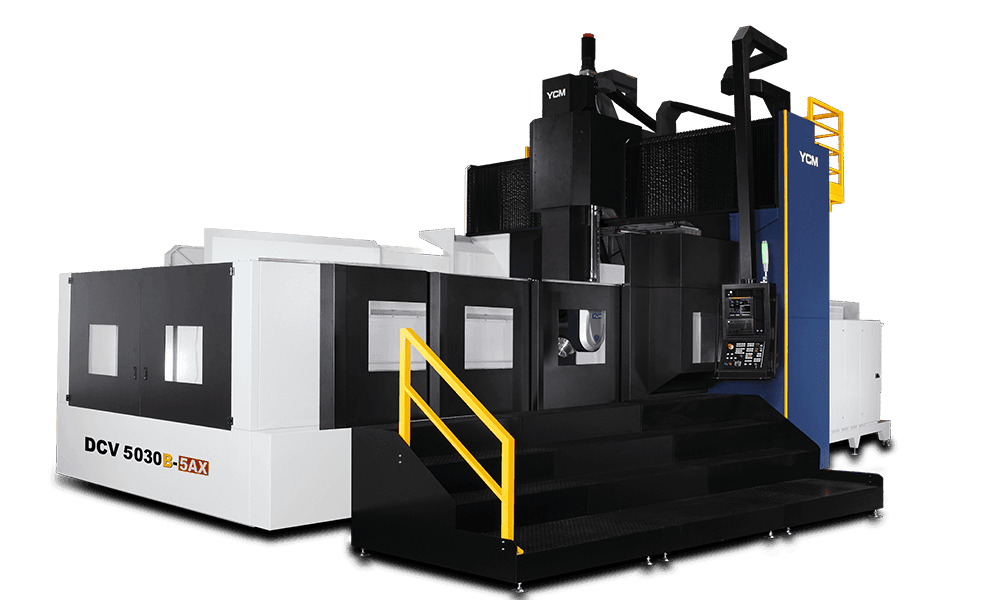

DCV series flawless accuracy, rigidity, and power are suitable for diverse requirements from automative, die & mold, energy and aerospace industries.
Spindle Speed (Opt.)
10,000 rpm
Spindle Power (Opt.)
46 kW
Spindle Taper (Opt.)
HSK A100
X-axis Travel
5,200 mm
Y-axis Travel
3,500 mm
Z-axis Travel (Opt.)
1,016 mm
Distance Between Spindle Nose & Table Top
Vertical: 270~1286 Horizontal：650~1666 (mm)
Distance Between Columns
3,100 mm
Table Size
5,000 x 2,400 mm
No. T-slot x Size x Pitch
11×28×200 mm
Max. Load on Table
23,000 kg
X/Y/Z Rapid Feedrate
12/20/15 m/min
Cutting Feedrate
1~12,000/1~15,000/1~10,000 mm/min
Tool Magazine Capacity (Opt.)
40(60/120) T
Tool Weight
13 kg/pc
Max. Tool Dimension (W/O Adjacent Tools)
ø125 x 350 (ø240 x 350) mm
Machine Weight
61,000 kg
