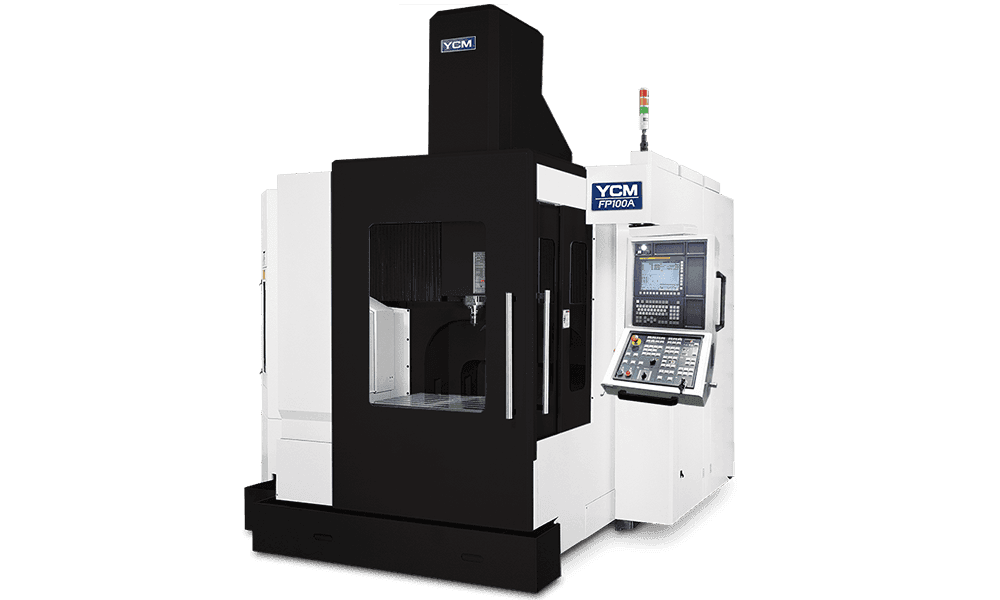

The gantry machine frame of rigid dual wall castings ensures low vibration performance in high speed machining, and results in the utmost surface finishing on works, and better tool service life.
Spindle Speed (Opt.)
16,000 (20,000) rpm
Spindle Power (Opt.)
37 (22) kW
Spindle Taper (Opt.)
BBT40
X-axis Travel
1,020 mm
Y-axis Travel
710 mm
Z-axis Travel (Opt.)
460 mm
Distance Between Spindle Nose & Table Top
150~610 mm
Distance Between Columns
1,320 mm
Table Size
1,200 x 700 mm
No. T-slot x Size x Pitch
6 x 18 x 100 mm
Max. Load on Table
1,000 kg
X/Y/Z Rapid Feedrate
20/20/20 m/min
Cutting Feedrate
1~20,000 mm/min
Tool Magazine Capacity (Opt.)
24 T
Tool Weight
6 kg/pc
Max. Tool Dimension (W/O Adjacent Tools)
ø75 x 250 (ø150 x 250 ) mm
Machine Weight
12,000 kg
