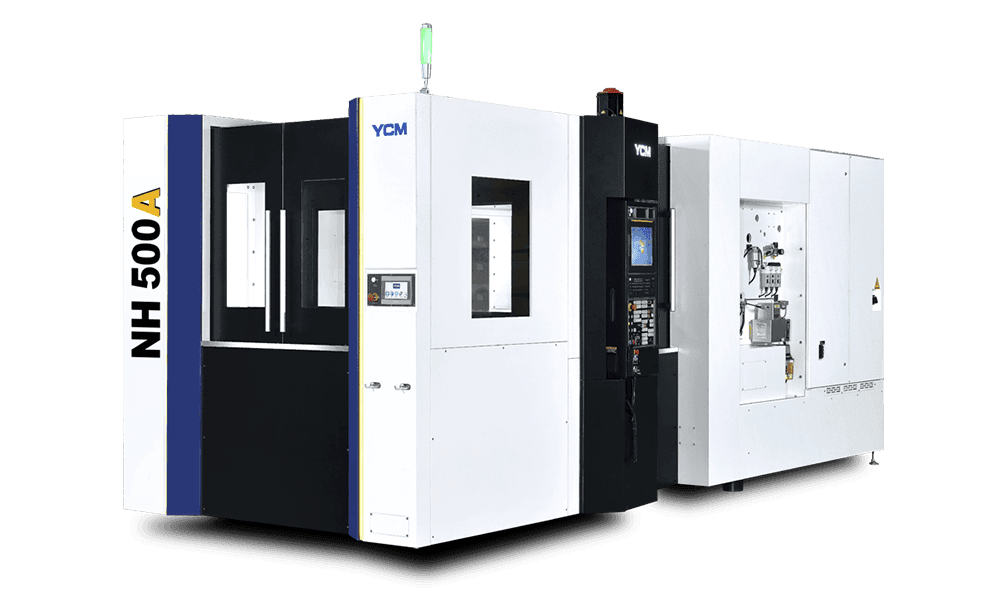

NH500A Horizontal Machining Centres

NH500A
  • One piece T-type base structure with rib construction for unprecedented rigidity.
  • Dual-wall column design for enhancing rigidity and durability.
  • Adopted FEM analysis for lightweight design to improve G value that can prolong ballscrew life and reduce energy consumption.
  • Stepped Design on X-axis
  • All Roller Type Guideways
  • Powerful IDD Spindle
  • High Performance Built-in Motorized Spindle (opt.)
Request a Quote

YCM NH 500A off ers high efficiency and high precision in multi-faceted machining and hole drilling. With jig / fixture tower, it centralises loading and unloading procedure, and also allows multiple workpieces machining that significantly shortens processing time.

NH 500A is well-suited for “mass production” of automotive parts such as transmission box parts, cylinder head, valve parts and pump components.

Technical Data

Spindle Speed (Opt.)

15,000 rpm

Spindle Power (Opt.)

37kW

Spindle Taper (Opt.)

BBT40

X-axis Travel

800 mm

Y-axis Travel

730 mm

Z-axis Travel

800 mm

Distance Between Spindle Center and Table Top

50~780 mm

Distance Between Spindle Nose and Table Center

150~950 mm

Table Size

500 x 500 mm

Max. Load on Table

500 kg

Max. Work Dimensions

Ø880 x 1000

Height from Table Top to Floor

1,174 mm

APC Time

11 sec mm

X/Y/Z Rapid Feedrate

60/60/60 m/min

Cutting Feedrate

1~40,000 mm/min

Tool Magazine Capacity (Opt.)

60(120) T

Tool Weight

10 kg/pc

Max. Tool Dimension (W/O Adjacent Tools)

Ø80x400(Ø160x400) mm

Machine Weight

13,490~14,390 kg

Video

Control Options
