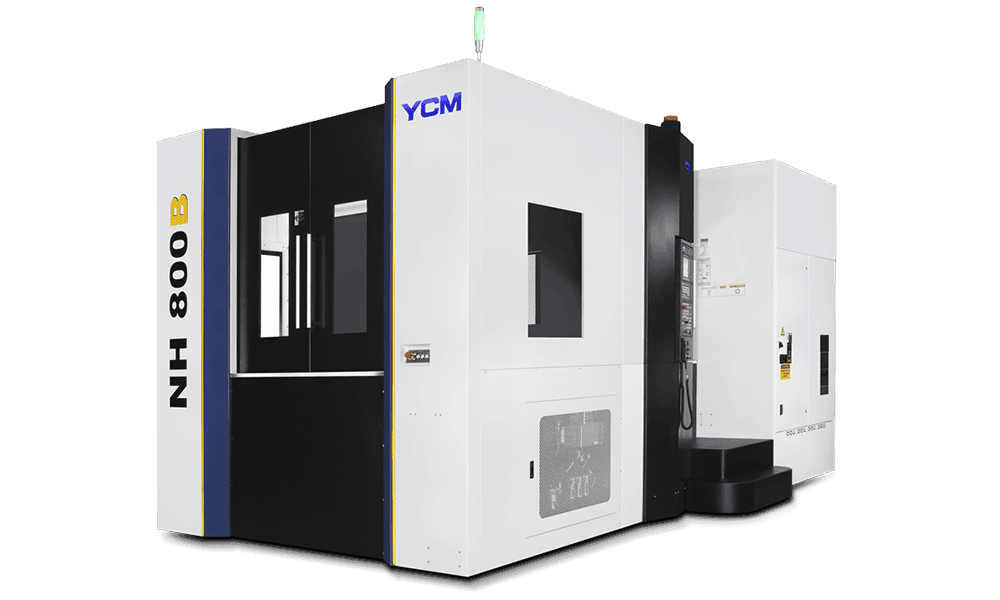

NH800B Horizontal Machining Centres

NH800B
  • Reliable Automatic Tool Change
  • Servo motor driven tool magazine shortens tool search time.
  • Short tool change arm with low moment of inertia design.
  • Central Chip Disposal System
  • High Rigidity Structural Design
  • High Rigidity Roller Guideways
  • Y-axis Dual Drive System
  • High Performance Built-in Motorized Spindle
  • Automatic Pallet Change
Request a Quote

Introducing the brand new NH 800B High Precision Horizontal Machining Centre. The NH 800B incorporates the state-of-the-art dual drive technology along with the utmost rigid structural design to satisfy high accuracy applications. The machine can perform multiface machining applications to reduce fixture clamping and machining time. The NH 800B is specially designed to meet high precision and high performance machining demands.

Technical Data

Spindle Speed (Opt.)

10,000 (8,000) rpm

Spindle Power (Opt.)

45 (55) kW

Spindle Taper (Opt.)

BBT50 (CAT)

X-axis Travel

1,300 mm

Y-axis Travel

1,100 mm

Z-axis Travel

1,100 mm

Distance Between Spindle Center and Table Top

100~1,200 mm

Distance Between Spindle Nose and Table Center

170~1,270 mm

Table Size

800 x 800 mm

Max. Load on Table

2,000 kg

Max. Work Dimensions

ø1,300 x 1,300 mm

Height from Table Top to Floor

1,400 mm

Table Indexing Angle (Opt.)

1° (0.001°)

X/Y/Z Rapid Feedrate

50/50/50(40/40/40) m/min

Cutting Feedrate

1~25,000 mm/min

Tool Magazine Capacity (Opt.)

40 ( 60 / 120 ) T

Tool Weight

25 kg/pc

Max. Tool Dimension (W/O Adjacent Tools)

ø125 x 600 (ø250 x 600) mm

Machine Weight

26,000~28,500 kg
