FV102A-APC

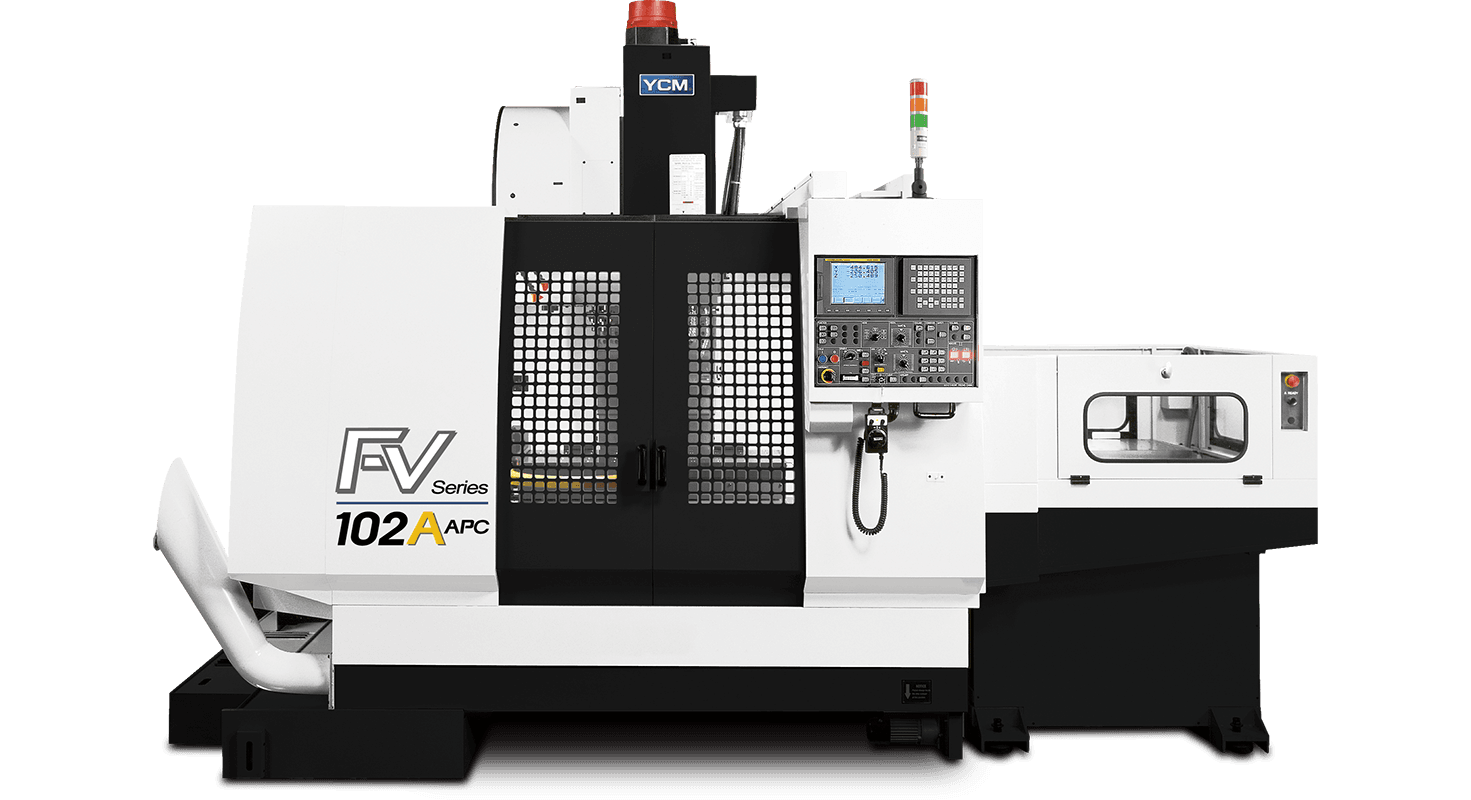

FV 102A APC
  • Tough and durable MEEHANITE castings deliver exceptional cutting stability and consistent accuracy - the massive, rigid internally ribbed construction reduces damping effect for superb part finishing.
  • The extra wide column base and machine base maximize the cutting rigidity, and enhance machine stability during heavy-duty machining.
  • Hardened & ground ballscrews are precisely pre-tensioned at both ends, supported by angular contact thrust bearings, and directly coupled with high responsive AC servomotors of backlash-free for outstanding positioning repeatability and accuracy during long machining cycles
  • All axes utilize the newly developed NR type linear motion guide ways from THK of its superior rigidity, low friction, low noise, thus to assure much smoother movement in high-speed traverse.
  • All linear motion guide ways are mounted on the very fi ne surface for maximum surface contact and exceptional cutting rigidity and stability.
Request a Quote

High-Speed, High-Power Vertical Machining Centres are specially designed for industries that demand high precision, high productivity application such as automotive, aerospace, electronic, and job shop industries.

Technical Data

Spindle Speed (Opt.)

10,000 (12,000) rpm

Spindle Power (Opt.)

15 kW

Spindle Taper (Opt.)

BBT40

X-axis Travel

1,020 mm

Y-axis Travel

520 mm

Z-axis Travel

540 mm

Distance Between Spindle Nose & Table Top

350~570(280~820) mm

Table Size

1,000 x 480 mm

Max. Load on Table

400 kg

X/Y/Z Rapid Feedrate

24/24/24 m/min.

Cutting Feedrate

1~10,000 mm/min.

Tool Magazine Capacity (Opt.)

24 (30) T

Tool Weight

6 kg/pc

Max. Tool Dimension (W/O Adjacent Tools)

24T : ø90 x 300 (ø140 x 300) 30T : ø76 x 300 (ø125 x 300) mm

Machine Weight

6,360 kg

View FV102A-APC Datasheet Request a Quote
