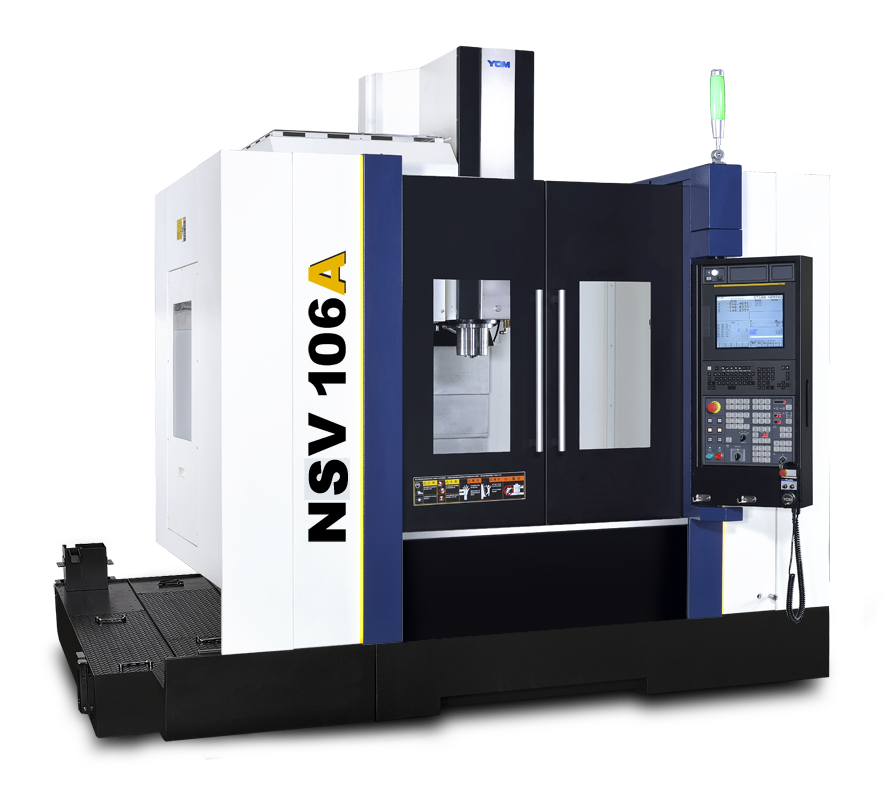

NSV 106A vertical machining centre is specially designed for high speed and high efficiency machining applications. NSV 106A is built with a large delta machine column and wide base to ensure the highest stability during high speed movement.
Spindle Speed (Opt.)
12,000 (15,000) rpm
Spindle Power (Opt.)
18.5 kW
Spindle Taper (Opt.)
BBT40
X-axis Travel
1,020 mm
Y-axis Travel
600 mm
Z-axis Travel
600 mm
Distance Between Spindle Nose & Table Top
100~700 mm
Table Size
1,120 x 650 mm
No. T-slot x Size x Pitch
6 x 18 x 100 mm
Max. Load on Table
700 kg
X/Y/Z Rapid Feedrate
48 / 48 / 32 m/min.
Cutting Feedrate
1~20,000 mm/min.
Tool Magazine Capacity (Opt.)
24 (30/48) T
Tool Weight
6 kg/pc
Max. Tool Dimension (W/O Adjacent Tools)
ø76 x 300 ( ø125 x 300 ) mm
Machine Weight
7,000 kg
