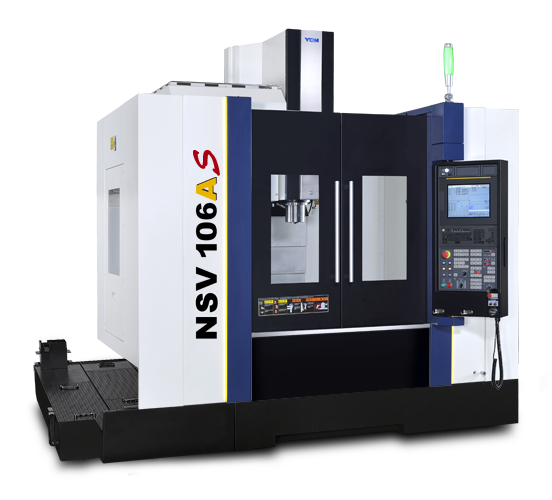

NSV 106AS vertical machining centre is specially designed for high speed and high efficiency machining applications. NSV 106AS is built with a large delta machine column and wide base to ensure the highest stability during high speed movement.
Spindle Speed (Opt.)
15,000 rpm
Spindle Power (Opt.)
37 kW
Spindle Taper (Opt.)
BBT40
X-axis Travel
1,020 mm
Y-axis Travel
600 mm
Z-axis Travel
600 mm
Distance Between Spindle Nose & Table Top
100~700 mm
Table Size
1,120 x 650 mm
No. T-slot x Size x Pitch
6 x 18 x 100 mm
Max. Load on Table
700 kg
X/Y/Z Rapid Feedrate
48 / 48 / 48 m/min.
Cutting Feedrate
1~20,000 mm/min.
Tool Magazine Capacity (Opt.)
30 (48) T
Tool Weight
6 kg/pc
Max. Tool Dimension (W/O Adjacent Tools)
ø76 x 300 ( ø125 x 300 ) mm
Machine Weight
7,000 kg
