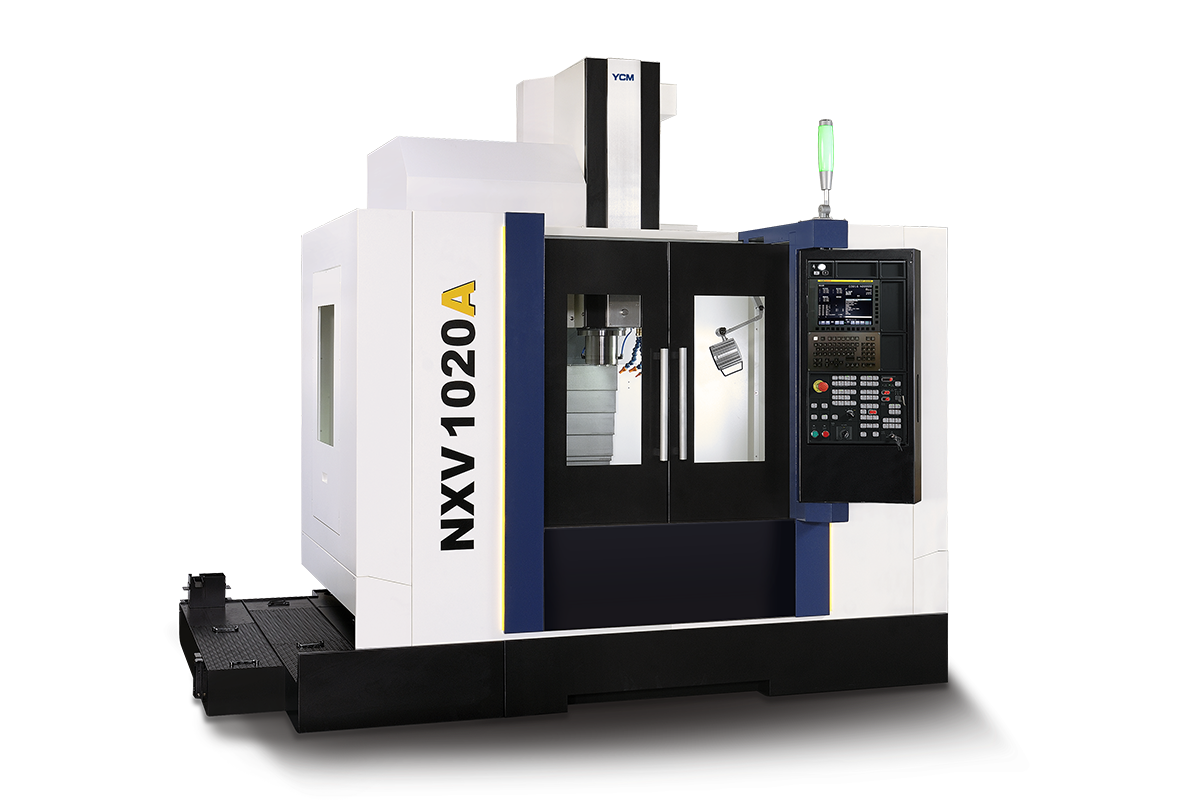

NXV1020A High Performance Vertical Machining Centre

NXV1020A
  • Tool unclamping cushion extends spindle bearing life by protecting spindle bearing from tool unclamping force.
  • Spindle cooling system (opt.) removes heat efficiently and minimizes thermal deformation.
  • Ceramic bearings features low inertia mass, low centrifugal force, high rigidity and low coefficient of thermal deformation.
  • High precision helical springs features high dynamic balance and low vibration.
  • Grease lubrication for 12,000 rpm spindle as a standard
  • Oil-air lubrication for 12,000 / 15,000 rpm spindle (opt.)
Request a Quote

The brand new NXV series offers excellent cost performance with high precision and economical price. NXV1020A incorporates the features of high speed and high rigidity Satisfying diverse machining requirements of automotive job shops and electronics industries.

Technical Data

Spindle Speed (Opt.)

12,000 (15,000)rpm

Spindle Power (Opt.)

18.5 (18.5)kW

Spindle Taper (Opt.)

BBT40

X-axis Travel

1,020mm

Y-axis Travel

520mm

Z-axis Travel

540mm

Distance Between Spindle Nose & Table Top

140~680mm

Table Size

1,120 x 520mm

No. T-slot x Size x Pitch

5 x 18 x100mm

Max. Load on Table

500kg

X/Y/Z Rapid Feedrate

48/48/32 m/min.

Cutting Feedrate

1~20,000 mm/min.

Tool Magazine Capacity (Opt.)

24 (30/40)T

Tool Weight

6 kg/pc

Max. Tool Dimension (W/O Adjacent Tools)

24T : ø90 x 300 (ø140 x 300) 30T/40T : ø76 x 300 (ø125 x 300) mm

Machine Weight

5,350kg

NXV Series Datasheet Request a Quote
