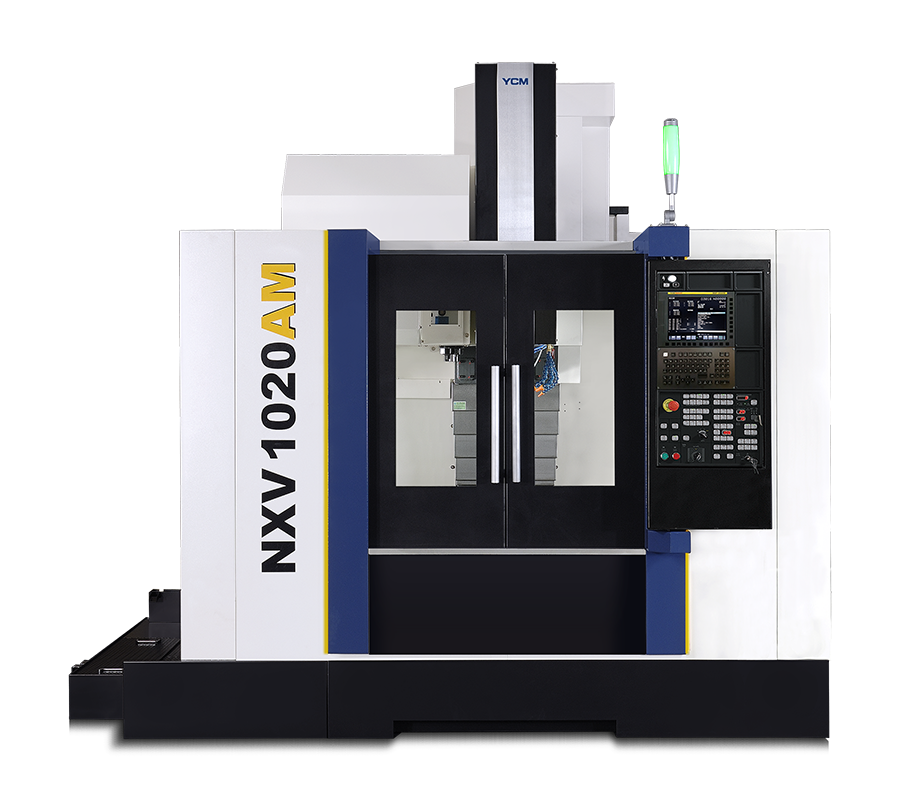

NXV1020AM High Performance Vertical Machining Centre

NXV1020AM
  • Tool unclamping cushion extends spindle bearing life by protecting spindle bearing from tool unclamping force.
  • Spindle cooling system as a standard to remove heat efficiently and minimizes thermal deformation.
  • Ceramic bearings feature low inertia mass, low centrifugal force, high rigidity and low coefficient of thermal deformation.
  • High precision helical springs feature high dynamic balance and low vibration.
  • Oil-air lubrication for 12,000 rpm spindle as a standard.
  • Oil-air lubrication for 15,000 rpm spindle (opt.)
Request a Quote

The brand new NXV series offers excellent cost performance with high precision and economical price. The high precision NXV1020AM meets your demands for die & mold machining of automotive, mechanic and electronic industries.

Technical Data

Spindle Speed (Opt.)

12,000 (15,000) rpm

Spindle Power (Opt.)

18.5 (18.5) kW

Spindle Taper (Opt.)

BBT40

X-axis Travel

1,020 mm

Y-axis Travel

520 mm

Z-axis Travel

540 mm

Distance Between Spindle Nose & Table Top

140~680 mm

Table Size

1,120 x 520 mm

No. T-slot x Size x Pitch

5 x 18 x100 mm

Max. Load on Table

500 kg

X/Y/Z Rapid Feedrate

24/24/16 m/min.

Cutting Feedrate

1~20,000/1~20,000/1~16,000 mm/min.

Tool Magazine Capacity (Opt.)

24 (30/40) T

Tool Weight

6 kg/pc

Max. Tool Dimension (W/O Adjacent Tools)

24T : ø90 x 300 (ø140 x 300) 30T/40T : ø76 x 300 (ø125 x 300) mm

Machine Weight

5,350 kg

NXV Series Datasheet Request a Quote
