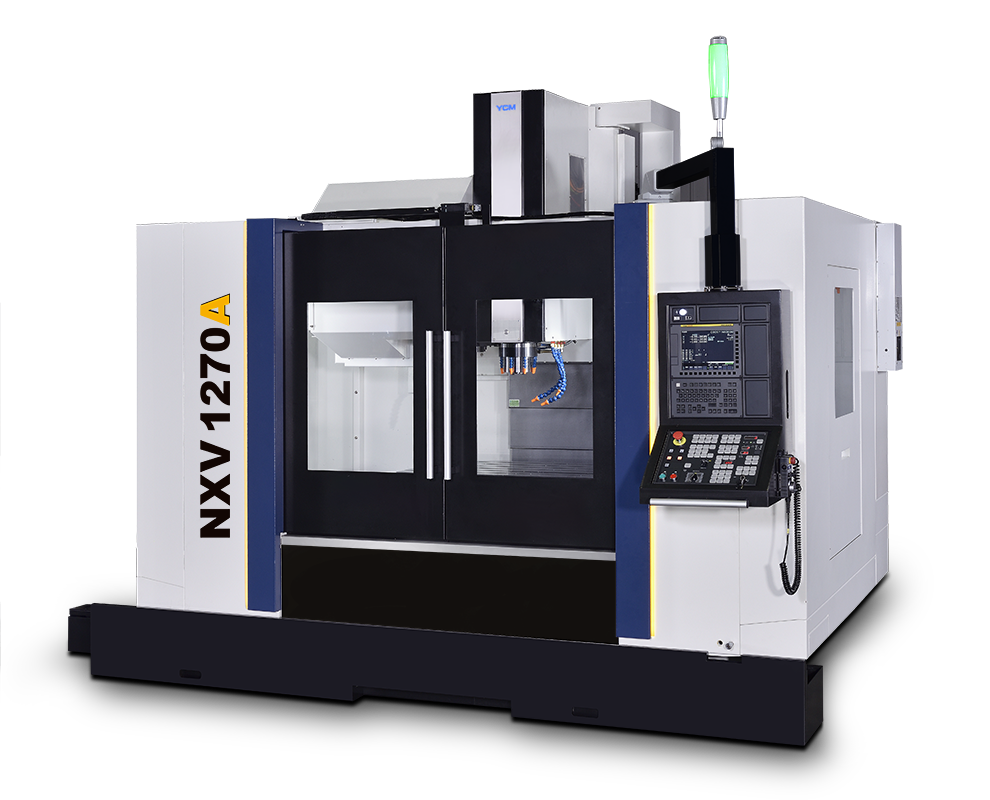

NXV1270A

NXV1270A
  • High Performance YCM In-house Designed IDD Spindle.
  • Robust roller linear guideways applied on 3 axes.
  • 6 blocks design on X-axis can easily support workpieces weighing up to 1,500 kg.
  • 4-linear guideways on Y-axis with superior large span ensures the best dynamic balance.
  • Rigid dual-wall castings on saddle
  • Wide base structure with 10 leveling pads.
  • The compact structure enables excellent floor space utilisation
  • Penta-Chip Auger with 45° Pipe ensure fluent chip removal prevent chips from piling up.
Request a Quote

NXV1270A with extra-long Y-axis travel opens up new possibilities, applicable for automotive, aerospace, mechanical, electronics and various materials of sheet industries. Its optimised design has a compact footprint while still offering the largest work envelope in its class.

Technical Data

Spindle Speed (Opt.)

12,000 ( 15,000 ) rpm

Spindle Power (Opt.)

18.5 ( 18.5 ) kW

Spindle Taper (Opt.)

BBT40

X-axis Travel

1,270 mm

Y-axis Travel

660 mm

Z-axis Travel

620 mm

Distance Between Spindle Nose & Table Top

70 x 690 (320 x 940 ) mm

Table Size

1,350 x 660 mm

No. T-slot x Size x Pitch

6 x 18 x 100 mm

Max. Load on Table

1500 kg

X/Y/Z Rapid Feedrate

36/36/30 m/min.

Cutting Feedrate

1~20,000 mm/min.

Tool Magazine Capacity (Opt.)

24 (30/48/60) T

Tool Weight

6 kg/pc

Max. Tool Dimension (W/O Adjacent Tools)

24T : ø90 x 300 (ø140 x 300) 30T/48T/60T : ø76 x 300 (ø125 x 300) mm

Machine Weight

8,600 kg

NXV Series Datasheet Request a Quote
