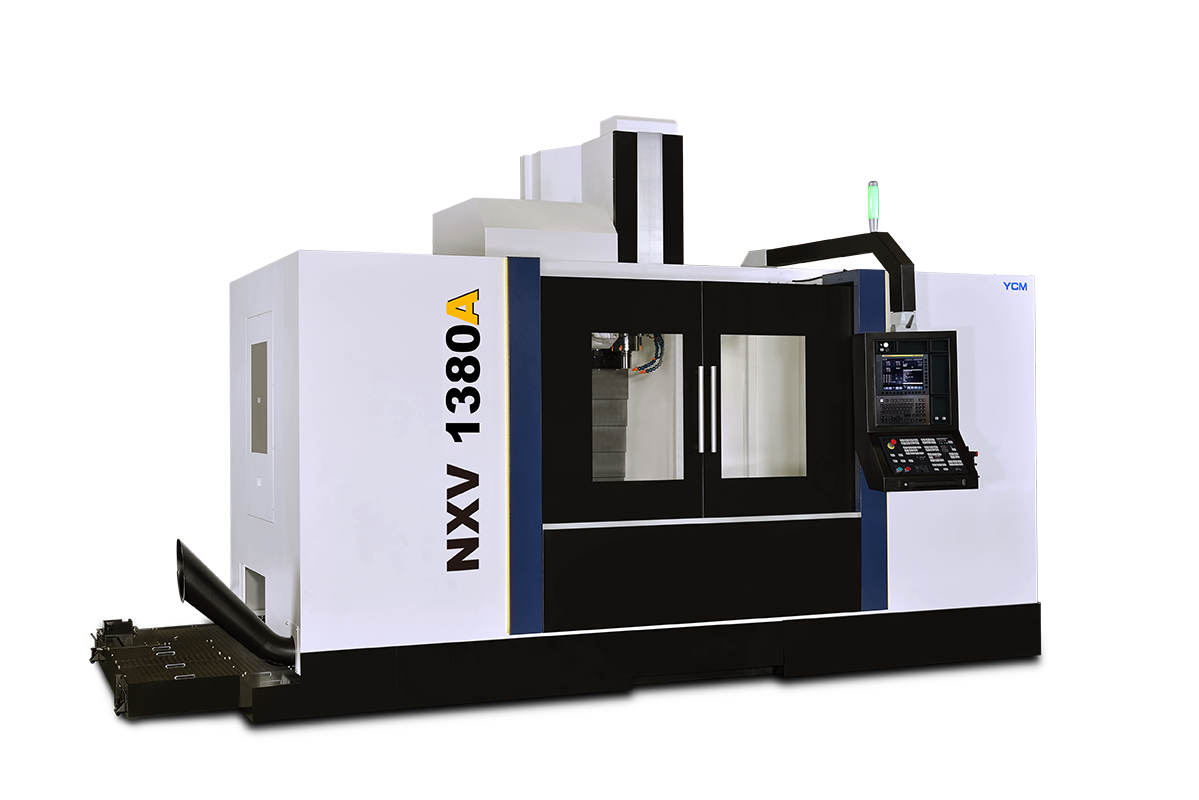

NXV1380A High Rigidity vertical machining centre

NXV1380A
  • 6 slide blocks on X-axis supporting 1,500 maximum load on table.
  • 4 linear guideways on Y-axis providing best dynamic balance.
  • Dual wall structure saddle providing high rigidity.
  • High rigidity and high loading roller type linear guideways applied on the three axes.
  • Penta chip augers (4 Y-axial +1 X-axial) ensure fluent chip removal prevent chips from piling up.
  • Pretension ballscrews applied on the three axes increase axial rigidity providing less thermal deformation.
  • Wide base structure with 10 leveling pads.
Request a Quote

The NXV 1380A high rigidity vertical machining centre offers extended travels at an affordable price. It is most suitable for automotive applications.

The NXV 1380A provides high speed high precision and extreme rigidity with excellent cost performance.

Technical Data

Spindle Speed (Opt.)

12,000 (12,000/15,000) rpm

Spindle Power (Opt.)

18.5 (18.5/37) kW

Spindle Taper (Opt.)

BBT40

X-axis Travel

1,330 mm

Y-axis Travel

762 mm

Z-axis Travel

700 mm

Distance Between Spindle Nose & Table Top

100~800 mm

Table Size

1,430 x 760 mm

No. T-slot x Size x Pitch

7 x 18 x 100 mm

Max. Load on Table

1,500 kg

X/Y/Z Rapid Feedrate

30 /30 /24 m/min.

Cutting Feedrate

1~20,000 mm/min.

Tool Magazine Capacity (Opt.)

24 ( 30 / 48 / 60 ) T

Tool Weight

6 kg/pc

Max. Tool Dimension (W/O Adjacent Tools)

24T : ø90 x 300 (ø140 x 300) 30T/48T/60T : ø76 x 300 (ø125 x 300) mm

Machine Weight

10,500 kg

NXV Series Datasheet Request a Quote
