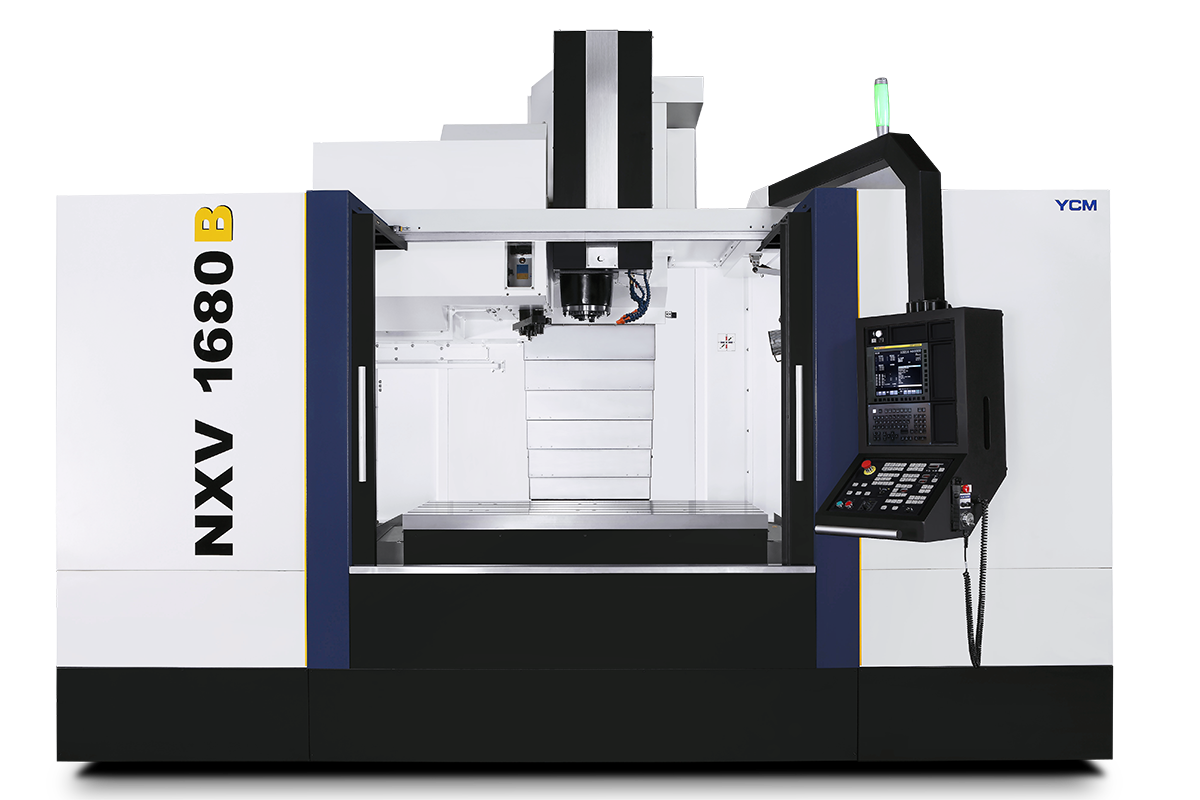

NXV1680B High Rigidity vertical machining centre

NXV1680B
  • Standard gearhead spindle of maximum of 6,000 rpm high-speed with the maximum of 18.5 kW 25 HP power output and 48 kgf-m 347.19 lb-ft torque.
  • Spindle speed of up to 10,000 rpm with IDD (Isolated Direct Drive) design, coupled with oil lubrication that can lower heat deviation, improve spindle accuracy and extend bearing life. Spindle power 22 kW 30 HP without gearbox, electric speed shift with spindle motor, maximum torque of 36 kgf-m 260.39 lb-ft. (option)
  • The quill type spindle housing is with cooling system to assure the best temperature control of the spindle head, and for the best machining results.
  • Deployed with precise angular contact ceramic ball bearings for extra axial and radial rigidity to fit the requirements of heavy cutting.
Request a Quote

The NXV 1680B high rigidity vertical machining centre offers extended travels at an affordable price. It is most suitable for automotive and aerospace applications.

Technical Data

Spindle Speed (Opt.)

6,000(10,000) rpm

Spindle Power (Opt.)

18.5(45) kW

Spindle Taper (Opt.)

BT50 ( BBT50)

X-axis Travel

1,630 mm

Y-axis Travel

860 mm

Z-axis Travel

762 mm

Distance Between Spindle Nose & Table Top

200~962 mm

Table Size

1,730 x 860 mm

No. T-slot x Size x Pitch

5 x 22 x 150 mm

Max. Load on Table

2,000 kg

X/Y/Z Rapid Feedrate

24/24/24 m/min.

Cutting Feedrate

1~10,000 mm/min.

Tool Magazine Capacity (Opt.)

32(24 / 40) T

Tool Weight

20 kg/pc

Max. Tool Dimension (W/O Adjacent Tools)

24T : ø110x 350 (ø190 x 350) 32T / 40T:ø120 x 350 (ø240 x 350) mm

Machine Weight

16,500 kg

NXV Series Datasheet Request a Quote
