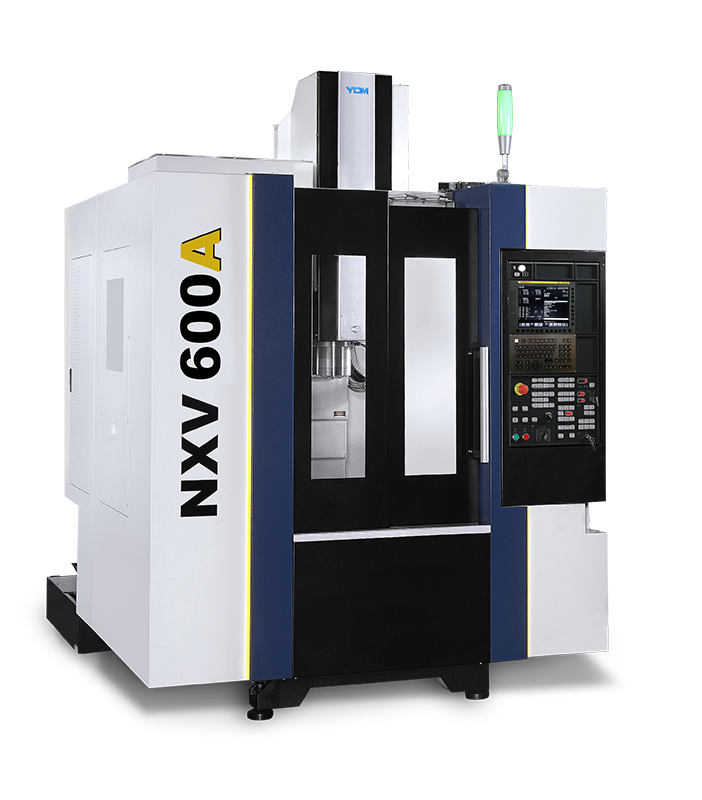

NXV600A

NXV600A
  • Tool unclamping cushion extends spindle bearing life by protecting spindle bearing from tool unclamping force.
  • Spindle cooling system (opt.) removes heat efficiently and minimizes thermal deformation.
  • Ceramic bearings features low inertia mass, low centrifugal force, high rigidity and low coefficient of thermal deformation.
  • High precision helical springs features high dynamic balance and low vibration.
  • Grease lubrication for 12,000 rpm spindle ; Oil-air lubrication for 15,000 rpm spindle (opt.).
Request a Quote

The NXV 600A high speed high power vertical machining centre is specially designed for precision manufacturing and high productivity machining industries such as auto parts, high precision aerospace and electronic industries.

Technical Data

Spindle Speed (Opt.)

12,000(15,000)rpm

Spindle Power (Opt.)

18.5(18.5)kW

Spindle Taper (Opt.)

BBT40

X-axis Travel

600mm

Y-axis Travel

410mm

Z-axis Travel

450mm

Distance Between Spindle Nose & Table Top

110~560mm

Table Size

700×420mm

No. T-slot x Size x Pitch

3×14×100mm

Max. Load on Table

300kg

X/Y/Z Rapid Feedrate

8/48/48m/min.

Cutting Feedrate

1~20,000mm/min.

Tool Magazine Capacity (Opt.)

24T

Tool Weight

6kg/pc

Max. Tool Dimension (W/O Adjacent Tools)

ø76 x 250(ø125 x 250)mm

Machine Weight

3,000kg

NXV Series Datasheet Request a Quote
